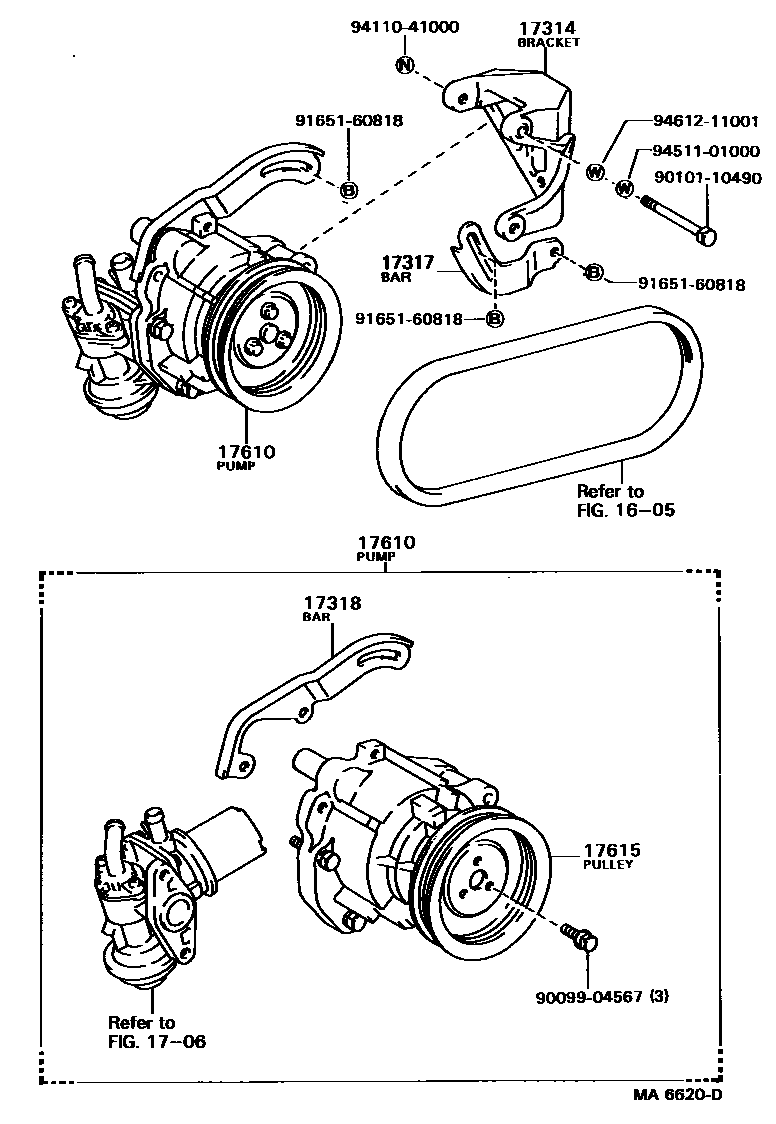

AIR PUMP

1605

1706

17314BRACKET, AIR PUMP

main17314-74010i2SC..ST141198304-198612

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-74010i2SC..ST141198304-198612

17318BAR, AIR PUMP ADJUSTING, NO.2

main17318-74010i2SC..ST141198304-198612

17610PUMP ASSY, AIR

main17600-74010i2SC..ST141198304-198612

17615PULLEY(FOR AIR PUMP)

main17615-74010i2SC..ST141198304-198612

9009904567

main90099-04567

9010110490

main90101-10490

9165160818

main91651-60818

9411041000

main94110-41000

9451101000

main94511-01000

9461211001

main94612-11001

13 parts on this diagram · 1 diagram in section
