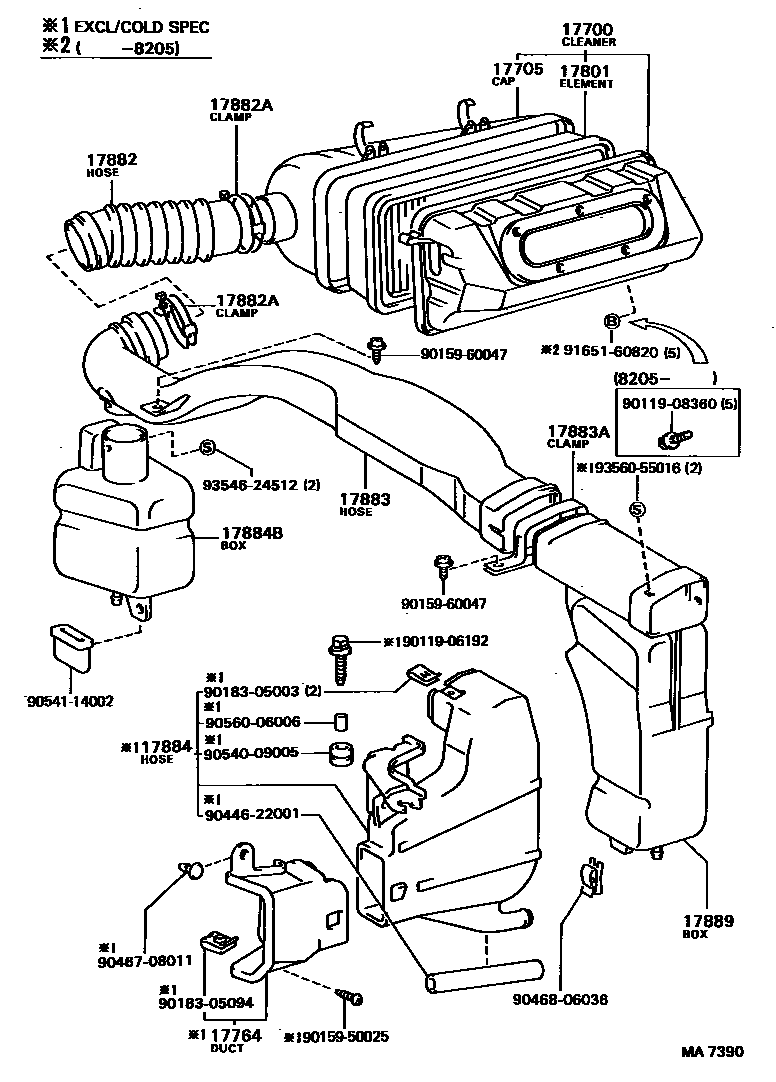

AIR CLEANER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

17700CLEANER ASSY, AIR

main17700-26290i2T,3T..TT14#198201-198508

main17700-26300i2T..TT140..SED..RHD..4F..STD198201-198412

W/HOT AIR INTAKE

main17700-31262i12RM..RT140198206-198312

main17700-35250i22REC..RT142198408-198508

main17700-35260i22REC..RT142198508-198612

main17700-64010i2C..CT141198601-199907

main17700-64020i1C..CT140198201-198312

sub17700-64010

main17700-72060i2Y..YT140198612-199907

main17700-72140i2Y..YT140198612-199907

W/HOT AIR INTAKE

main17700-74020i2SC..ST141198304-198508

main17700-74060i2S..ST141198508-198612

17705CAP SUB-ASSY, AIR CLEANER

main17705-26080i2T,3T..TT14#198201-198508

main17705-31033i12RM..RT140198206-198312

main17705-35120i22REC..RT142198408-198612

main17705-64010i2C..CT141198201-199907

main17705-71020i2Y..YT140198612-199211

sub17705-73080

main17705-73080i2Y..YT140199211-199907

main17705-74020i2S#..ST141198304-198612

17764DUCT, AIR CLEANER

main53299-14020i1C..CT140198201-199907

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i2T,3T..TT14#198201-198508

main17801-31080i2T..TT140;3T..TT141..RHD;3T..TT141..3FC..ME;3T..TT141..LHD..MTM198201-198508

DUST AREA

sub17801-25010

main17801-34060i2S#..ST141198304-198612

main17801-34070i2Y..YT140198612-199907

sub17801-34060

main17801-41110i22REC..RT142198408-198612

main17801-64010i2C..CT141198601-199907

main17801-64020i1C..CT140198201-198312

sub17801-64010

17882HOSE, AIR CLEANER, NO.2

main17880-72010i2Y..YT140198612-199907

main17881-14020i2T,3T..TT14#198201-198508

main17881-14050i1C..CT140198201-199907

main17882-14030i2SC..ST141198304-198612

main17882-35030i22REC..RT142198408-198612

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i2T,3T..TT14#198201-198508

AIR CLEANER SIDE

main90460-01016i2Y..YT140198612-199907

sub90460-01055

main90460-01018i2Y..YT140198612-199907

main90460-01019i2T,3T..TT14#198201-198508

HOSE SIDE

main90460-01024i2SC..ST141198304-198612

main90460-65001i2C..CT141198201-199907

HOSE NO.3 SIDE

main96111-10600i1C..CT140198201-199907

AIR CLEANER SIDE

main96111-10730i2Y..YT140198612-199907

17883HOSE, AIR CLEANER, NO.3

main17881-72040i2Y..YT140198612-199907

W/PRECLEANER

main17882-14010i2T,3T..TT14#198201-198508

main17882-14020i1C..CT140198201-199907

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main17891-14010i1C..CT140198201-199907

main90460-01018i2T,3T..TT14#198201-198612

main90460-01024i2Y..YT140198612-199907

W/PRECLEANER

main96111-10600i2Y..YT140198612-199907

W/PRECLEANER

17884HOSE, AIR CLEANER, NO.4

main17883-14031i1C..CT140198201-199907

17884BBOX, AIR CLEANER, NO.1

main17884-14010i1C..CT140198201-199907

17889BOX, AIR CLEANER HOSE, NO.2

main17889-14010i1C..CT140198201-199907

main17889-14020i2C..CT141198201-198703

COLD SPEC

main17889-14020i2C..CT141198703-199907

BATTERY=NX120 & L/PRECLEANER

9011906192

main90119-06192

9011908360

main90119-08360

9015950025

main90159-50025

9015960047

main90159-60047

9018305003

main90183-05003

9018305094

main90183-05094

9044622001

main90446-22001

9046708011

main90467-08011

9046806036

main90468-06036

9054009005

main90540-09005

9054114002

main90541-14002

9056006006

main90560-06006

9165160820

main91651-60820

9354624512

main93546-24512

9356055016

main93560-55016

26 parts on this diagram · 10 diagrams in section
