V-BELT

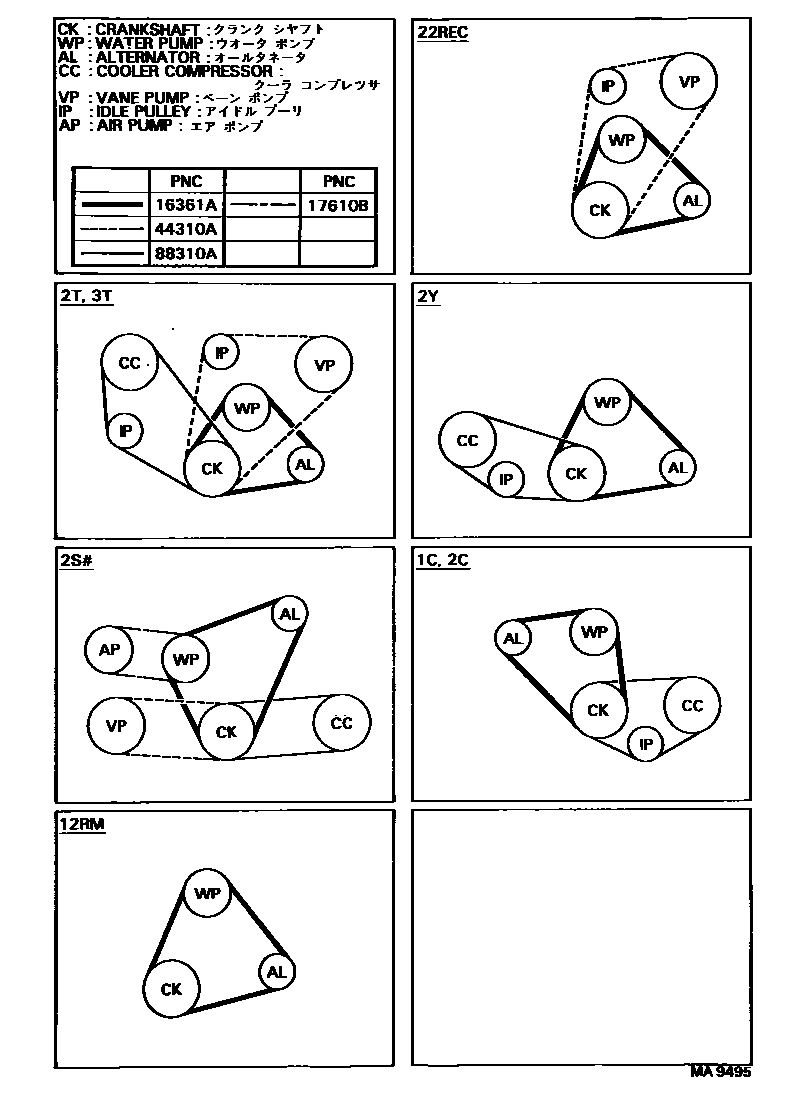

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02123i198206-199907
main99321-00885i198201-198508
main99331-10870i198408-198612
L=870
main99332-00900i198206-198312
L=900
main99332-60975i198201-198206
sub90916-02123
main99363-01150i198304-198612
sub99363-31150
main99364-20830i199011-199907
MITSUBOSHI
main99364-50830i198612-199011
sub99364-80830
main99364-70830i199011-199402
BANDO
sub99364-80830
main99364-80830i199402-199907
BANDO
17610BBELT, V(FOR AIR PUMP)
main99363-50640i198304-198612
44310ABELT, V(FOR VANE PUMP)
main99332-01080i198212-198412
main99332-51120i198408-198612
main99363-50760i198304-198612
sub99363-80760
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99322-00960i198612-199907
L=960
main99322-50830i198201-199907
main99322-50940i198201-198508
main99364-50810i198508-198612
sub99364-80810

4 parts on this diagram · 1 diagram in section
