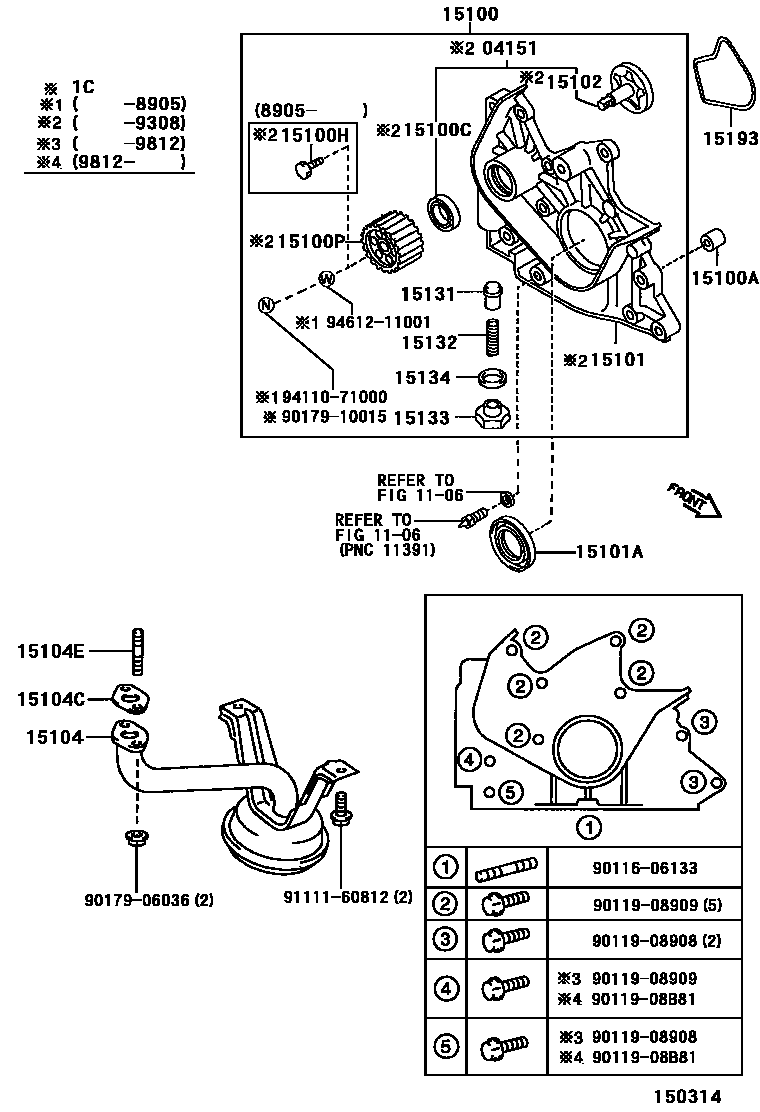

ENGINE OIL PUMP

0001 1 0003 1 0004 1 0005 1MA3764D,MA3356A 0006 1

04151ROTOR KIT, OIL PUMP

main04175-64020i2C..CT141198905-199308

sub04175-64021

1106

15100PUMP ASSY, OIL

main15100-26020i2T,3T..TT14#198201-198508

main15100-31040i12RM..RT140198206-198312

main15100-35020i22REC..RT142198408-198612

main15100-63010i2S#..ST141198304-198612

main15100-64010i1C..CT140198201-198207

sub15100-64011

sub15193-64021

main15100-64011i1C..CT140198207-198312

sub15100-64012

main15100-64020i2C..CT141198601-198808

sub15100-64021

main15100-64021i2C..CT141198808-198905

sub15100-64040

main15100-64040i2C..CT141198905-199812

sub15100-64041

sub90119-08B81

main15100-64041i2C..CT141199812-199907

sub15100-64042

main15100-71010i2Y..YT140198612-199907

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i1C..CT140198201-199907

15100CSEAL(FOR OIL PUMP)

main15165-64010i1C..CT140198201-198312

main15165-70010i2S#..ST141198304-198612

main90029-21007i2C..CT141198601-198905

sub90029-21020

main90029-21014i2C..CT141198905-199204

sub90029-21022

main90029-21022i2C..CT141199204-199308

sub04151-64010

sub04151-64020

15100HBOLT, SEAL

main15189-38020i22REC..RT142198408-198612

main15189-55010i2C..CT141198905-199308

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-63010i2S#..ST141198304-198612

main13524-64010i1C..CT140198201-198905

main13524-64020i2C..CT141198905-199308

15101BODY SUB-ASSY, OIL PUMP

main15101-64010i1C..CT140198201-198207

sub15101-64011

sub15193-64021

main15101-64011i1C..CT140198207-198808

sub15100-64030

sub15100-64040

main15101-64012i2C..CT141198808-198905

sub15100-64030

sub15100-64040

main15101-64030i2C..CT141198905-199907

sub15100-64031

sub15100-64042

sub90119-08B81

15101ASEAL(FOR CRANKSHAFT)

main90311-42003i1C..CT140198201-198612

sub90311-42026

main90311-42015i2C..CT141198601-199010

sub90311-42026

main90311-42026i2C..CT141199010-199401

main90311-42030i2C..CT141199401-199907

sub90311-42031

15102ROTOR SET, OIL PUMP

main15101-31010i12RM..RT140198206-198312

main15102-25010i2T,3T..TT14#198201-198508

main15102-63010i2S#..ST141198304-198612

main15102-64010i1C..CT140198201-198312

main15102-64020i2C..CT141198601-198808

main15102-64021i2C..CT141198808-198905

main15102-64040i2C..CT141198905-199308

sub04151-64020

main15102-71010i2Y..YT140198612-199907

15104STRAINER SUB-ASSY, OIL

main15104-37010i22REC..RT142198408-198612

main15104-63010i2S#..ST141198304-198612

main15104-64010i1C..CT140198201-198312

main15104-64030i2C..CT141198601-199201

sub15104-64050

main15104-64050i2C..CT141199201-199907

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22REC..RT142198408-198612

main15149-64010i1C..CT140198201-198903

sub15149-64030

main15149-64020i2C..CT141198903-198912

sub15149-64030

main15149-64030i2C..CT141198912-199812

sub15149-64070

main15149-64070i2C..CT141199812-199907

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06032i1C..CT140198201-199108

main90116-06132i2C..CT141199108-199907

15131VALVE, OIL PUMP RELIEF

main15131-22010i1C..CT140198201-198508

main15131-24010i12RM..RT140198206-199907

main15131-38030i22REC..RT142198408-198612

main15131-64020i1C..CT140198212-199812

main15131-64041i2C..CT141199812-199907

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i2C..CT141199812-199907

main15132-40010i12RM..RT140198201-199907

main15132-46010i22REC..RT142198408-198612

main15132-64012i2C..CT141198808-199812

main15132-76011i2C..CT141198201-198808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2C..CT141198201-199812

main15133-24010i2Y..YT140198612-199907

main15133-41030i2T,3T..TT14#198201-198508

sub15133-20010

main15133-64041i2C..CT141199812-199907

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1C..CT140198201-199812

main15134-67020i2C..CT141199812-199907

15193GASKET, OIL PUMP

main15193-64020i1C..CT140198201-198207

main15193-64021i2C..CT141198207-199804

sub15193-64022

main15193-64022i2C..CT141199804-199907

main15197-63010i2S#..ST141198304-198609

sub15197-63020

main15197-63020i2S#..ST141198609-198612

sub15197-63021

9011606133

main90116-06133

9011908908

main90119-08908

9011908909

main90119-08909

9011908B81

main90119-08B81

9017906036

main90179-06036

9017910015

main90179-10015

9111160812

main91111-60812

9411071000

main94110-71000

9461211001

main94612-11001

27 parts on this diagram · 5 diagrams in section
