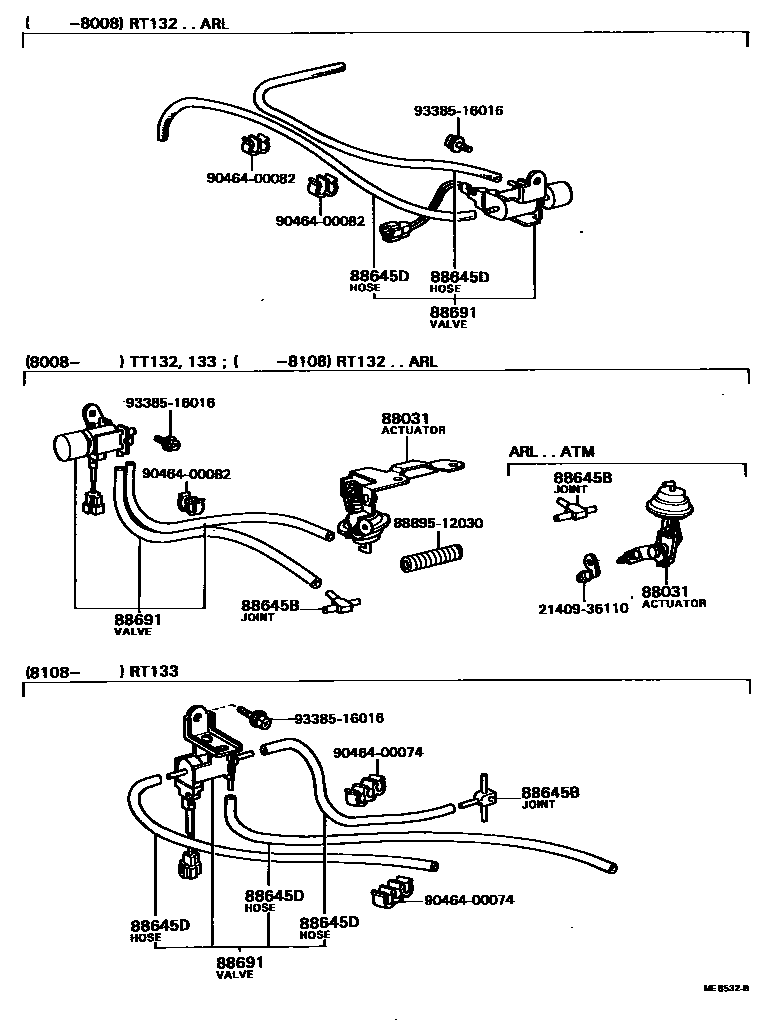

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main21099-36110iRT132..3FC¥5,200198008-198108

main88031-12060iTT13#¥11,400198008-198112

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iTT13#;RT132..3FC¥190198008-198301

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10030iRT133¥530198108-198301

*H,L=260,MARK=#0

sub90999-92002¥460

main95411-10030iRT132..5F¥530197908-198008

*H,L=240,MARK=#0

sub90999-92002¥460

main95411-10030iRT132..3FC¥530198003-198008

*H,L=170,MARK=#0

sub90999-92002¥460

main95411-19930iRT132..ARL¥530197908-198008

*H,L=280,MARK=#*

sub90999-92002¥460

main95411-19960iRT133¥910198108-198301

*H,L=510,MARK=#*

sub90999-92003¥520

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-14370iRT132..3FC198003-198008

main88690-20300iRT132..5F197908-198108

main88690-20400iTT13#198008-198112

main88690-20420iRT133198108-198301

2140936110

main21409-36110

8889512030HOLDER, FUSE

main88895-12030

9046400074

main90464-00074¥120

9046400082

main90464-00082¥100

9338516016

main93385-16016¥80

9 parts on this diagram · 1 diagram in section
