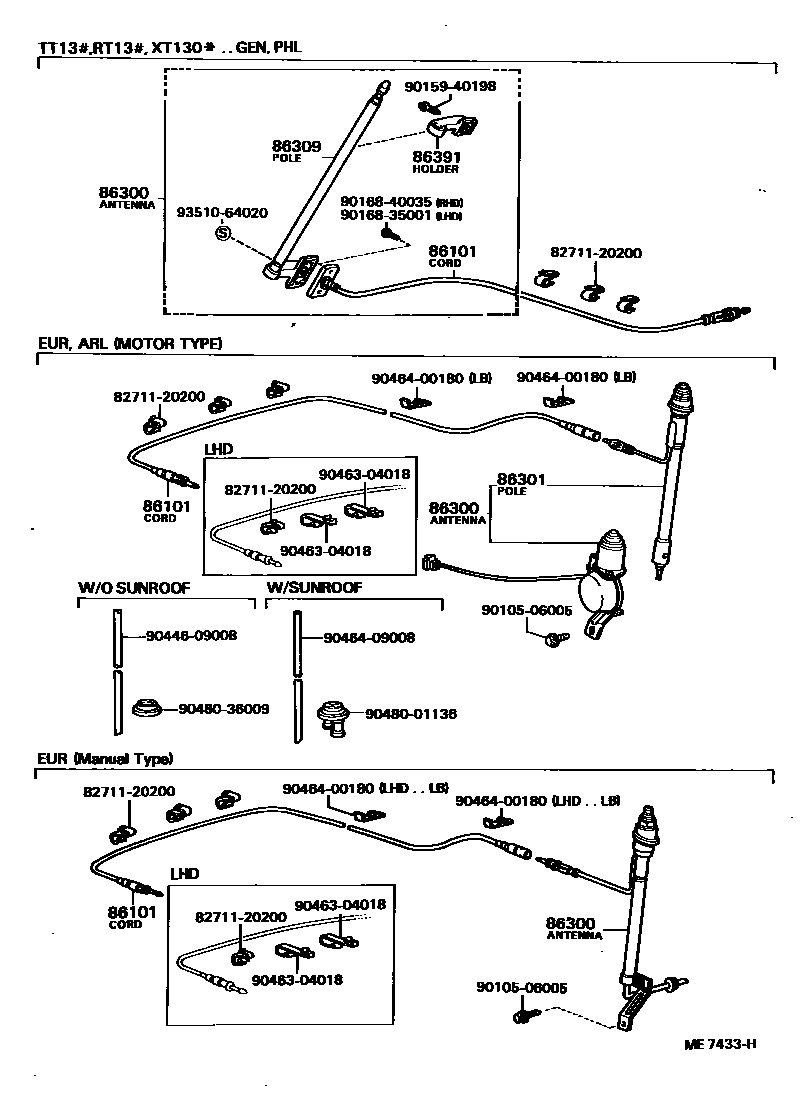

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-20060iRT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)¥1,720197809-198008

main86101-20071iRT132,TT132..RHD..(ARL,EUR)¥6,200197809-198008

sub86101-20072

main86101-20072iRT132,133..GL198008-198112

main86101-20090iTT132..LHD..EUR¥6,500197809-198008

sub86101-20091

main86101-20101iTT132..EUR¥6,500198008-198108

sub86101-20072

main86101-20110iRT130,132,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)198008-198301

86300ANTENNA ASSY, W/HOLDER

main86300-20120iRT13#,TT13#,XT130..RHD..(DLX,STD)..(ARL,GEN)¥3,790197809-198008

sub86300-20130¥3,990

main86300-20130iRT13#,TT13#..LHD..(GEN,PHL)¥3,990197809-198008

main86300-20140iTT132..SED..EUR197809-198008

MOTOR TYPE

main86300-20150iRT132,TT132..LB..(ARL,EUR)¥13,400197809-198008

MOTOR TYPE

main86300-20160iTT132..LB..EUR197809-198008

MANUAL TYPE

main86300-20170iTT132..SED..EUR¥6,100197809-198108

MANUAL TYPE

main86300-20240iTT13#,XT130..RHD¥3,810198008-198301

main86300-20250iRT130,132,TT13#..LHD..(GEN,PHL)¥4,000198008-198205

main86300-20270iRT132,133,TT132..LB..(ARL,EUR)¥14,800198008-198112

MOTOR TYPE

sub86300-20271

main86300-20280iTT132..EUR¥6,300198008-198108

MANUAL TYPE

sub86300-20160

86301POLE SUB-ASSY, ANTENNA

main86301-20140iTT132..SED..EUR197809-198008

MOTOR TYPE

main86301-20150iTT132..LB..EUR197809-198008

MOTOR TYPE

main86301-20270iRT132,133,TT132..LB..(ARL,EUR)198008-198112

MOTOR TYPE

sub86353-14330

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-20030iRT13#,TT13#,XT130..RHD..(DLX,STD)..(ARL,GEN)197809-198008

main86309-20040iRT13#,TT13#..LHD..(GEN,PHL)197809-198008

main86309-20050iTT13#,XT130..RHD198008-198301

main86309-20060iRT130,132,TT13#..LHD..(GEN,PHL)198008-198205

86391HOLDER, ANTENNA

main86391-20070iRT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)197809-198008

main86391-20080iRT130,132,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)¥730198008-198301

8271120200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-20200

9010506005

main90105-06005¥130

9015940198

main90159-40198¥130

9016835001

main90168-35001¥130

9016840035

main90168-40035¥130

9044609008

main90446-09008

9046304018

main90463-04018¥180

9046400180

main90464-00180

9046409008

main90464-09008

9048001136

main90480-01136¥760

9048036009

main90480-36009¥320

9351064020

main93510-64020¥130

17 parts on this diagram · 1 diagram in section
