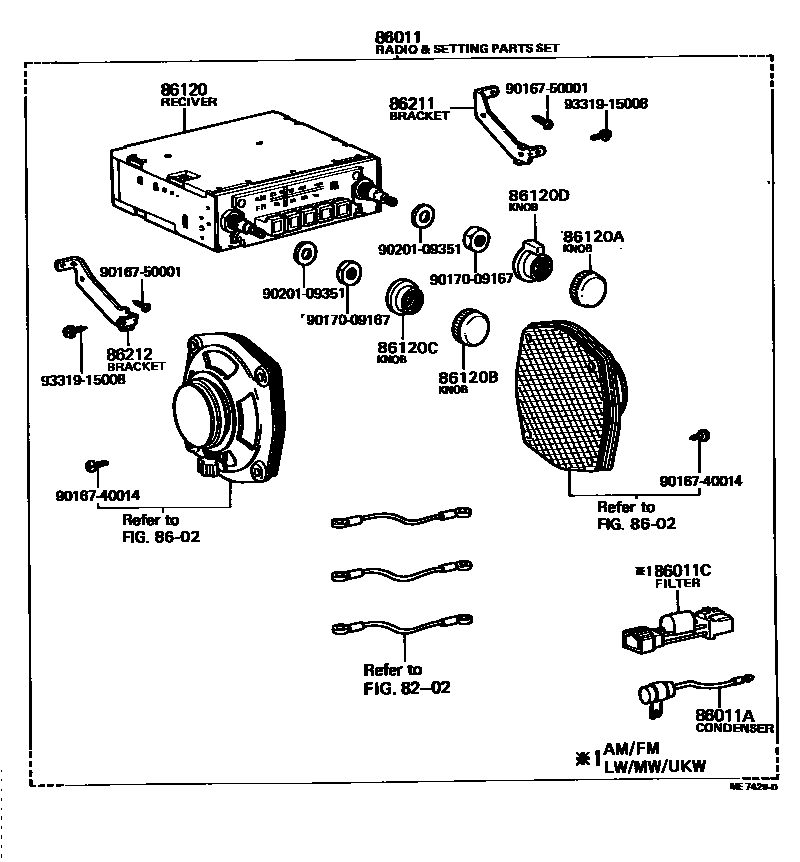

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

8202

86011RADIO & SETTING PARTS SET

main86011-29095iRT13#,TT132..GEN,PHL197809-198008

AM,5-BUTTON

main86011-29125iRT13#,TT132..GEN197809-197910

AM/FM,5-BUTTON

sub86011-29126

main86011-29126iRT132,TT132..GEN197910-198008

AM/FM,5-BUTTON

main86011-29135iRT132..ARL197908-197910

AM/FM,5-BUTTON

sub86011-29136

main86011-29136iRT132..ARL197910-198008

AM/FM,5-BUTTON

main86011-29145iTT132..RHD..EUR197809-198008

LW/MW,5-BUTTON

main86011-29155iTT132..LHD..EUR197809-198008

LW/MW/UKW,5-BUTTON

86011ACONDENSER, RADIO SETTING

main90980-04011iRT13#,TT13#,XT130197809-198008

PLUG CONNECTOR

main90980-04023iRT13#,TT13#,XT130198008-198301

sub90980-04043

86011CFILTER, NOISE

main90980-05052iRT132..ARL197908-198008

AM/FM MULTIPLEX

main90980-05053iRT13#,TT132..GEN197809-198205

AM/FM

main90980-05053iTT132..LHD..EUR197809-198108

LW/MW/UKW

8602

86120RECEIVER ASSY, RADIO

main86120-20200iTT132..RHD..EUR197809-198008

LW/MW,5-BUTTON

main86120-20210iTT132..LHD..EUR197809-198008

LW/MW/UKW,5-BUTTON

main86120-20220iRT13#,TT13#..GEN197809-198008

SW/MW,5-BUTTON

main86120-20230iRT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)197809-198008

AM,5-BUTTON

main86120-20260iRT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN)197809-197910

AM/FM,5-BUTTON

sub86120-20261

main86120-20261iRT132,TT13#,XT130..(DLX,STD)..(ARL,GEN)197910-198008

AM/FM,5-BUTTON

main86120-20300iRT132..ARL197908-198008

AM/FM MULTIPLEX,5-BUTTON

main86120-20370iRT130,132,TT13#..GEN,PHL198008-198205

AM/FM,5-BUTTON

main86120-20420iRT130,TT13#..DLX..(GEN,PHL)198008-198112

AM/FM MALTIPLEX,5-BUTTON

sub86120-22330

main86120-20420iRT132,133..GL198008-198112

AM/FM MULTIPLEX,5-BUTTON

sub86120-22330

main86120-20430iRT130,132,TT13#..EUR,GEN,PHL198008-198205

AM,5-BUTTON

main86120-20440iTT132..EUR198008-198108

LW/MW/FM,5-BUTTON

main86120-20450iRT130,132,TT13#..GEN,PHL198008-198205

SW/MW,5-BUTTON

main86120-22370iRT132..ARL198008-198108

*20

sub86120-22H00

main86120-22430iRT133..GL198108-198112

*20

sub86120-22431

86120AKNOB, RADIO RECEIVER SWITCH

main86125-20060iRT130,132,TT13#..EUR,GEN,PHL197809-198205

main86128-14090iRT133..GL198108-198112

*20

main86128-22010iRT132,133..ARL198008-198301

AM/FM MULTIPLEX,5-BUTTON

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86124-20080iRT132..ARL197908-198008

MULTIPLEX,LH,W/TAPE PLAYER

main86125-20060iXT130;RT13#,TT13#..EUR,GEN,PHL197809-198205

main86125-20060iRT132..ARL197908-198008

MULTIPLEX,LH,W/O TAPE PLAYER

main86128-22090iRT132,133..ARL198008-198301

AM/FM MULTIPLEX,5-BUTTON

main86128-22130iRT133..GL198108-198112

*20

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86124-20070iRT132..ARL197908-198008

MULTIPLEX,LH,W/O TAPE PLAYER

main86124-20090iXT130;RT13#,TT13#..EUR,GEN,PHL197809-198205

LH

86120DKNOB, RADIO RECEIVER TONE

main86124-20060iRT13#,TT13#,XT130197809-198205

RH

86211BRACKET, RADIO, NO.1

main86211-20081iRT132,133..GL198008-198112

AM/FM MULTIPLEX,RADIO

main86211-20081iRT132,133..GL198008-198112

AM/FM MALTIPLEX RADIO

main86211-20090iRT130,132,TT13#..EUR,GEN,PHL198008-198205

main86211-20090iRT13#,TT13#,XT130198007-198008

MATSUSHITA

main86211-20100iRT132..ARL198008-198108

*20

main86211-20101iRT133..GL198108-198112

*20

main86212-20050iRT13#,TT13#,XT130197809-198007

MATSUSHITA

main86212-20060iRT13#,TT13#,XT130197908-198008

TEN

86212BRACKET, RADIO, NO.2

main86211-20060iRT13#,TT13#,XT130197809-198007

MATSUSHITA

main86211-20070iRT13#,TT13#,XT130197908-198008

TEN

main86212-20071iRT132,133..GL198008-198112

AM/FM MALTIPLEX RADIO

main86212-20080iRT130,132,TT13#..EUR,GEN,PHL198008-198205

main86212-20080iRT13#,TT13#,XT130198007-198008

MATSUSHITA

main86212-20090iRT132..ARL198008-198108

*20

main86212-20091iRT133..GL198108-198112

*20

9016740014

main90167-40014

9016750001

main90167-50001

9017009167

main90170-09167

9020109351

main90201-09351

9331915008

main93319-15008

17 parts on this diagram · 4 diagrams in section
