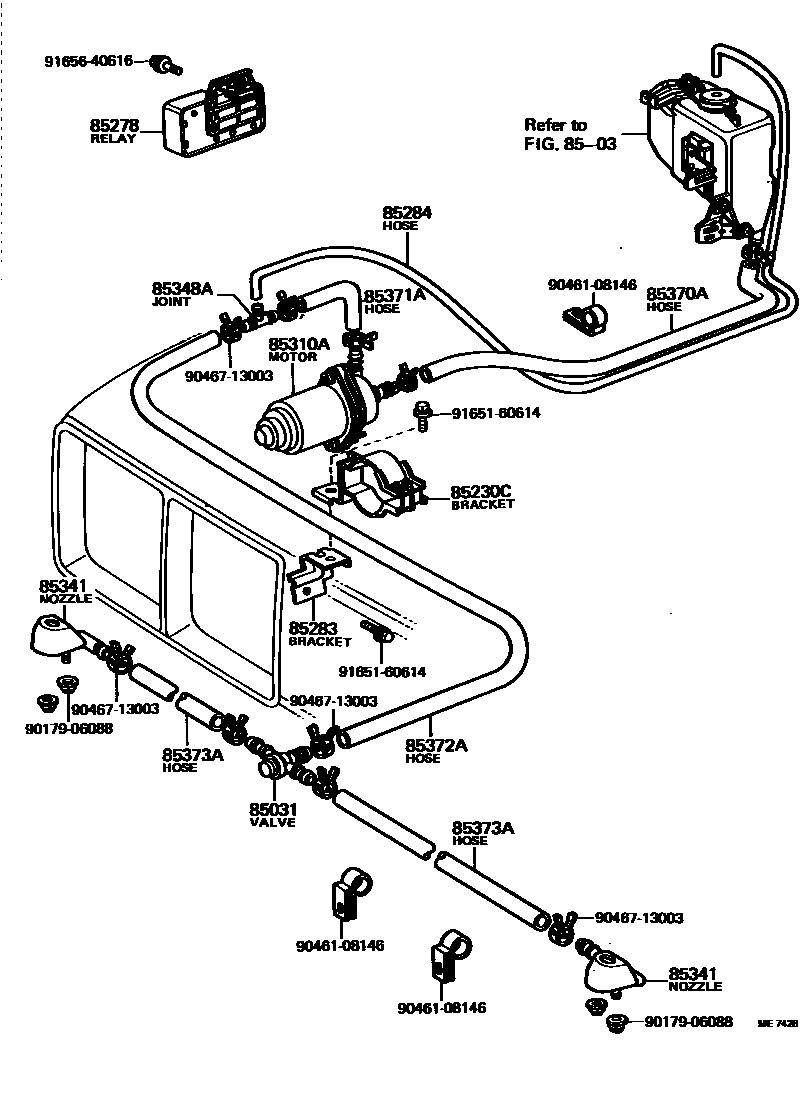

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iTT132..LHD..EUR197809-198008

85230CBRACKET ASSY, HEADLAMP CLEANER

main85361-20130iTT132..LHD..EUR197809-198008

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iTT132..LHD..EUR197809-198008

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-14050iTT132..LHD..EUR197809-198008

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main90446-07004iTT132..LHD..EUR197809-198008

L=1200

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iTT132..LHD..EUR197809-198008

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-20030iTT132..LHD..EUR197809-198008

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-20010iTT132..LHD..EUR197809-198008

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85271-14040iTT132..LHD..EUR197809-198008

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-20020iTT132..LHD..EUR197809-198008

85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)

main90445-14022iTT132..LHD..EUR197809-198008

L=640(*H,L=350)

sub85375-22061

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14037iTT132..LHD..EUR197809-198008

L=1320(*H,L=940)

sub90445-14072

main90445-14039iTT132..LHD..EUR197809-198008

L=220

9017906088

main90179-06088

9046108146

main90461-08146

9046713003

main90467-13003

9165160614

main91651-60614

9165640616

main91656-40616

18 parts on this diagram · 1 diagram in section
