WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82001CABLE, BOND, NO.1

main90980-07031iRT132¥610197809-198112

L=210

main90980-07062iTT13#¥700197809-198112

L=260,ENGINE

main90980-07148iRT133..GL;RT132,TT13#¥540197809-198112

L=260,MISSION

main90980-07149iRT13#,TT13#197809-198205

L=380

main90980-07174iRT133..GL¥590198108-198112

L=320,ENGINE

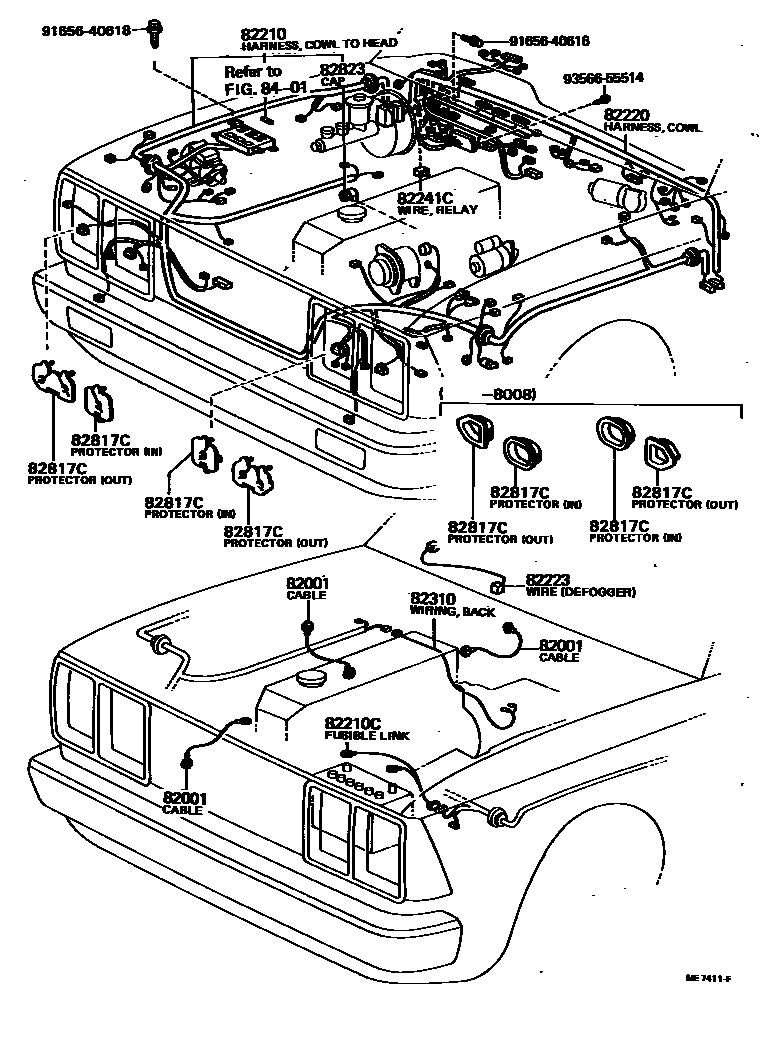

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-21201iRT130..RHD197809-197908

W/*ROU HEADLAMP

main82210-2B051iTT132..RHD..EUR197809-197908

main82210-2B053iTT132..RHD..EUR197908-198008

main82210-2B061iTT132..RHD..GEN197809-197908

main82210-2B062iTT13#..RHD..GEN197908-198008

main82210-2B091iTT132..LHD..EUR197809-197908

main82210-2B092iTT132..LHD..MTM..EUR197908-198008

main82210-2B121iRT13#..(LB,SED)..LHD197809-197908

W/*ROU HEADLAMP

main82210-2B131iRT132..RHD197809-197908

main82210-2B132iRT132..RHD..GEN197908-198008

main82210-2B171iRT132..LHD197809-197908

main82210-2B172iRT132..LHD197908-198008

main82210-2B181iTT132..LHD..GEN197809-197908

main82210-2B182iTT13#..LHD..GEN197908-198008

main82210-2B190iTT132..LHD..EUR197809-197908

COLD SPEC

main82210-2B191iTT132..LHD..3FC..EUR197908-198008

main82210-2B200iRT130..STD..LNK..GEN197809-197908

W/*REC HEADLAMP,THAILAND SPEC

main82210-2B210iRT130..PHL197809-197908

W/*REC HEADLAMP

main82210-2B250iRT132..ARL197908-198008

main82210-2B260iTT133..LHD197908-198008

W/*REC HEADLAMP

main82210-2B360iRT132..GEN198008-198205

main82210-2B390iTT132..EUR198008-198108

main82210-2B400iTT13#..LHD..GEN198008-198112

main82210-2B410iTT13#..RHD198008-198112

main82210-2B460iRT132..ARL198008-198108

main82210-2B461iRT133..GL198108-198112

main82210-2B480iTT13#..LHD..GEN198008-198112

W/*REC HEADLAMP

82210CFUSIBLE LINK

main90982-08080iRT13#,TT13#,XT130¥900197809-198301

82220HARNESS ASSY, WIRING COWL

main82220-20541iRT132,TT133..RHD..GEN197908-198008

main82220-20551iTT132..RHD..GL197809-197908

main82220-20552iTT132..RHD..EUR197908-198008

main82220-20571iRT13#,TT132..LHD..(GEN,PHL)197809-197904

main82220-20572iRT13#,TT132..LHD..(GEN,PHL)197904-197908

main82220-20573iRT13#,TT13#..LHD..(GEN,PHL)197908-198008

main82220-20661iTT132..LHD..EUR197809-197904

main82220-20662iTT132..LHD..EUR197904-197908

main82220-20663iTT132..LHD..EUR197908-198008

main82220-20700iRT132..ARL197908-198008

main82220-20760iTT13#..(LB,SED)..RHD..DLX198008-198112

W/DEGITAL CLOCK

main82220-20770iTT132..DLX..EUR198008-198108

main82220-20800iRT130,132,TT13#..LHD..(GEN,PHL)198008-198205

main82220-20810iTT132..GL198008-198108

main82220-20820iRT132..ARL198008-198108

main82220-20821iRT133..GL198108-198112

main82220-20830iTT13#..RHD198008-198112

main82220-20850iTT13#..(LB,SED)..LHD..DLX..GEN198008-198112

W/DEGITAL CLOCK

main82220-21031iRT13#,TT132..RHD..(DLX,STD)197809-197908

main82220-21032iTT132..RHD..GEN¥56,500197908-198008

sub82220-21042

82223WIRE, SWITCH

main82223-20090iTT132..LB..RHD..DLX197812-197909

W/DEFOGGER

82241CWIRE, RELAY

main82241-20100iRT130,132,TT13#..GEN,PHL198008-198205

W/O INTERMITTENT WIPER

main82241-22060iRT13#,TT13#..ARL,GEN,PHL197809-198008

W/O INTERMITTENT WIPER

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-14170iTT132..3FC..LEF;RT132,TT132..MTM197809-197908

main82310-14171iRT132,TT133;TT132..DLX,STD197908-198205

main82310-20280iRT130197809-197908

main82310-20281iRT130197908-198112

main82310-20430iTT132..5F..EUR198008-198108

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-20080iRT130,132,TT13#,XT130..WG197809-198301

L=35X35

main82817-20160iRT13#,TT13#,XT130..HT,SED¥740197809-198301

L=120X170

main82817-20200iRT132,TT132..LB¥260197810-198112

L=150X60

main82817-21030iRT13#,TT132..LB,SED,WG197809-198301

L=100

main82817-91256iRT130,132,TT13#,XT130..WG197901-198301

L=60X80

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-20130iRT13#,XT130197809-198008

LH:IN

main82817-20130iTT13#197809-198008

RH & LH:IN

main82817-20140iTT13#197809-198008

LH:OUT

main82817-20140iTT13#197809-198008

RH & LH:OUT

main82817-20180iTT13#197809-198008

RH:IN

main82817-20190iTT13#197809-198008

RH:OUT

main82817-20210iRT13#,TT13#,XT130198008-198301

RH & LH:IN

main82817-20220iRT13#,TT13#,XT130198008-198301

RH:OUT

main82817-20230iRT13#,TT13#,XT130198008-198301

LH:OUT

82823CAP, TERMINAL, NO.1

main82823-22020iRT13#,TT13#¥310197809-198301

ALTERNATOR

sub82823-12020¥320

8401

9165640616

main91656-40616¥100

9165640618

main91656-40618¥120

9356655514

main93566-55514¥130

14 parts on this diagram · 9 diagrams in section
