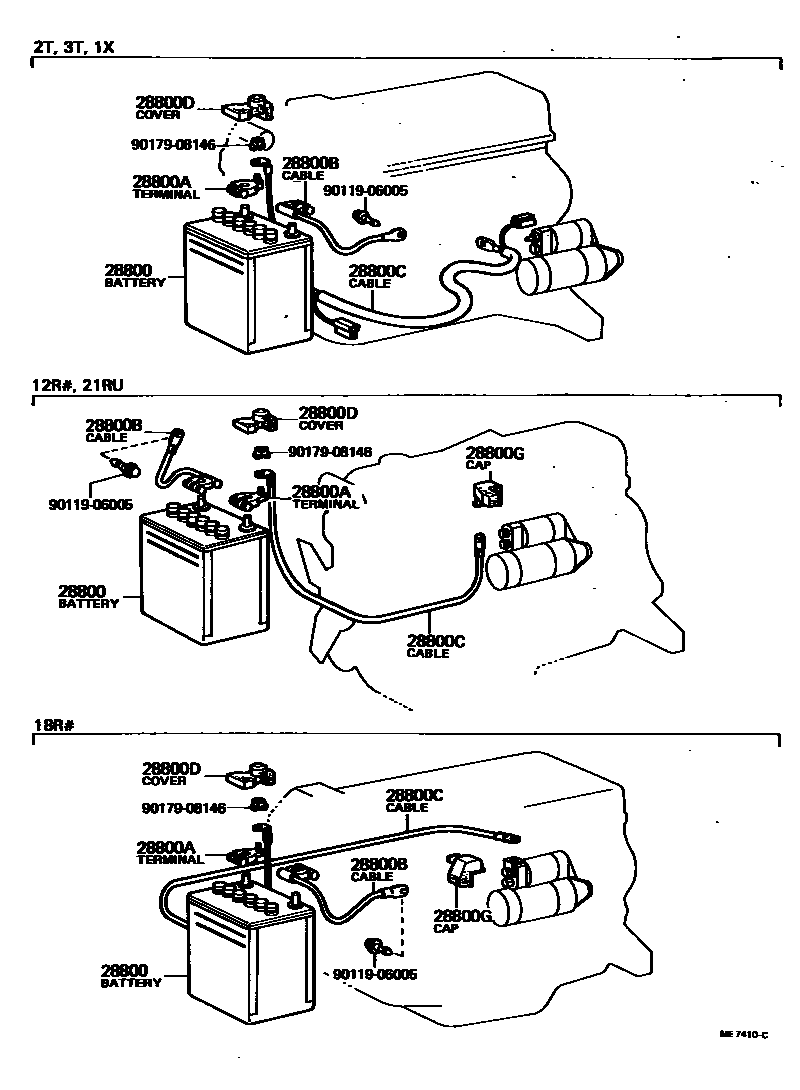

BATTERY & BATTERY CABLE

28800BATTERY

main28800-24030i12R..RT130197809-197908

34B19R,NS40ZA

sub28800-24040

main28800-26040i18R,2T,3T..RT132,TT13#..GEN197809-198205

34B19L,NS40ZAL

sub28800-26050

main28800-30131i18R,2T,3T..RT132,TT13#197809-198205

55D26R,N50ZL

sub28800-73010

main28800-31031i18R#,2T,3T..RT132,TT13#197809-198205

32C24L,N40L

sub28800-31021

main28800-33071i12R#..RT130;21RC..RT133..GL197809-198112

32C24R,N40

sub28800-33101

main28800-33111i12R#..RT130197901-198112

55D26R,N50Z

sub28800-33120

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i12R,18R#,2T,3T..RT13#,TT13#..ARL,GEN197809-198008

NS40ZA,NS40ZAL

sub90982-05028

main90982-05004i18R,2T,3T..RT132,TT13#..GEN198008-198205

NS40ZAL

sub90982-05028

main90982-05005i21RC,12RM,18R#,2T,3T..RT13#,TT13#198008-198301

N40,N40L,N50Z,N50ZL

sub90982-05030

main90982-05005i12R#,18R#,2T,3T,1X..RT13#,TT13#,XT130197809-198008

N40,N40L,N50ZL

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02135i18R,2T,3T..RT132,TT13#..GEN198008-198205

NS40ZAL

sub90982-02222

main90982-02135i12R,18R#,2T,3T..RT13#,TT13#..ARL,GEN197809-198008

NS40ZA,NS40ZAL

sub90982-02222

main90982-02136i12R#,18R#,2T,3T,1X..RT13#,TT13#,XT130197809-198008

N40,N40L,N50ZL

sub90982-02224

main90982-02136i21RC,12RM,18R#,2T,3T..RT13#,TT13#198008-198301

N40,N40L,N50Z,N50ZL

sub90982-02224

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-20120i3T..TT132..EUR198008-198108

COLD SPEC

main82021-20130i12R#..RT130197809-198112

sub82021-20220

main82021-20230i18R#..RT132197809-198205

main82021-20250i2T,3T,1X..TT13#,XT130197809-198301

main82021-20320i21RC..RT133..5F198108-198301

main82021-20330i21RC..RT133..4FC198108-198112

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-14020i21RC,12R#,18R#,2T,3T,1X..RT13#,TT13#,XT130197809-198301

28800GCAP, TERMINAL(FOR STARTER)

main82823-22010i12R#,18R#..RT130,132197809-198205

9011906005

main90119-06005

9017900146

main90179-00146

9017908146

main90179-08146

9 parts on this diagram · 1 diagram in section
