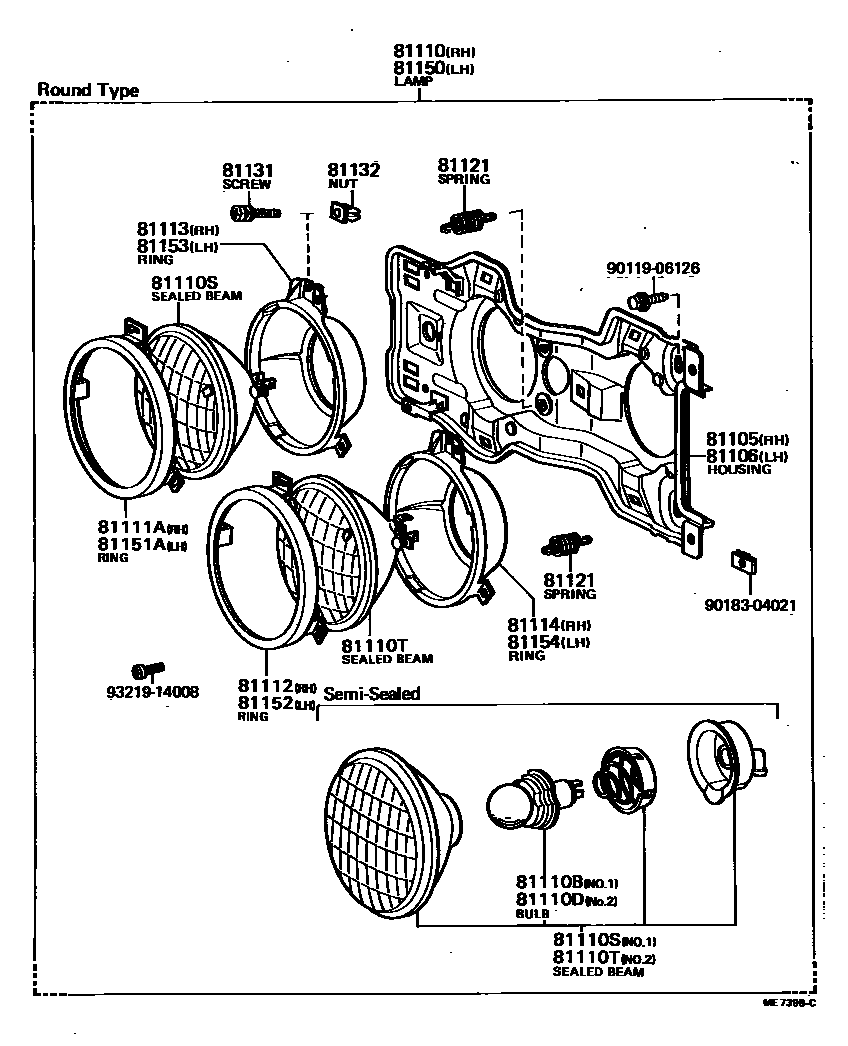

HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
*ROU,KOITO
*ROU,IKI
*REC,KOITO
*REC,KOITO
*REC,IKI
*REC,IKI
HALOGEN
81106HOUSING SUB-ASSY, HEADLAMP, LH
*ROU,KOITO
*ROU,IKI
*REC,IKI
*REC,IKI
*REC,KOITO
*REC,KOITO
HALOGEN
81110HEADLAMP ASSY, RH
*ROU,KOITO
*ROU,KOITO
*ROU,IKI
*ROU,IKI
*REC,KOITO
*REC,KOITO,THAILAND SPEC
KOITO
*REC,KOITO
KOITO
*REC,IKI
*REC,IKI,THAILAND SPEC
IKI
*REC,IKI
IKI
SEMI-SEALED,YELLOW,*ROU,KOITO
SEMI-SEALED,WHITE,*REC,KOITO
SEMI-SEALED,WHITE,*REC,KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,WHITE,*REC,IKI
SEMI-SEALED,YELLOW,*REC,KOITO
SEMI-SEALED,YELLOW
HALOGEN,*REC,KOITO
HALOGEN,WHITE,*REC,KOITO
HALOGEN,YELLOW,*REC,KOITO
SEMI-SEALED,WHITE,*ROU,KOITO
HALOGEN
HALOGEN
HALOGEN,WHITE
HALOGEN
HALOGEN
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,WHITE
12V 55W,*HAL *WH,12V 55W,KOITO
12V 65/60W,WHITE,12V 65/60W
81110DBULB(FOR HEADLAMP, NO.2)
12V 45/40W,WHITE,12V 45/40W,WHITE
12V 60/55W,*HAL *YE,12V 60/55W,YELLOW,KOITO
sub90981-13H01
81110SSEALED BEAM UNIT, NO.1
12V 45/40W,*WSB,IN,SEMI-SEALED,WHITE,*ROU
12V 45/40W,*YSB,IN,SEMI-SEALED,YELLOW,*ROU
sub90981-02H00
IN,SEMI-SEALED,WHITE,*ROU
IN,SEMI-SEALED,WHITE,*REC
12V 45/40W,*YSB,IN,SEMI-SEALED,YELLOW,*REC
sub90981-05H01
12V 55W,*HWS,IN,HALOGEN,WHITE,*REC,KOITO
IN,HALOGEN,YELLOW,*REC,KOITO
12V 50W,*HAL,*WB,12V 50W,HALOGEN,*REC,KOITO
12V 50W,*WB,12V 50W,*REC,KOITO
sub90981-05028
81110TSEALED BEAM UNIT, NO.2
12V 37.5/50W,*WB,12V 37.5/50W,*ROU,KOITO
12V 45/40W,*WSB,OUT,SEMI-SEALED,WHITE,*ROU
12V 45/40W,*YSB,OUT,SEMI-SEALED,YELLOW,*ROU
sub90981-02H01
OUT,SEMI-SEALED,WHITE,*ROU
12V 40/60W,WHITE,12V 40/60W,*REC,IKI
sub90981-05029
OUT,SEMI-SEALED,WHITE,*REC
OUT,SEMI-SEALED,WHITE,*REC
12V 60/55W,OUT,HALOGEN,WHITE,*REC,KOITO
12V 60/55W,*WSB,OUT,HALOGEN,WHITE,*REC,KOITO
OUT,HALOGEN,YELLOW,*REC,KOITO
12V 40/60W,MARK=2A1,*REC,KOITO
sub90981-05035
12V 40/60W,*HAL,*WB,12V 40/60W,MARK=2A1,*REC,KOITO
12V 40/60W,*WB,12V 40/60W,*REC,KOITO
12V 40/60W,*WB,12V 40/60W,MARK=2A,*REC,KOITO
81111ARING, SEALED BEAM RETAINING, NO.1 RH
*ROU,KOITO
*REC,KOITO
*REC,IKI
81112RING, SEALED BEAM RETAINING, NO.2 RH
*ROU,KOITO
*REC,KOITO
*REC,IKI
81113RING, SEALED BEAM MOUNTING, NO.1 RH
*ROU,KOITO
*ROU,IKI
*REC,IKI
81114RING, SEALED BEAM MOUNTING, NO.2 RH
*ROU,IKI
*REC,KOITO
*REC,IKI
*REC,IKI
*ROU,KOITO
81121SPRING, HEADLAMP TENSION
*REC,KOITO
*ROU,KOITO
*REC,IKI
*ROU,KOITO
81131SCREW, HEADLAMP ADJUSTING
*ROU,KOITO
*ROU,IKI
81132NUT, HEADLAMP SELF LOCKING
main90041-89003iTT132..RHD;RT130,132,TT133..GEN,PHL;TT132..LHD..(3FC,4F)..GEN;TT132..(HT,LB)..LHD..5F..GEN198106-198205
IKI
81150HEADLAMP ASSY, LH
*ROU,KOITO
*ROU,KOITO
*ROU,IKI
*ROU,IKI
*REC,KOITO
*REC,KOITO
*REC,KOITO
KOITO
*REC,IKI
*REC,IKI
*REC,IKI
IKI
SEMI-SEALED,YELLOW,*ROU,KOITO
SEMI-SEALED,WHITE,*REC,KOITO
SEMI-SEALED,WHITE,*REC,KOITO
SEMI-SEALED,WHITE
SEMI-SEALED,YELLOW,*REC,KOITO
SEMI-SEALED,YELLOW
HALOGEN,*REC,KOITO
HALOGEN,WHITE,*REC,KOITO
HALOGEN,YELLOW,*REC,KOITO
SEMI-SEALED,WHITE,*ROU,KOITO
HALOGEN
HALOGEN
HALOGEN,WHITE
HALOGEN
HALOGEN
81151ARING, SEALED BEAM RETAINING, NO.1 LH
*ROU,KOITO
*REC,KOITO
*REC,IKI
81152RING, SEALED BEAM RETAINING, NO.2 LH
*ROU,KOITO
*REC,KOITO
*REC,IKI
81153RING, SEALED BEAM MOUNTING, NO.1 LH
*ROU,IKI
*ROU,KOITO
*REC,IKI
81154RING, SEALED BEAM MOUNTING, NO.2 LH
*ROU,KOITO
*ROU,IKI
*REC,KOITO
*REC,IKI
*REC,IKI
9011906126
main90119-06126
9018304021
main90183-04021
9321914008
main93219-14008
22 parts on this diagram · 3 diagrams in section
