REAR MOULDING

0001 1 0002 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-20140iRT13#,TT13#,XT130..SED197809-198301

main75571-20150iRT132,133,TT132..LB197809-198301

main75571-21010iXT130..LEF197809-198301

sub68293-91604

sub68294-91604

main75571-21030iXT130..LEF;TT132..DLX..LEF197809-198112

main75571-95503iRT132,TT132..HT197809-198112

75572MOULDING, BACK WINDOW, LOWER

main75575-20110iRT130,132,TT13#,XT130..SED197809-198301

main75575-95501iRT132,TT132..HT197809-198112

75573MOULDING, BACK WINDOW SIDE, RH

main75573-20100iRT13#,TT13#,XT130..SED197809-198301

main75573-20110iRT132,133,TT132..LB197809-198301

main75573-95503iRT132,TT132..HT197809-198112

main75575-21010iTT132..DLX..LEF197809-198112

75574MOULDING, BACK WINDOW SIDE, LH

main75574-20110iRT13#,TT13#,XT130..SED197809-198301

main75574-20120iRT132,133,TT132..LB197809-198301

main75574-95503iRT132,TT132..HT197809-198112

main75576-21010iTT132..DLX..LEF197809-198112

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-20010iRT13#,TT13#,XT130..SED197809-198301

main75581-20020iRT132,133,TT132..LB197809-198301

main75581-21010iXT130..LEF;TT132..DLX..LEF197809-198112

main75581-95500iRT132,TT132..HT197809-198112

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-21010iTT132..DLX..LEF197809-198112

main75582-20010iRT130,132,TT13#,XT130..SED197809-198301

main75582-20020iRT132,133,TT132..LB197809-198301

main75582-95500iRT132,TT132..HT197809-198112

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-29066iXT130..LNK197809-198111

main75801-29096iRT132,TT132..HT197809-198008

main75801-29097iTT132..HT198008-198112

main75801-29115iRT130,132,TT13#..SED198008-198301

7554530021SPACER, WINDSHIELD GLASS

main75545-30021

7554530030SPACER, WINDSHIELD GLASS

main75545-30030

9016840027

main90168-40027

9017604002

main90176-04002

9018904014

main90189-04014

9029703001

main90297-03001

9351014010

main93510-14010

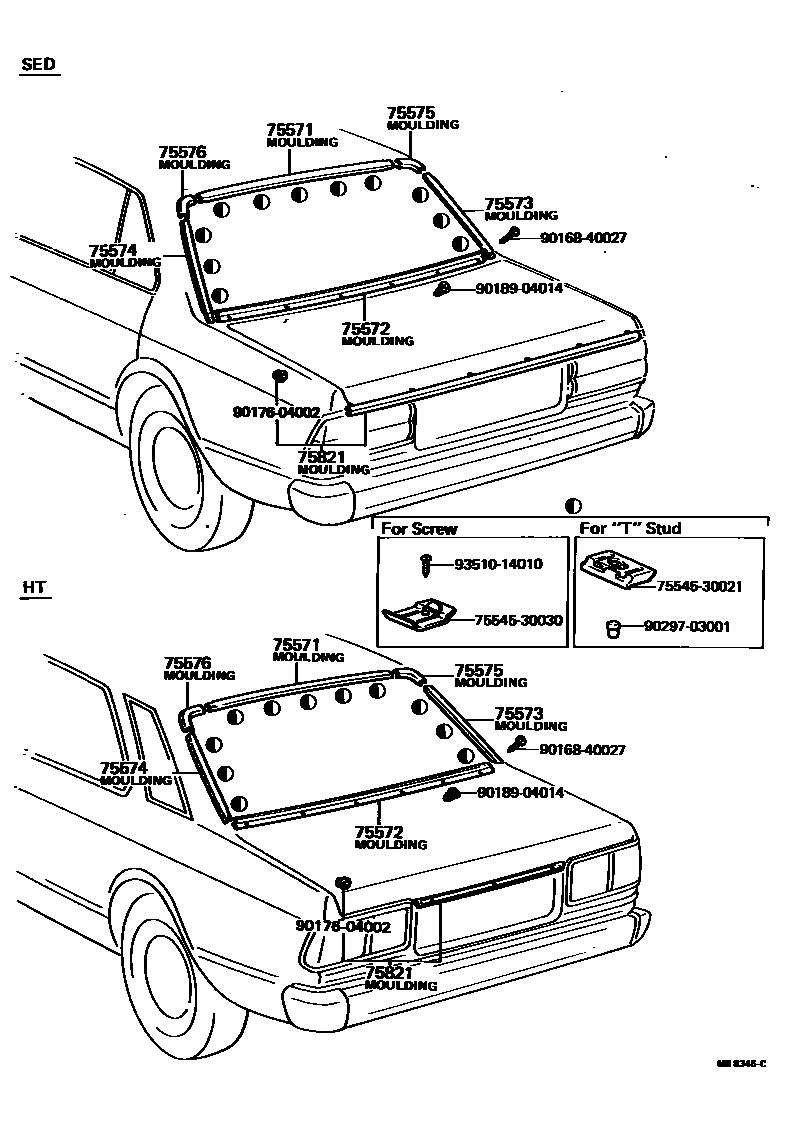

14 parts on this diagram · 2 diagrams in section
