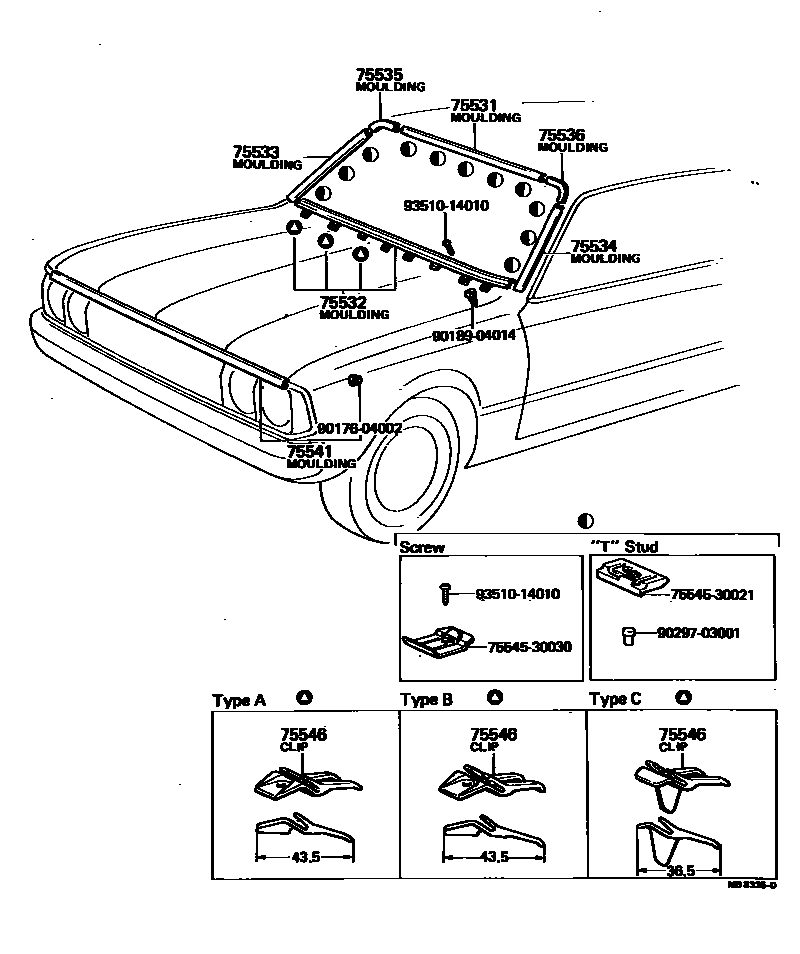

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-20170iRT13#,TT13#,XT130..SED,WG197809-198301

main75531-20180iRT132,133,TT132..HT,LB197809-198301

75532MOULDING, WINDSHIELD, LOWER

main75504-20010iRT13#,TT13#,XT130197809-198008

sub75504-20011

main75504-20011iRT13#,TT13#,XT130198008-198301

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-20160iRT13#,TT13#,XT130..SED,WG197809-198301

main75533-20170iRT132,133,TT132..HT,LB197809-198301

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-20170iRT13#,TT13#,XT130..SED,WG197809-198301

main75534-20180iRT132,133,TT132..HT,LB197809-198301

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-20030iRT13#,TT13#,XT130..SED,WG197809-198301

main75541-20040iRT132,133,TT132..LB197809-198301

main75541-95500iRT132,TT132..HT197809-198112

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-20020iRT13#,TT13#,XT130..SED,WG197809-198301

main75542-20030iRT132,133,TT132..LB197809-198301

main75542-95500iRT132,TT132..HT197809-198112

75541MOULDING, HOOD, FRONT

main75770-29056iRT13#,TT13#,XT130197809-198111

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-20010iRT13#,TT13#,XT130198008-198104

TYPE A,BLACK

sub75547-20020

main75547-20020iRT13#,TT13#,XT130198008-198301

TYPE B,WHITE

main75961-20010iRT13#,TT13#,XT130198008-198301

TYPE C

7554530021SPACER, WINDSHIELD GLASS

main75545-30021

7554530030SPACER, WINDSHIELD GLASS

main75545-30030

9017604002

main90176-04002

9018904014

main90189-04014

9029703001

main90297-03001

9351014010

main93510-14010

14 parts on this diagram · 1 diagram in section
