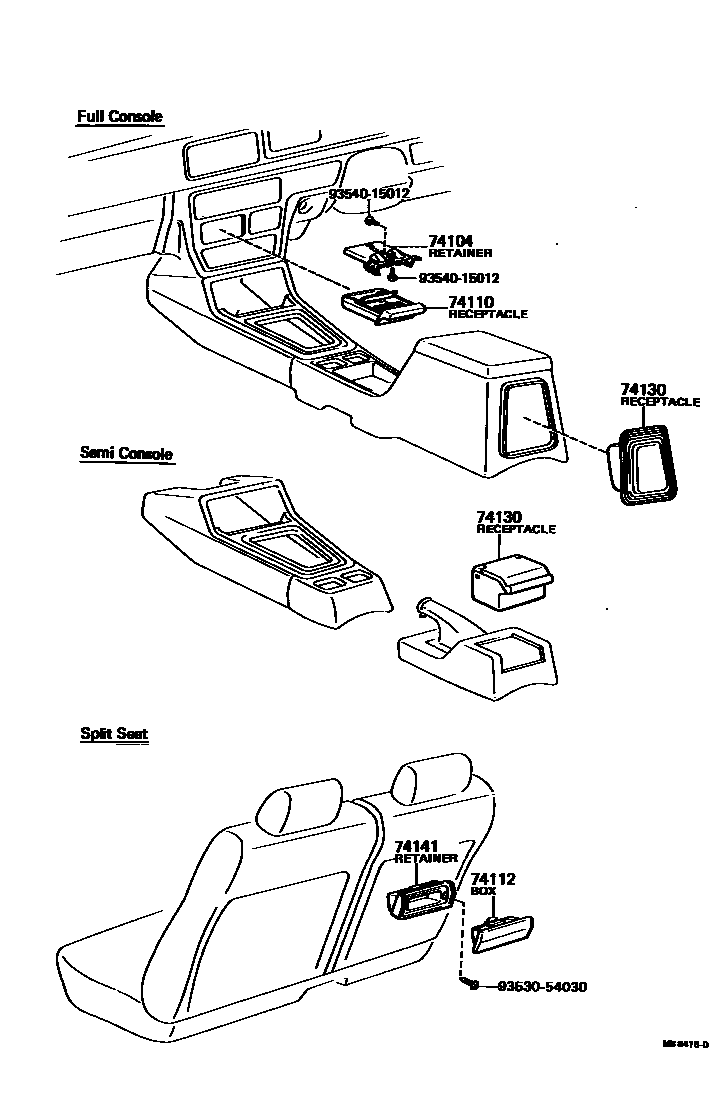

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20110iTT132..HT;RT130..DLX..LNK;RT13#,TT13#..STD197809-198202

sub74104-20120

main74104-20120iRT13#,TT13#,XT130197809-198301

W/ASH RECEPTACLE LAMP

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-20040iTT132..LHD..GL;RT13#,TT13#,XT130..DLX,STD197809-198101

main74102-20050iRT132,TT132..RHD..GL197809-198008

W/ASH RECEPTACLE LAMP

sub74102-20040

main74102-20080-01iRT13#,TT13#198008-198301

BLACK,BLACK,TRIM2#

sub74102-20040

main74102-20080-02iRT13#,TT13#..HT,LB,SED198008-198301

DARK WINE,RED/MAROON,TRIM3#

sub74102-20040

main74102-20080-06iRT13#,TT13#198008-198301

DARK BROWN,BROWN,TRIM4#

sub74102-20040

74112BOX, ASH RECEPTACLE, NO.1

main74109-20030iTT13#..SED..LHD..STD198008-198112

SPLIT SEAT

74130RECEPTACLE ASSY, REAR ASH

main74130-20040-01iXT130197908-198301

W/FULL CONSOLE,BLACK,BLACK,TRIM2#

sub74130-20040

main74130-20040-02iXT130..LNK197908-198301

W/FULL CONSOLE,DARK WINE,RED/MAROON,TRIM3#

sub74130-20040

main74130-20040-05iXT130197908-198101

W/FULL CONSOLE,BEIGE,BEIGE,TRIM4#

sub74130-20040

main74130-20040-06iRT130,133..LHD..LNK;TT13#..DLX..LNK..GEN198008-198301

W/FULL CONSOLE,LIGHT BROWN,BROWN,TRIM4#

sub74130-20040

main74130-20060-01iRT13#,TT13#,XT130197809-198301

W/SEMI CONSOLE,BLACK,BLACK,TRIM2#

sub74130-16010

sub74130-20060

main74130-20060-02iRT13#,TT13#,XT130..HT,LB,SED197809-198301

W/SEMI CONSOLE,DARK WINE,RED/MAROON,TRIM3#

sub74130-16010

sub74130-20060

main74130-20060-05iRT13#,TT13#,XT130197809-198101

W/SEMI CONSOLE,BEIGE,BEIGE,TRIM4#

sub74130-16010

sub74130-20060

main74130-20060-26iRT13#,TT13#198008-198301

W/SEMI CONSOLE,LIGHT BROWN,BROWN,TRIM4#

sub74130-16010

sub74130-20060

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74108-20050iTT13#..SED..LHD..STD198008-198112

SPLIT SEAT

9353054030

main93530-54030

9354015012

main93540-15012

7 parts on this diagram · 1 diagram in section
