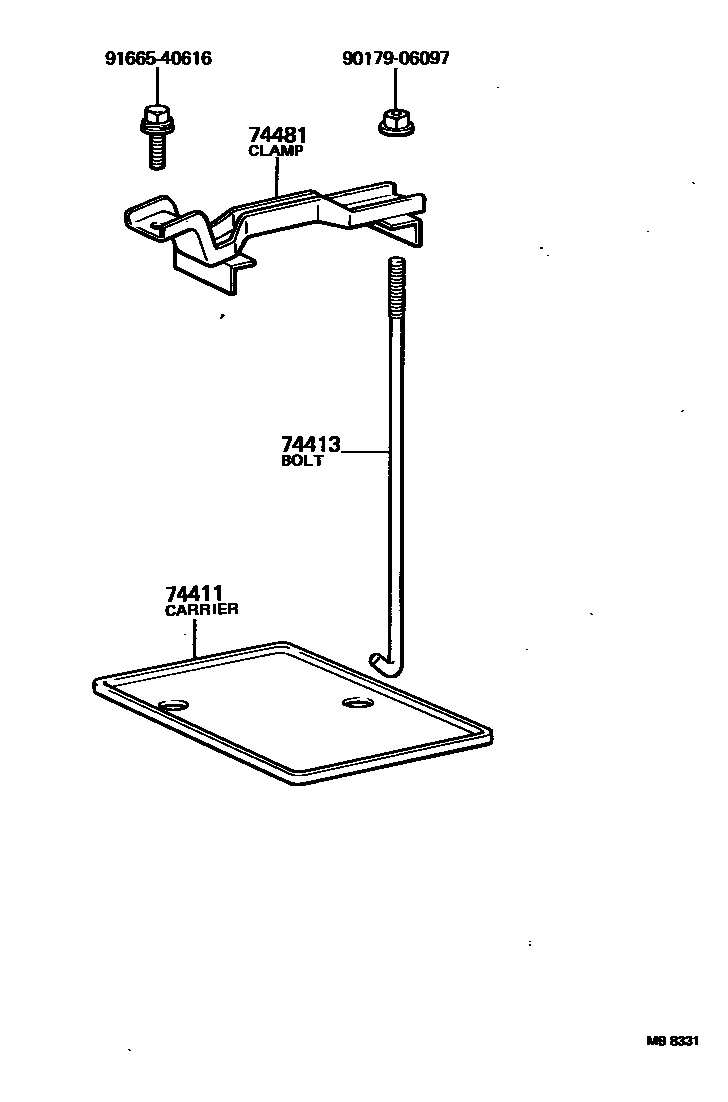

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-14070iRT132,TT13#197809-198205

N50ZL

main74431-14010iRT130,132,TT13#..GEN197809-198205

NS40ZA,NS40ZAL

sub74431-14050

main74431-14020iRT13#,TT13#197809-198301

N40,N40L

main74431-14030iRT130197901-198112

N50,N50Z

sub74431-52040

74413BOLT, BATTERY CLAMP

main74413-20030iRT132,TT13#197809-198205

N50ZL

main74451-14010iRT13#,TT13#197809-198301

74481CLAMP, BATTERY HOLD DOWN

main74404-14110iRT132,TT13#..GEN197809-198205

NS40ZAL

main74404-14140iRT132,TT13#197809-198205

N40L

main74404-14150iRT132,TT132197809-197908

N50ZL

sub74404-14151

main74404-14151iRT132,TT13#..EUR,GEN197908-198205

N50ZL

main74404-14160iRT130..GEN197809-197908

NS40ZA

main74404-14170iRT130,133197809-198301

N40

main74404-14180iRT130197901-198112

N50,N50Z

9017906097

main90179-06097

9166540616

main91665-40616

5 parts on this diagram · 1 diagram in section
