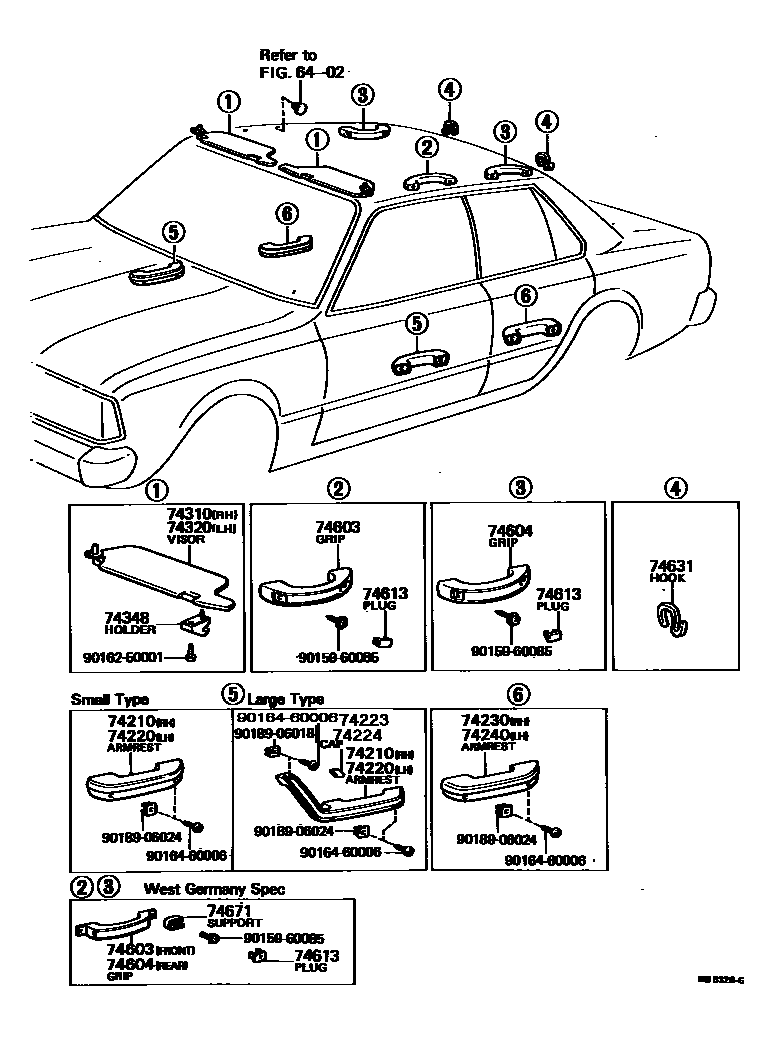

ARMREST & VISOR

0001 1 0002 1

6402

74210ARMREST ASSY, FRONT, RH

main74210-20090-01iRT132,133,TT132,XT130..ARL,EUR197809-198301

LARGE TYPE,BLACK,BLACK,TRIM2#

sub74210-20090

main74210-20090-02iRT132,133,TT132,XT130..ARL,EUR197809-198301

LARGE TYPE,DARK WINE,RED/MAROON,TRIM3#

sub74210-20090

main74210-20090-05iRT132,TT132,XT130..ARL,EUR197809-198008

LARGE TYPE,BEIGE,BEIGE,TRIM4#

sub74210-20090

main74210-20090-06iRT132,133,TT132,XT130..ARL,EUR198008-198301

LARGE TYPE,LIGHT BROWN,BROWN,TRIM4#

sub74210-20090

main74250-20010-01iRT13#,TT13#..GEN,PHL197809-198301

SMALL TYPE,BLACK,BLACK,TRIM2#

sub74250-20010

main74250-20010-02iXT130..(3FC,4F)..LNK;RT13#,TT13#..(HT,LB,SED)..(DLX,STD)..(ARL,GEN,PHL)197809-198301

SMALL TYPE,DARK WINE,RED/MAROON,TRIM3#

sub74250-20010

main74250-20010-05iXT130197809-198101

SMALL TYPE,BEIGE,BEIGE,TRIM4#

sub74250-20010

main74250-20010-06iRT133,XT130198101-198301

SMALL TYPE,LIGHT BROWN,BROWN,TRIM4#

sub74250-20010

74220ARMREST ASSY, FRONT, LH

main74220-20100-01iRT132,TT132,XT130..ARL,EUR197809-198301

LARGE TYPE,BLACK,BLACK,TRIM2#

sub74220-20100

main74220-20100-02iRT132,TT132,XT130..LNK..(ARL,EUR)197809-198301

LARGE TYPE,DARK WINE,RED/MAROON,TRIM3#

sub74220-20100

main74220-20100-05iRT132,TT132,XT130..ARL,EUR197809-198008

LARGE TYPE,BEIGE,BEIGE,TRIM4#

sub74220-20100

main74220-20100-06iRT132,133,TT132,XT130..ARL,EUR198008-198301

LARGE TYPE,LIGHT BROWN,BROWN,TRIM4#

sub74220-20100

main74250-20010-01iRT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL)197809-198301

SMALL TYPE,BLACK,BLACK,TRIM2#

sub74250-20010

main74250-20010-02iXT130..(3FC,4F)..LNK;RT13#,TT13#..(HT,LB,SED)..(DLX,STD)..(ARL,GEN,PHL)197809-198301

SMALL TYPE,DARK WINE,RED/MAROON,TRIM3#

sub74250-20010

main74250-20010-05iXT130197809-198101

SMALL TYPE,BEIGE,BEIGE,TRIM4#

sub74250-20010

main74250-20010-06iXT130198008-198301

SMALL TYPE,LIGHT BROWN,BROWN,TRIM4#

sub74250-20010

74223CAP, DOOR ARMREST, RH

74224CAP, DOOR ARMREST, LH

74230ARMREST ASSY, REAR, RH

main74250-20010-01iRT13#,TT13#,XT130..LB,SED,WG197809-198301

BLACK,BLACK,TRIM2#

sub74250-20010

main74250-20010-02iRT13#,TT13#,XT130..LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub74250-20010

main74250-20010-05iRT13#,TT13#,XT130..LB,SED,WG197809-198101

BEIGE,BEIGE,TRIM4#

sub74250-20010

main74250-20010-06iRT13#,TT13#..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub74250-20010

74240ARMREST ASSY, REAR, LH

main74250-20010-01iRT13#,TT13#,XT130..LB,SED,WG197809-198301

BLACK,BLACK,TRIM2#

sub74250-20010

main74250-20010-02iRT13#,TT13#,XT130..LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub74250-20010

main74250-20010-05iRT13#,TT13#,XT130..LB,SED,WG197809-198101

BEIGE,BEIGE,TRIM4#

sub74250-20010

main74250-20010-06iRT13#,TT13#..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub74250-20010

74310VISOR ASSY, RH

main74310-20150-05iRT13#,TT13#..SED..LHD..STD197809-198008

BEIGE,BEIGE,TRIM4#

sub74310-20150

sub74310-20171

main74310-20150-08iRT13#,TT13#..LHD..STD197809-198008

IVORY,IVORY,TRIM2#,3#

sub74310-20150

sub74310-20171

main74310-20150-18iRT130,132,TT13#..LHD..STD198008-198205

IVORY,IVORY,TRIM2#,3#,4#

sub74310-20150

sub74310-20171

main74310-20170-05iRT13#,TT13#..RHD..(DLX,STD)197809-198008

BEIGE,BEIGE,TRIM4#

sub74310-20171

main74310-20170-08iRT13#,TT13#..RHD..(DLX,STD)197809-198008

IVORY,IVORY,TRIM2#,3#

sub74310-20171

main74310-20171iTT13#..RHD198008-198112

main74310-20180-05iTT132..RHD..GL197809-197908

BEIGE,BEIGE,TRIM4#

sub74310-20181

main74310-20180-08iTT132..RHD..GL197809-197908

IVORY,IVORY,TRIM2#,3#

sub74310-20181

main74310-20190-05iRT13#,TT13#..LHD..DLX197809-198008

BEIGE,BEIGE,TRIM4#

sub74310-20190

main74310-20190-08iRT13#,TT13#..LHD..DLX197809-198008

IVORY,IVORY,TRIM2#,3#

sub74310-20190

main74310-20190-18iRT130,TT13#..LHD..DLX198008-198205

IVORY,IVORY,TRIM2#,3#,4#

sub74310-20190

main74310-20200-05iTT132..LHD..GL197809-198004

BEIGE,BEIGE,TRIM4#

sub74310-20201

main74310-20200-08iTT132..LHD..GL197809-198004

IVORY,IVORY,TRIM2#,3#

sub74310-20201

main74310-20201-05iTT132..LHD..GL198004-198008

BEIGE,BEIGE,TRIM4#

sub74310-20201

main74310-20201-08iTT132..LHD..GL198004-198008

IVORY,IVORY,TRIM2#,3#

sub74310-20201

main74310-20201-18iTT132..GL198008-198108

IVORY,IVORY,TRIM2#,3#,4#

sub74310-20201

main74310-20240-05iRT132..ARL197908-198008

BEIGE,BEIGE,TRIM4#

sub74310-20240

main74310-20240-08iRT132..ARL197908-198008

IVORY,IVORY,TRIM2#,3#

sub74310-20240

main74310-20240-18iRT132,133..ARL198008-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74310-20240

main74310-20250-05iTT132..RHD..GL197908-198008

BEIGE,BEIGE,TRIM4#

main74310-20250-08iTT132..RHD..GL197908-198008

IVORY,IVORY,TRIM2#,3#

main74310-20280iTT132..GL198008-198108

W/SUN ROOF

main74310-95506-08iTT132..HT..RHD198008-198112

IVORY,IVORY,TRIM2#,3#,4#

sub74310-95504

main74310-95507-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main74310-95507-08iRT132,TT132..HT..LHD197809-198112

IVORY,IVORY,TRIM2#,3#,4#

74320VISOR ASSY, LH

main74320-20130-05iRT130,TT13#..RHD..(DLX,STD)197809-198008

BEIGE,BEIGE,TRIM4#

sub74320-20131

main74320-20130-08iRT130,TT13#..RHD..(DLX,STD)197809-198008

IVORY,IVORY,TRIM2#,3#

sub74320-20131

main74320-20131iTT13#..RHD198008-198112

sub74320-20140

main74320-20140-05iRT13#,TT13#..LHD..(DLX,STD)197809-198008

BEIGE,BEIGE,TRIM4#

sub74320-20140

main74320-20140-08iRT13#,TT13#..LHD..(DLX,STD)197809-198008

IVORY,IVORY,TRIM2#,3#

sub74320-20140

main74320-20140-18iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

IVORY,IVORY,TRIM2#,3#,4#

sub74320-20140

main74320-20160-05iTT132..LHD..GL197809-198004

BEIGE,BEIGE,TRIM4#

sub74320-20161

main74320-20160-08iTT132..LHD..GL197809-198004

IVORY,IVORY,TRIM2#,3#

sub74320-20161

main74320-20161-05iTT132..LHD..GL198004-198008

BEIGE,BEIGE,TRIM4#

sub74320-20162

main74320-20161-08iTT132..LHD..GL198004-198112

IVORY,IVORY,TRIM2#,3#,4#

sub74320-20162

main74320-20230-05iRT132..ARL197908-198008

BEIGE,BEIGE,TRIM4#

sub74320-20230

main74320-20230-08iRT132..ARL197908-198008

IVORY,IVORY,TRIM2#,3#

sub74320-20230

main74320-20230-18iRT132,133..ARL198008-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74320-20230

main74320-20240-05iTT132..RHD..GL197908-198008

BEIGE,BEIGE,TRIM4#

main74320-20240-08iTT132..RHD..GL197908-198008

IVORY,IVORY,TRIM2#,3#

main74320-20260iTT132..GL198008-198108

W/SUN ROOF

main74320-95507-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main74320-95507-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

main74320-95509-08iTT132..HT..RHD198008-198112

IVORY,IVORY,TRIM2#,3#,4#

sub74310-95504

74348HOLDER, VISOR

main74348-14010-08iRT13#,TT13#,XT130198008-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74348-89102

sub74348-14010

sub74348-89101

sub74348-30010

main74348-14010-15iRT13#,TT13#197809-198101

BEIGE,BEIGE,TRIM4#

sub74348-89102

sub74348-14010

sub74348-89101

sub74348-30010

main74348-14020-06iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,LIGHT BROWN,BROWN,TRIM4#

sub74348-14020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-22020-05iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74603-22020

main74603-22020-08iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#

sub74603-22020

main74610-20030-05iRT13#,TT13#,XT130197809-198101

BEIGE,BEIGE,TRIM4#

sub74610-20030

main74610-20030-08iRT13#,TT13#,XT130197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74610-20030

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-22020-05iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74603-22020

main74603-22020-08iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#

sub74603-22020

main74610-10020-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

sub74610-10020

main74610-10020-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

sub74610-10020

main74610-20030-05iXT130;RT13#,TT13#..(LB,SED,WG)..(DLX,GL)197809-198101

BEIGE,BEIGE,TRIM4#

sub74610-20030

main74610-20030-08iXT130;RT13#,TT13#..(LB,SED,WG)..(DLX,GL)197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74610-20030

74613PLUG, ASSIST GRIP

main74617-14010-06iXT130197809-198101

LIGHT BROWN,BROWN,TRIM4#

sub74617-14010

main74617-14010-08iRT13#,TT13#,XT130197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74617-14010

main74617-22010-05iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,LIGHT BROWN,BEIGE,TRIM4#

sub74617-22010

main74617-22010-08iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#

sub74617-22010

74631HOOK, COAT, A

main74631-14010-06iRT132,TT132..ARL,EUR197809-198008

LIGHT BROWN,BROWN,TRIM4#

sub74631-14010

sub74631-20040

main74631-14010-08iRT132,133,TT132,XT130..ARL,EUR197809-198301

IVORY,IVORY,TRIM2#,3#,4#

sub74631-14010

sub74631-20040

74671SUPPORT, ASSIST GRIP

main74671-22010-05iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74671-22010

main74671-22010-08iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC,IVORY,IVORY,TRIM2#,3#,4#

sub74671-22010

9015960085

main90159-60085

9016250001

main90162-50001

9016460006

main90164-60006

9018906018

main90189-06018

9018906024

main90189-06024

20 parts on this diagram · 2 diagrams in section
