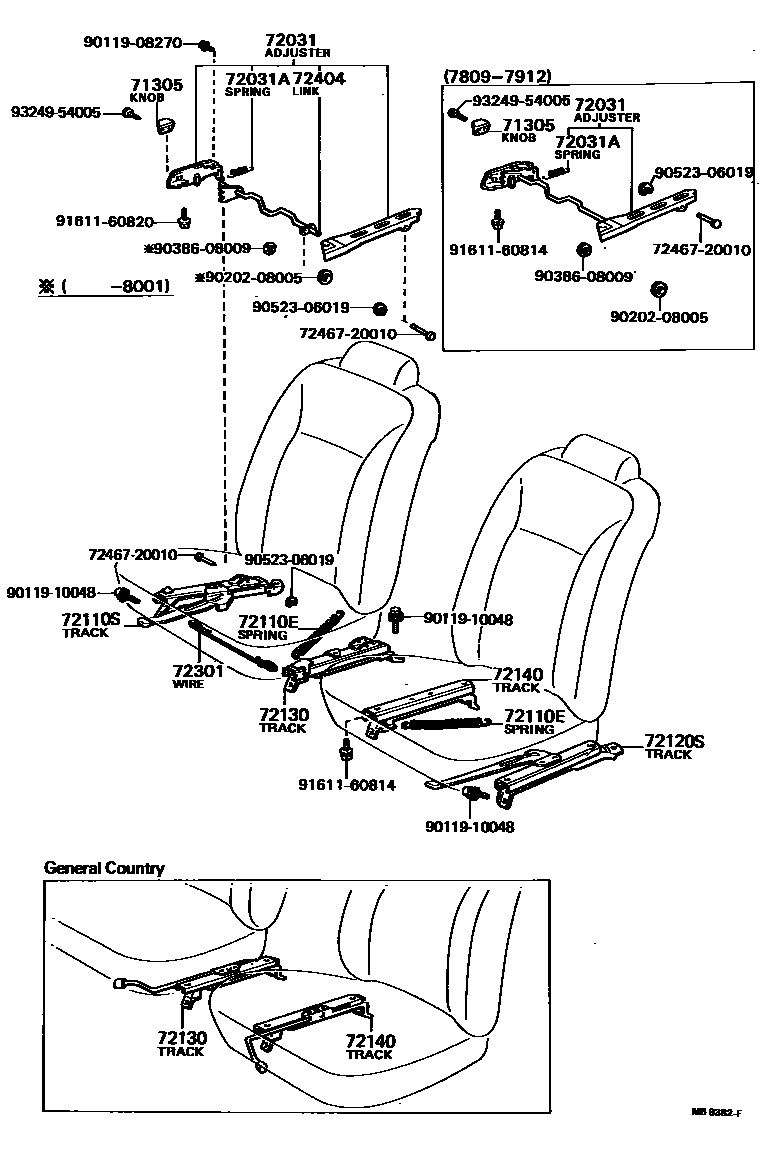

SEAT TRUCK

0001 1 0002 1

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iRT130,TT132..WG..RHD197809-198301

BLACK,BLACK,TRIM2#

sub72457-14010

main72457-14010-02iRT132,133..ARL;TT13#..(LB,SED)..RHD197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub72457-14010

main72457-14010-05iRT130,TT132..WG..RHD197809-198008

BEIGE,BEIGE,TRIM4#

sub72457-14010

main72457-14010-26iRT132,133..ARL;TT13#..(LB,SED)..RHD198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub72457-14010

main72457-14020-01iTT132..LHD..EUR197809-198205

BLACK,BLACK,TRIM2#

sub72457-14020

main72457-14020-02iRT130,132,TT13#..(HT,LB,SED)..LHD197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub72457-14020

main72457-14020-05iTT132..LHD..EUR197809-198008

BEIGE,BEIGE,TRIM4#

sub72457-14020

main72457-14020-16iRT130,132,TT13#..(HT,LB,SED)..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub72457-14020

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-20020iTT132..RHD..EUR197809-197908

sub72310-20021

main72310-20021iRT132,TT132..RHD..(ARL,EUR)197908-198008

sub72310-22011

main72310-20030iTT132..LHD..EUR197809-197908

sub72310-20031

main72310-20031iTT132..LHD..EUR197908-198008

sub72310-22021

main72310-22030iRT132,133..ARL;TT13#..(LB,SED)..RHD198008-198301

main72310-22040iRT130,132,TT13#..(HT,LB,SED)..LHD198008-198205

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iRT130,TT132..WG..RHD197809-198110

main90506-22001iTT133..LHD..LNK;TT132..(HT,LB)..LHD..5F;RT130,132,TT132..(LB,SED)..LHD..(3FC,4F)198110-198301

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008iTT132..EUR197809-198301

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-20240iTT132..LHD..EUR197809-198008

sub72110-20340

main72110-20250iRT132..ARL197908-198008

sub72110-20320

main72110-20290iTT132..RHD..EUR197809-198008

sub72110-20330

main72110-20320iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER

main72110-20330iRT132,133..ARL198008-198301

main72110-20340iRT130,132,TT13#..EUR,GEN,PHL198008-198205

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-20270iTT132..LHD..EUR197809-198008

sub72120-20340

main72120-20280iRT132,TT132..RHD..(ARL,EUR)197809-198008

sub72120-20330

main72120-20320iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER

main72120-20330iRT13#,TT13#..(LB,SED,WG)..(ARL,GEN,PHL)198008-198301

main72120-20340iRT130,132,TT13#..(LB,SED)..LHD198008-198205

W/VERTICAL ADJUSTER

main72120-95501iTT132..HT..RHD198008-198112

72130TRACK ASSY, RH SEAT, INNER

main72130-20080iRT132..WG;RT130..WG..RHD;TT133..RHD..5F;RT130,TT133..RHD..STD..LNK197809-198205

main72130-20090iRT132..ARL197908-198008

sub72130-20091

main72130-20091iTT13#..(LB,SED)..RHD198008-198112

W/VERTICAL ADJUSTER

main72130-20100iRT130..LEF;RT130..LHD..LNK;TT132..3FC..LNK..GEN;RT132..(LB,SED)..LNK..GEN;TT13#..(LB,SED,WG)..MTM..GEN197809-198205

GENERAL COUNTRY

sub72130-95500

main72130-20110iTT132..RHD..EUR197809-198008

main72130-20111iRT132,133..ARL198008-198301

main72130-95500iRT132,TT132..HT..LHD197809-198112

72140TRACK ASSY, LH SEAT, INNER

main72140-20070iRT132..LEF;RT130..WG..RHD;TT133..RHD..5F;RT130,TT133..RHD..STD..LNK197809-198301

main72140-20080iTT132..HT..LHD;TT132..RHD..STD;TT132..4F..STD..LNK;RT130,132,TT133..GEN,PHL;TT132..(LB,SED,WG)..DLX..GEN197809-198205

GENERAL COUNTRY

sub72140-95500

main72140-20090iTT132..LHD..EUR197809-198008

main72140-20091iRT130,132,TT13#..(LB,SED)..LHD198008-198205

main72140-95500iTT132..HT..RHD198008-198112

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-20130iRT13#,TT13#..LB,SED197809-198301

main72301-20150iTT13#..SED..LHD..STD198008-198112

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-20010iRT132,TT132..RHD..(ARL,EUR)197912-198005

sub72404-20011

main72404-20011iRT132,133..ARL;TT13#..(LB,SED)..RHD198005-198301

main72404-20020iTT132..LHD..EUR197912-198005

sub72404-20021

main72404-20021iTT132..LHD..EUR198005-198205

7246720010PIN, VERTICAL ADJUSTER

main72467-20010

9011908270

main90119-08270

9011910048

main90119-10048

9020208005

main90202-08005

9038608009

main90386-08009

9052306019

main90523-06019

9161160814

main91611-60814

9161160820

main91611-60820

9324954005

main93249-54005

19 parts on this diagram · 2 diagrams in section
