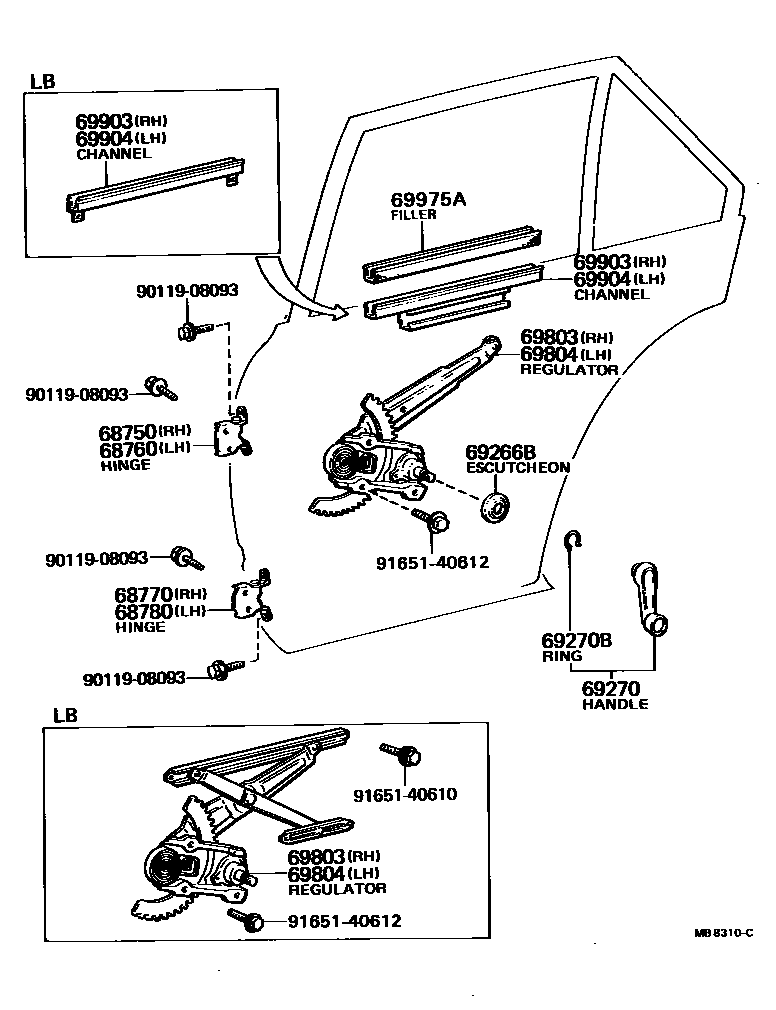

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-14010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-14010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

68770HINGE ASSY, REAR DOOR, LOWER RH

main68730-20070iRT13#,TT13#,XT130..LB,SED,WG197809-198301

68780HINGE ASSY, REAR DOOR, LOWER LH

main68740-20070iRT13#,TT13#,XT130..LB,SED,WG197809-198301

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69266-22010iRT13#,TT13#,XT130..LB,SED,WG197903-198301

main69266-22010-01iRT13#,TT132..LB,SED,WG197809-197903

BLACK,BLACK,TRIM2#

sub69266-22010

main69266-22010-02iRT13#,TT132..LB,SED197809-197903

DARK WINE,RED/MAROON,TRIM3#

sub69266-22010

main69266-22010-05iRT13#,TT132..LB,SED,WG197809-197903

BEIGE,BEIGE,TRIM4#

sub69266-22010

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-12010-01iTT132..LHD..EUR197809-198301

BLACK,BLACK,TRIM2#

sub69260-12010

main69260-12010-02iRT13#,TT13#..(LB,SED)..(ARL,GEN,PHL)197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub69260-12010

main69260-12010-05iRT13#,TT13#..(LB,SED,WG)..(ARL,GEN,PHL)197809-198101

BEIGE,BEIGE,TRIM4#

sub69260-12010

main69260-12010-36iRT13#,TT13#,XT130..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub69260-12010

main69260-20050-01iTT132..RHD..EUR197809-198008

BLACK,BLACK,TRIM2#

sub69260-20050

main69260-20050-02iTT132..RHD..EUR197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub69260-20050

main69260-20050-05iTT132..RHD..EUR197809-198008

BEIGE,BEIGE,TRIM4#

sub69260-20050

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRT13#,TT13#,XT130..LB,SED,WG198008-198301

sub90520-01274

main90520-01274iRT13#,TT13#,XT130..LB,SED,WG197809-198008

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-20050iRT130,132,TT13#,XT130..SED,WG197809-198301

main69830-20070iRT132,133,TT132..LB197809-198301

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-20050iRT13#,TT13#,XT130..SED,WG197809-198301

main69840-20070iRT132,133,TT132..LB197809-198301

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-14010iRT13#,TT13#,XT130..SED,WG197809-198301

T=4.0 GLASS

main69905-20010iTT132..LB..GEN197809-198112

T=4.0 GLASS

main69905-20020iRT130..LNK198008-198112

T=3.5 GLASS

main69905-20030iRT132,133,TT132..LB198008-198301

T=3.5 GLASS

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-14010iRT13#,TT13#,XT130..SED,WG197809-198301

T=4.0 GLASS

main69905-20010iTT132..LB..GEN197809-198112

T=4.0 GLASS

main69905-20020iTT13#..SED,WG198008-198112

T=3.5 GLASS

main69905-20030iRT132,133,TT132..LB198008-198301

T=3.5 GLASS

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-20020iRT132,133,TT132..LB197809-198301

sub69975-95110

main69975-22020iRT13#,TT13#,XT130..SED,WG197809-198301

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
