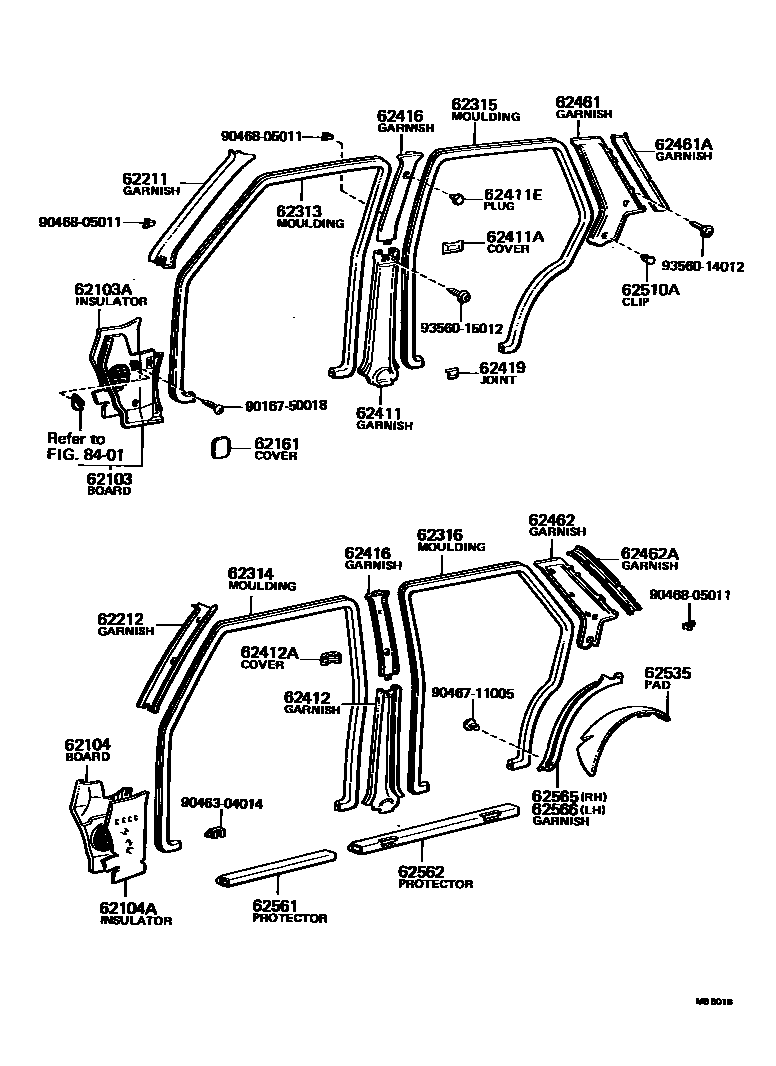

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-20080-01iRT130,132,TT13#..LHD197809-198205

BLACK,BLACK,TRIM2#

main62101-20080-02iRT130,132,TT13#..(HT,LB,SED)..LHD197809-198205

DARK WINE,RED/MAROON,TRIM3#

main62101-20080-05iRT13#,TT13#..LHD197809-198008

BEIGE,BEIGE,TRIM4#

main62101-20080-06iRT130,132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

main62101-20090-01iRT133;RT130,132,TT13#,XT130..RHD197809-198301

BLACK,BLACK,TRIM2#

main62101-20090-02iRT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62101-20090-05iRT13#,TT13#,XT130..RHD197809-198101

BEIGE,BEIGE,TRIM4#

main62101-20090-06iXT130198008-198301

LIGHT BROWN,BROWN,TRIM4#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20030iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main62105-20040iRT130,132,TT13#..LHD197809-198205

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-20050-01iRT133;RT130,132,TT13#,XT130..RHD197809-198301

BLACK,BLACK,TRIM2#

main62102-20050-02iRT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62102-20050-05iXT130197809-198101

BEIGE,BEIGE,TRIM4#

main62102-20050-06iTT13#..RHD;RT132,133..ARL198008-198301

LIGHT BROWN,BROWN,TRIM4#

main62102-20060-01iRT130,132,TT13#..LHD197809-198205

BLACK,BLACK,TRIM2#

main62102-20060-02iRT130,132,TT13#..(HT,LB,SED)..LHD197809-198205

DARK WINE,RED/MAROON,TRIM3#

main62102-20060-05iRT13#,TT13#..LHD197809-198008

BEIGE,BEIGE,TRIM4#

main62102-20060-06iRT130,132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20030iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main62106-20040iRT130,132,TT13#..LHD197809-198205

62161COVER, COWL SIDE TRIM SERVICE HOLE, UPPER

main62161-20020iRT13#,TT13#,XT130197809-198301

62211GARNISH, FRONT PILLAR, RH

main62211-20080-05iRT130..SED..LEF;RT130..LNK..PHL;RT132,TT13#..SED197809-198008

BEIGE,BEIGE,TRIM4#

main62211-20080-08iRT130..SED..LEF;RT130..LNK..PHL;RT132,TT13#..SED197809-198008

IVORY,IVORY,TRIM2#,3#

main62211-20080-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main62211-20090-05iRT13#,TT13#,XT130..WG197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main62211-20090-05iRT13#,TT13#,XT130..WG197809-198008

BEIGE,BEIGE,TRIM4#

main62211-20090-08iRT13#,TT13#,XT130..WG197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

main62211-20090-08iRT13#,XT130..SED..STD197809-198008

IVORY,IVORY,TRIM2#

main62211-20090-08iRT13#,TT13#,XT130..SED,WG198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main62211-20100-05iRT132,TT132..LB197809-198008

BEIGE,BEIGE,TRIM4#

main62211-20100-08iRT132,133,TT132..LB197809-198301

IVORY,IVORY,TRIM2#,3#

main62211-95503-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main62211-95503-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

62212GARNISH, FRONT PILLAR, LH

main62212-20080-05iRT130..SED..LEF;RT130..LNK..PHL;RT132,TT13#..SED197809-198008

BEIGE,BEIGE,TRIM4#

main62212-20080-08iRT130..SED..LEF;RT130..LNK..PHL;RT132,TT13#..SED197809-198008

IVORY,IVORY,TRIM2#,3#

main62212-20080-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main62212-20090-05iRT132,TT132..SED..DLX..GEN197809-198008

BEIGE,BEIGE,TRIM4#

main62212-20090-05iRT13#,TT13#,XT130..WG197809-198108

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main62212-20090-08iRT132,TT132..SED..DLX..GEN197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

main62212-20090-08iRT132,TT132..SED..DLX..GEN197809-198008

IVORY,IVORY,TRIM2#

main62212-20090-08iRT130,132,TT13#,XT130..SED,WG198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main62212-20100-05iRT132,TT132..LB197809-198008

BEIGE,BEIGE,TRIM4#

main62212-20100-08iRT132,133,TT132..LB197809-198301

IVORY,IVORY,TRIM2#,3#,4#

main62212-95503-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main62212-95503-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-20050-01iXT130;RT13#,TT13#..SED197809-198301

BLACK,BLACK,TRIM2#

sub62333-20010

main62313-20050-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub62333-20010

main62313-20050-05iXT130197809-198101

BEIGE,BEIGE,TRIM4#

sub62333-20010

main62313-20050-06iXT130198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub62333-20010

main62313-91256-01iRT13#,TT13#..WG197809-198005

BLACK,BLACK,TRIM2#

sub62313-20050¥1,930

main62313-91256-05iRT13#,TT13#..WG197809-198005

BEIGE,BEIGE,TRIM4#

sub62313-20050¥1,930

main62313-95502-01iRT132,TT132..HT197809-198112

BLACK,BLACK,TRIM2#

sub62313-95800¥810

main62313-95502-02iRT132,TT132..HT197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub62313-95800¥810

main62313-95502-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

sub62313-95800¥810

main62313-95502-06iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub62313-95800¥810

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-20050-01iXT130;RT13#,TT13#..SED197809-198301

BLACK,BLACK,TRIM2#

sub62333-20010

main62313-20050-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub62333-20010

main62313-20050-05iXT130;RT13#,TT13#..SED197809-198101

BEIGE,BEIGE,TRIM4#

sub62333-20010

main62313-20050-06iRT13#,TT13#..SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub62333-20010

main62313-91256-01iRT13#,TT13#..WG197809-198005

BLACK,BLACK,TRIM2#

sub62313-20050¥1,930

main62313-91256-05iRT13#,TT13#..WG197809-198005

BEIGE,BEIGE,TRIM4#

sub62313-20050¥1,930

main62313-95502-01iRT132,TT132..HT197809-198112

BLACK,BLACK,TRIM2#

sub62313-95800¥810

main62313-95502-02iRT132,TT132..HT197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub62313-95800¥810

main62313-95502-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

sub62313-95800¥810

main62313-95502-06iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub62313-95800¥810

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62333-20010-01iRT13#,TT13#,XT130..SED197809-198301

BLACK,BLACK,TRIM2#

main62333-20010-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62333-20010-05iRT13#,TT13#,XT130..SED197809-198101

BEIGE,BEIGE,TRIM4#

main62333-20010-06iRT13#,TT13#..SED198008-198301

LIGHT BROWN,BROWN,TRIM4#

main62333-91255-01iRT13#,TT132..WG..GEN197809-198008

W/SEAT BELT,BLACK,BLACK,TRIM2#

main62333-91255-01iRT130,132,XT130..WG198008-198301

BLACK,BLACK,TRIM2#

main62333-91255-05iXT130..LEF198008-198108

BEIGE,BEIGE,TRIM4#

main62333-91255-05iRT13#,TT132..WG..GEN197809-198008

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main62333-91255-06iRT130,132..WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

main62333-91257-01iRT13#,TT13#..WG197809-198008

W/O SEAT BELT,BLACK,BLACK,TRIM2#

main62333-91257-01iTT13#..WG198008-198112

BLACK,BLACK,TRIM2#

main62333-91257-05iRT13#,TT13#..WG197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

main62333-91257-06iTT13#..WG198008-198112

LIGHT BROWN,BROWN,TRIM4#

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62333-20010-01iRT13#,TT13#,XT130..SED197809-198301

BLACK,BLACK,TRIM2#

main62333-20010-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62333-20010-05iRT13#,TT13#,XT130..SED197809-198101

BEIGE,BEIGE,TRIM4#

main62333-20010-06iXT130..LNK198008-198301

LIGHT BROWN,BROWN,TRIM4#

main62333-91255-01iRT13#,TT132..WG..GEN197809-198008

W/SEAT BELT,BLACK,BLACK,TRIM2#

main62333-91255-01iRT130,132,XT130..WG198008-198301

BLACK,BLACK,TRIM2#

main62333-91255-05iXT130..LEF198008-198101

BEIGE,BEIGE,TRIM4#

main62333-91255-05iRT13#,TT132..WG..GEN197809-198008

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main62333-91255-06iXT130..LEF198008-198301

LIGHT BROWN,BROWN,TRIM4#

main62333-91257-01iRT13#,TT13#..WG197809-198008

W/O SEAT BELT,BLACK,BLACK,TRIM2#

main62333-91257-01iTT13#..WG198008-198112

BLACK,BLACK,TRIM2#

main62333-91257-05iRT13#,TT13#..WG197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

main62333-91257-06iTT13#..WG198008-198112

LIGHT BROWN,BROWN,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62413-20040-01iRT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198301

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub62413-20040¥1,850

main62413-20040-02iRT13#,TT13#,XT130..SED..(ARL,EUR,GEN)197809-198008

W/SEAT BELT,DARK,RED/MAROON

sub62413-20040¥1,850

main62413-20040-02iRT13#,TT13#,XT130..LB,SED197809-198301

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub62413-20040¥1,850

main62413-20040-05iRT132,TT132..LB197809-198101

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub62413-20040¥1,850

main62413-20040-06iRT13#,TT13#..LB,SED,WG198008-198301

W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub62413-20040¥1,850

main62413-20050-01iRT132,TT132..LB..RHD..GEN197809-198205

W/O SEAT BELT,BLACK,BLACK,TRIM2#

sub62413-20050

main62413-20050-02iRT130,132,TT13#..SED197809-198205

W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub62413-20050

main62413-20050-05iRT13#,TT13#..(SED,WG)..(GEN,PHL)197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

sub62413-20050

main62413-20050-06iTT132..EUR198008-198205

W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub62413-20050

62411ACOVER, CENTER PILLAR GARNISH BELT HOLE, RH

main73297-20010-01iRT132,TT132..LB197809-198301

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub73297-20010¥620

main73297-20010-02iRT132,TT132..LB197809-198301

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub73297-20010¥620

main73297-20010-05iRT132,TT132..LB197809-198101

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub73297-20010¥620

main73297-20010-06iXT130198008-198301

W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub73297-20010¥620

main73297-20020-01iRT132,TT132..LB..RHD..GEN197809-198205

W/O SEAT BELT,BLACK,BLACK,TRIM2#

sub73297-20020¥620

main73297-20020-02iRT13#,TT13#..SED..(GEN,PHL)197809-198205

W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub73297-20020¥620

main73297-20020-05iRT132,TT132..LB..RHD..GEN197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

sub73297-20020¥620

main73297-20020-06iRT130,132,TT13#..SED,WG198008-198205

W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub73297-20020¥620

62411EPLUG, HOLE (FOR SEAT BELT)

main90950-01159-18iRT132,TT132..LB..RHD..GEN197809-198008

IVORY,IVORY,TRIM2#,3#

sub90950-01159¥270

main90950-01159-18iTT132..EUR198008-198205

IVORY,IVORY,TRIM2#,3#,4#

sub90950-01159¥270

main90950-01159-25iRT132,TT132..LB..RHD..GEN197809-198008

BEIGE,BEIGE,TRIM4#

sub90950-01159¥270

62412GARNISH, CENTER PILLAR, LH

main62414-20020-01iRT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198301

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub62414-20020¥1,850

main62414-20020-02iRT13#,TT13#,XT130..SED..(ARL,GEN,PHL)197809-198301

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub62414-20020¥1,850

main62414-20020-05iRT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198101

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub62414-20020¥1,850

main62414-20020-06iXT130198008-198301

W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub62414-20020¥1,850

main62414-20030-01iRT132,TT132..LB..RHD..GEN197809-198205

W/O SEAT BELT,BLACK,BLACK,TRIM2#

sub62414-20030

main62414-20030-02iRT132,TT132..LB..RHD..GEN197809-198205

W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub62414-20030

main62414-20030-05iRT132,TT132..LB..RHD..GEN197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

sub62414-20030

main62414-20030-06iRT130,132,TT13#..SED,WG198008-198205

W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub62414-20030

62412ACOVER, CENTER PILLAR GARNISH BELT HOLE, LH

main73298-20010-01iRT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198301

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub73298-20010¥620

main73298-20010-02iRT132,TT132..LB197809-198301

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub73298-20010¥620

main73298-20010-05iRT132,TT132..LB197809-198101

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub73298-20010¥620

main73298-20010-06iXT130198101-198301

W/SEAT BELT,LIGTH BROWN,BROWN,TRIM4#

sub73298-20010¥620

main73298-20010-06iRT13#,TT13#..LB,SED,WG198008-198301

W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

sub73298-20010¥620

main73298-20020-01iTT132..EUR197809-198205

W/O SEAT BELT,BLACK,BLACK,TRIM2#

main73298-20020-02iRT132,TT132..LB..RHD..GEN197809-198205

W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

main73298-20020-05iRT13#,TT13#..(SED,WG)..(GEN,PHL)197809-198008

W/O SEAT BELT,BEIGE,BEIGE,TRIM4#

main73298-20020-06iRT130,132,TT13#..SED,WG198008-198205

W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

62416GARNISH, CENTER PILLAR, UPPER

main62411-20130iTT13#..SED198008-198112

RH

main62411-20150-05iTT133;RT130..SED..RHD..LEF;RT132,TT132..SED..RHD197809-198008

RH,BEIGE,BEIGE,TRIM4#

main62411-20150-08iRT130..SED..LHD..LEF..GEN;RT132,TT132..SED..LHD..LNK197809-198008

RH,IVORY,IVORY,TRIM2#,3#

main62411-20160-05iRT13#..SED..RHD..LNK;TT13#..SED..RHD..(3FC,5F)..DLX197809-198008

SUSPENDED HEADLINING,RH,BEIGE,BEIGE,TRIM4#

main62411-20160-05iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198008

RH,BEIGE,BEIGE,TRIM4#

main62411-20160-08iRT13#..SED..RHD..LNK;TT13#..SED..RHD..(3FC,5F)..DLX197809-198008

RH,IVORY,IVORY,TRIM2#

main62411-20160-08iRT13#,TT13#..WG197809-198008

SUSPENDED HEADLINING,RH,IVORY,IVORY,TRIM2#,3#

main62411-20160-08iXT130197908-198008

RH,IVORY,IVORY,TRIM2#,3#

main62411-20161iRT13#,TT13#,XT130..SED,WG198008-198301

SUSPENDED HEADLINING,RH

main62411-20170-05iRT132,TT132..LB197809-198008

RH,BEIGE,BEIGE,TRIM4#

main62411-20170-08iRT132,133,TT132..LB197809-198301

RH,IVORY,IVORY,TRIM2#,3#,4#

main62412-20130iTT13#..SED198008-198112

LH

main62412-20150-05iRT130..SED..LHD..LEF..GEN;RT132,TT132..SED..LHD..LNK197809-198008

LH,BEIGE,BEIGE,TRIM4#

main62412-20150-08iTT133;RT130..SED..RHD..LEF;RT132,TT132..SED..RHD197809-198008

LH,IVORY,IVORY,TRIM2#,3#

main62412-20160-05iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198008

SUSPENDED HEADLINING,LH,BEIGE,BEIGE,TRIM4#

main62412-20160-05iRT13#,TT13#..WG197809-198008

LH,BEIGE,BEIGE,TRIM4#

main62412-20160-08iRT13#,TT13#..WG197809-198008

LH,IVORY,IVORY,TRIM2#

main62412-20160-08iRT130..LHD..LNK;RT132..SED..LEF;RT130..SED..LEF..PHL;TT132..SED..LHD..DLX..GEN197809-198008

SUSPENDED HEADLINING,LH,IVORY,IVORY,TRIM2#,3#

main62412-20160-08iXT130197908-198008

LH,IVORY,IVORY,TRIM2#,3#

main62412-20161iRT13#,TT13#,XT130..SED,WG198008-198301

SUSPENDED HEADLINING,LH

main62412-20170-05iRT132,TT132..LB197809-198008

LH,BEIGE,BEIGE,TRIM4#

main62412-20170-08iRT132,133,TT132..LB197809-198301

LH,IVORY,IVORY,TRIM2#,3#,4#

62419JOINT, CENTER PILLAR GARNISH

main62419-20010-01iRT132,TT132..LB197809-198301

BLACK,BLACK,TRIM2#

main62419-20010-02iRT132,TT132..LB197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62419-20010-05iRT13#,TT13#,XT130..(SED,WG)..(ARL,EUR,GEN)197809-198101

BEIGE,BEIGE,TRIM4#

main62419-20010-06iRT13#,TT13#..LB,SED,WG198008-198301

LIGHT BROWN,BROWN,TRIM4#

62461GARNISH, ROOF SIDE TRIM, RH

main62405-95501-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main62405-95501-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#

main62470-20040-05iRT132..SED..LEF;TT132..LHD..3FC..DLX..GEN;RT132,TT132..SED..RHD..DLX197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main62470-20040-08iRT130,XT130..LNK;RT130..SED..LEF..PHL197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

main62470-20040-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main62470-20050-05iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

BEIGE,BEIGE,TRIM4#

sub62470-20050¥2,540

main62470-20050-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

sub62470-20050¥2,540

main62470-20050-08iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

IVORY,IVORY,TRIM2#,3#

sub62470-20050¥2,540

main62470-20070-05iTT132..SED..GL197809-198004

BEIGE,BEIGE,TRIM4#

sub62470-20071

main62470-20070-08iTT132..SED..GL197809-198004

IVORY,IVORY,TRIM2#,3#

sub62470-20071

main62470-20071-05iTT132..SED..GL198004-198008

BEIGE,BEIGE,TRIM4#

main62470-20071-08iTT132..SED..GL198004-198008

IVORY,IVORY,TRIM2#,3#

main62470-20080-05iTT132..SED..GL197809-198008

W/*ELR,BEIGE,BEIGE,TRIM4#

main62470-20080-08iTT132..SED..GL197809-198008

W/*ELR,IVORY,TRIM2#,3#

main62471-20100-05iRT132,TT132..LB197809-198008

UPR,BEIGE,BEIGE,TRIM4#

main62471-20100-08iRT132,133,TT132..LB197809-198301

UPR,IVORY,IVORY,TRIM2#,3#,4#

main62571-20060-05iRT132,TT132..LB197809-198008

LWR,BEIGE,BEIGE,TRIM4#

main62571-20060-08iRT132,133,TT132..LB197809-198301

LWR,IVORY,IVORY,TRIM2#,3#,4#

62461AGARNISH, REAR WINDOW SIDE, RH

main62581-20010-05iRT13#,TT13#..SED197809-198008

BEIGE,BEIGE,TRIM4#

main62581-20010-08iRT13#,TT13#..SED197809-198008

IVORY,IVORY,TRIM2#,3#

main62581-20010-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main62581-20020-05iRT132..SED..LEF;TT132..LHD..3FC..DLX..GEN;RT132,TT132..SED..RHD..DLX197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub62581-20010

main62581-20020-08iRT132..SED..LEF;TT132..LHD..3FC..DLX..GEN;RT132,TT132..SED..RHD..DLX197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub62581-20010

main62581-20020-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

sub62581-20010

62462GARNISH, ROOF SIDE TRIM, LH

main62406-95501-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

main62406-95501-08iRT132,TT132..HT197809-198112

IVORY,IVORY,TRIM2#,3#,4#

main62472-20120-05iRT132,TT132..LB197809-198008

UPR,BEIGE,BEIGE,TRIM4#

main62472-20120-08iRT132,133,TT132..LB197809-198301

UPR,IVORY,IVORY,TRIM2#,3#,4#

main62480-20040-05iRT132..SED..LEF;RT130,XT130..LNK;RT130..SED..LEF..PHL197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

main62480-20040-08iTT133..RHD..5F;TT133..LHD..4F..DLX;TT133..RHD..STD..LNK197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

main62480-20040-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

main62480-20050-05iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

BEIGE,BEIGE,TRIM4#

sub62480-20050¥2,540

main62480-20050-08iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

IVORY,IVORY,TRIM2#,3#

sub62480-20050¥2,540

main62480-20050-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

sub62480-20050¥2,540

main62480-20070-05iTT132..SED..GL197809-198004

BEIGE,BEIGE,TRIM4#

sub62480-20071

main62480-20070-08iTT132..SED..GL197809-198004

IVORY,IVORY,TRIM2#,3#

sub62480-20071

main62480-20071-05iTT132..SED..GL198004-198008

BEIGE,BEIGE,TRIM4#

main62480-20071-08iTT132..SED..GL198004-198008

IVORY,IVORY,TRIM2#,3#

main62480-20080-05iTT132..SED..GL197809-198008

W/*ELR,BEIGE,BEIGE,TRIM4#

main62480-20080-08iTT132..SED..GL197809-198008

W/*ELR,IVORY,IVORY,TRIM2#,3#

main62572-20070-05iRT132,TT132..LB197809-198008

LWR,BEIGE,BEIGE,TRIM4#

main62572-20070-08iRT132,133,TT132..LB197809-198301

LWR,IVORY,IVORY,TRIM2#,3#,4#

62462AGARNISH, REAR WINDOW SIDE, LH

main62582-20020-05iRT13#,TT13#..SED197809-198008

BEIGE,BEIGE,TRIM4#

main62582-20020-08iRT13#,TT13#..SED197809-198008

IVORY,IVORY,TRIM2#,3#

main62582-20020-08iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

main62582-20030-05iRT132..SED..LEF;TT132..LHD..3FC..DLX..GEN;RT132,TT132..SED..RHD..DLX197809-198101

SUSPENDED HEADLINING,BEIGE,BEIGE,TRIM4#

sub62582-20020

main62582-20030-08iRT132..SED..LEF;TT132..LHD..3FC..DLX..GEN;RT132,TT132..SED..RHD..DLX197809-198008

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#

sub62582-20020

main62582-20030-08iRT13#,TT13#,XT130..SED198008-198301

SUSPENDED HEADLINING,IVORY,IVORY,TRIM2#,3#,4#

sub62582-20020

62510ACLIP, BACK WINDOW SIDE GARNISH COVER

main90467-09084-28iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

IVORY,IVORY,TRIM2#,3#

sub90467-09084¥170

main90467-09084-28iTT13#..SED198008-198112

IVORY,IVORY,TRIM2#,3#,4#

sub90467-09084¥170

main90467-09084-46iTT13#..SED..GEN;RT132..SED..LNK;RT130..SED..LEF..GEN197809-198008

LIGHT BROWN,BROWN,TRIM4#

sub90467-09084¥170

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-20020iRT13#,TT13#,XT130..HT,SED197809-198301

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14060iRT132,TT132..HT197809-198005

L=750

main62561-20020iRT13#,TT13#,XT130¥850197809-198301

L=510

main62563-95500iRT132,TT132..HT198005-198112

L=750

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62561-20020iRT132,TT132..HT¥850197809-198112

L=510

main62563-20020iRT13#,TT13#,XT130..LB,SED,WG197809-198301

L=510

main62563-95500iRT132,TT132..HT197809-198112

L=750

62565GARNISH, REAR SEAT SIDE, RH

main62551-20020-01iRT13#,TT13#,XT130..SED197809-198301

BLACK,BLACK,TRIM2#

main62551-20020-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62551-20020-05iXT130..LNK197809-198101

BEIGE,BEIGE,TRIM4#

main62551-20020-06iRT13#,TT13#..SED198008-198301

LIGHT BROWN,BROWN,TRIM4#

62566GARNISH, REAR SEAT SIDE, LH

main62552-20010-01iRT13#,TT13#,XT130..SED197809-198301

BLACK,BLACK,TRIM2#

main62552-20010-02iRT13#,TT13#,XT130..SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

main62552-20010-05iXT130..LNK197809-198101

BEIGE,BEIGE,TRIM4#

main62552-20010-06iXT130..LNK198008-198301

LIGHT BROWN,BROWN,TRIM4#

8401

9016750018

main90167-50018¥110

9046304014

main90463-04014¥130

9046711005

main90467-11005¥180

9046805011

main90468-05011¥120

9356014012

main93560-14012¥70

9356015012

main93560-15012¥70

35 parts on this diagram · 4 diagrams in section
