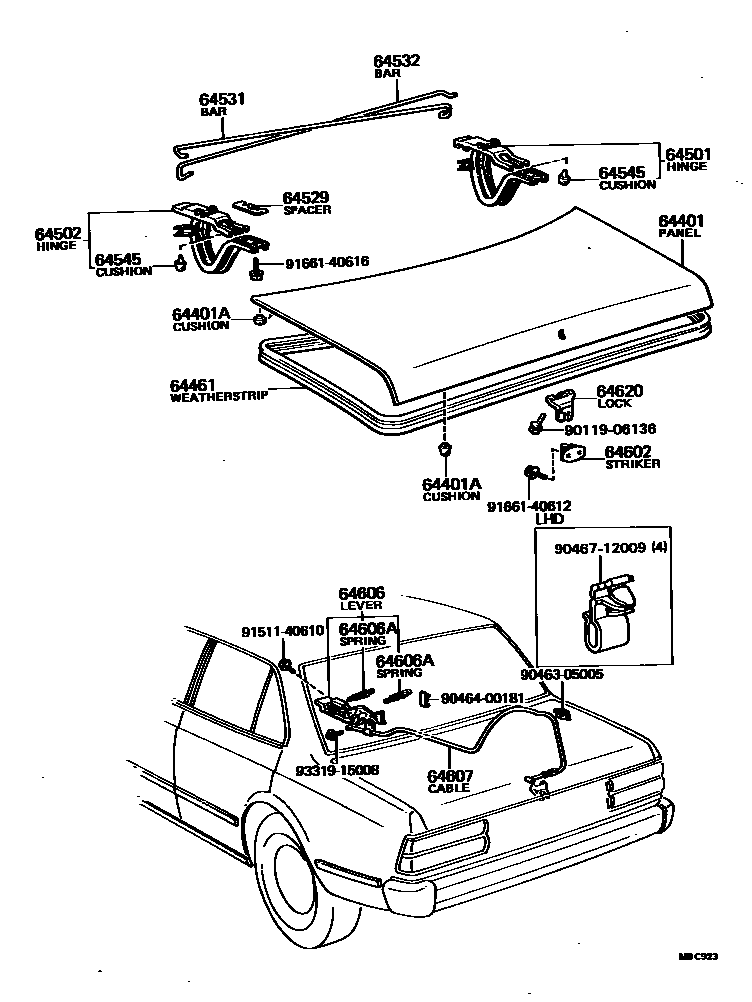

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20360iRT13#,TT13#,XT130..SED197809-198301

main64401-95513iRT132..HT197809-197908

main64401-95520iRT132,TT132..HT197908-198112

sub64401-95513

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07001iTT132..HT..LHD;TT132..(HT,SED)..RHD;RT13#,TT133,XT130..SED;TT132..SED..LHD..(3FC,4F)198012-198301

OD=15

sub90541-07003

main90541-07022iRT13#,TT13#,XT130..HT,SED197809-198012

OD=15

sub90541-07001

main90541-08004iRT13#,TT13#,XT130..HT,SED197809-198301

14X15.5

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20110iRT13#,TT13#,XT130..SED197809-198301

main64461-95504iRT132,TT132..HT197809-198112

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20050iRT13#,TT13#,XT130..SED197809-198301

main64510-95500iRT132,TT132..HT197809-198112

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20040iRT13#,TT13#,XT130..SED197809-198301

main64520-95500iRT132,TT132..HT197809-198112

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iRT13#,TT13#,XT130..SED197809-198301

main64529-22010iRT132,TT132..HT197809-198112

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20070iRT13#,TT13#,XT130..SED197809-198301

main64531-95500iRT132,TT132..HT197809-198112

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20070iRT13#,TT13#,XT130..SED197809-198301

main64532-95500iRT132,TT132..HT197809-198112

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09003iRT13#,TT13#,XT130..HT,SED197809-197909

main90541-09013iRT13#,TT13#,XT130..HT,SED197909-198301

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iRT13#,TT13#,XT130..HT,SED197809-198301

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20020iTT13#..(HT,SED)..RHD..DLX198008-198112

main64606-20030iRT130,TT13#..(HT,SED)..LHD..DLX197809-198112

main64606-20040iXT130..LNK197908-198008

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iTT132..SED..GL197809-198112

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20020iXT130..LNK197908-198112

main64607-20030iTT132..SED..GL197809-198008

main64607-20030iRT130,TT13#..SED..LHD..DLX198008-198112

L=4190

main64607-95500iTT132..HT..RHD198008-198112

main64607-95501iTT132..HT..LHD198008-198112

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20030iTT132..SED..GL197809-198008

main64610-20030iRT130,TT13#..(HT,SED)..DLX198008-198112

W/OPENER

main64610-20040iRT13#,TT13#,XT130..HT,SED197809-198301

9011906136

main90119-06136

9046305005

main90463-05005

9046400181

main90464-00181

9046712009

main90467-12009

9151140610

main91511-40610

9166140612

main91661-40612

9166140616

main91661-40616

9331915008

main93319-15008

22 parts on this diagram · 1 diagram in section
