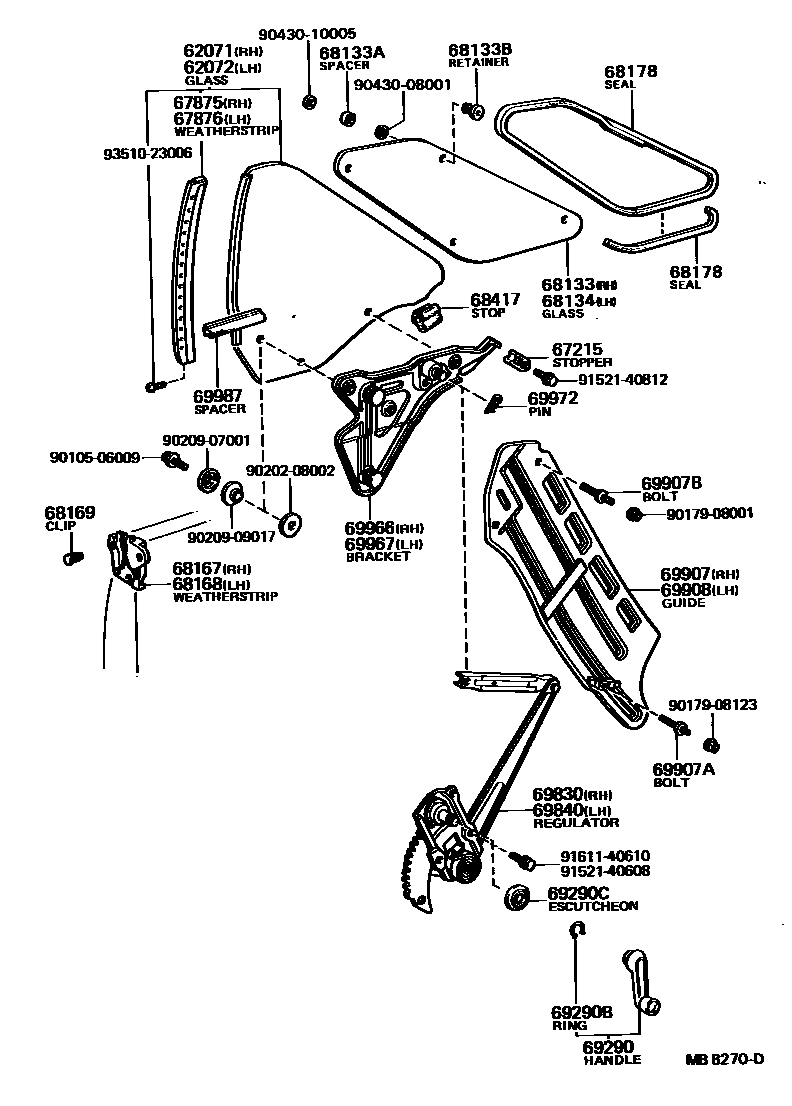

QUARTER WINDOW

0001 1 0002 1

62071GLASS SUB-ASSY, QUARTER, RH

main62071-95500iRT132,TT132..HT197809-198112

*TT,T=4.0

62072GLASS SUB-ASSY, QUARTER, LH

main62072-95500iRT132,TT132..HT197809-198112

*TT,T=4.0

67215STOPPER, QUARTER WINDOW, UPPER FRONT

main67215-95500iRT132,TT132..HT197809-198112

67875WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH

main67081-95500iRT132,TT132..HT197809-198112

67876WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH

main67082-95500iRT132,TT132..HT197809-198112

68133GLASS, QUARTER WINDOW, NO.2 RH

main68133-95501iRT132,TT132..HT197809-198112

*TT,T=4.0

sub68133-95502

main68133-95502iTT132..HT198008-198112

*TT,T=3.5

68133ASPACER, QUARTER WINDOW NO.2 GLASS

main68137-95500iRT132,TT132..HT197809-198112

68133BRETAINER, QUARTER WINDOW NO.2 GLASS

main68144-95500iRT132,TT132..HT197809-198112

68134GLASS, QUARTER WINDOW, NO.2 LH

main68134-95501iRT132,TT132..HT197809-198112

*TT,T=4.0

sub68134-95502

main68134-95502iTT132..HT198008-198112

*TT,T=3.5

68167WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH

main67941-95500iRT132,TT132..HT197809-198112

68168WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH

main67942-95500iRT132,TT132..HT197809-198112

68169CLIP, CORNER WEATHERSTRIP

main67868-30030iRT132,TT132..HT197809-198112

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-95500iRT132,TT132..HT197809-198112

L=1430

main68178-95500iRT132,TT132..HT197809-198112

L=285

68417STOPPER, REAR QUARTER GLASS, LOWER

main67218-95501iRT132,TT132..HT197809-198112

69290HANDLE ASSY, QUARTER WINDOW REGULATOR

main69260-12010-01iRT132,TT132..HT197809-198112

BLACK,BLACK,TRIM2#

sub69260-12010

main69260-12010-02iRT132,TT132..HT197809-198112

DARK WINE,RED/MAROON,TRIM3#

sub69260-12010

main69260-12010-05iRT132,TT132..HT197809-198008

BEIGE,BEIGE,TRIM4#

sub69260-12010

main69260-12010-36iTT132..HT198008-198112

LIGHT BROWN,BROWN,TRIM4#

sub69260-12010

69290BRING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)

main90520-01002iTT132..HT198008-198112

sub90520-01274

main90520-01274iRT132,TT132..HT197809-198008

69290CESCUTCHEON(FOR QUARTER WINDOW REGULATOR HANDLE)

main69266-22010iRT132,TT132..HT197903-198112

main69266-22010-01iRT132..HT197809-197903

BLACK,BLACK,TRIM2#

sub69266-22010

main69266-22010-02iRT132..HT197809-197903

DARK WINE,RED/MAROON,TRIM3#

sub69266-22010

main69266-22010-05iRT132..HT197809-197903

BEIGE,BEIGE,TRIM4#

sub69266-22010

69830REGULATOR ASSY, REAR QUARTER WINDOW, RH

main69803-95503iRT132,TT132..HT197809-198112

69840REGULATOR ASSY, REAR QUARTER WINDOW, LH

main69804-95503iRT132,TT132..HT197809-198112

69907GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH

main67405-95501iRT132,TT132..HT197809-198112

69907ABOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)

main90116-08287iRT132,TT132..HT197809-198112

69907BBOLT, STUD, NO.2(FOR QUARTER REGULATOR ROLLER GUIDE)

main90116-08311iRT132,TT132..HT197809-198112

69908GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH

main67406-95501iRT132,TT132..HT197809-198112

69966BRACKET, REAR QUARTER WINDOW GLASS, RH

main69905-95501iRT132,TT132..HT197809-198112

69967BRACKET, REAR QUARTER WINDOW GLASS, LH

main69906-95500iRT132,TT132..HT197809-198112

69972PIN, QUARTER GLASS CHANNEL SETTING

main69972-30010iRT132,TT132..HT197809-198112

69987SPACER, QUARTER GLASS BELT

main68167-95551iRT132,TT132..HT197809-198112

9010506009

main90105-06009

9017908001

main90179-08001

9017908123

main90179-08123

9020208002

main90202-08002

9020907001

main90209-07001

9020909017

main90209-09017

9043008001

main90430-08001

9043010005

main90430-10005

9152140608

main91521-40608

9152140812

main91521-40812

9161140610

main91611-40610

9351023006

main93510-23006

39 parts on this diagram · 2 diagrams in section
