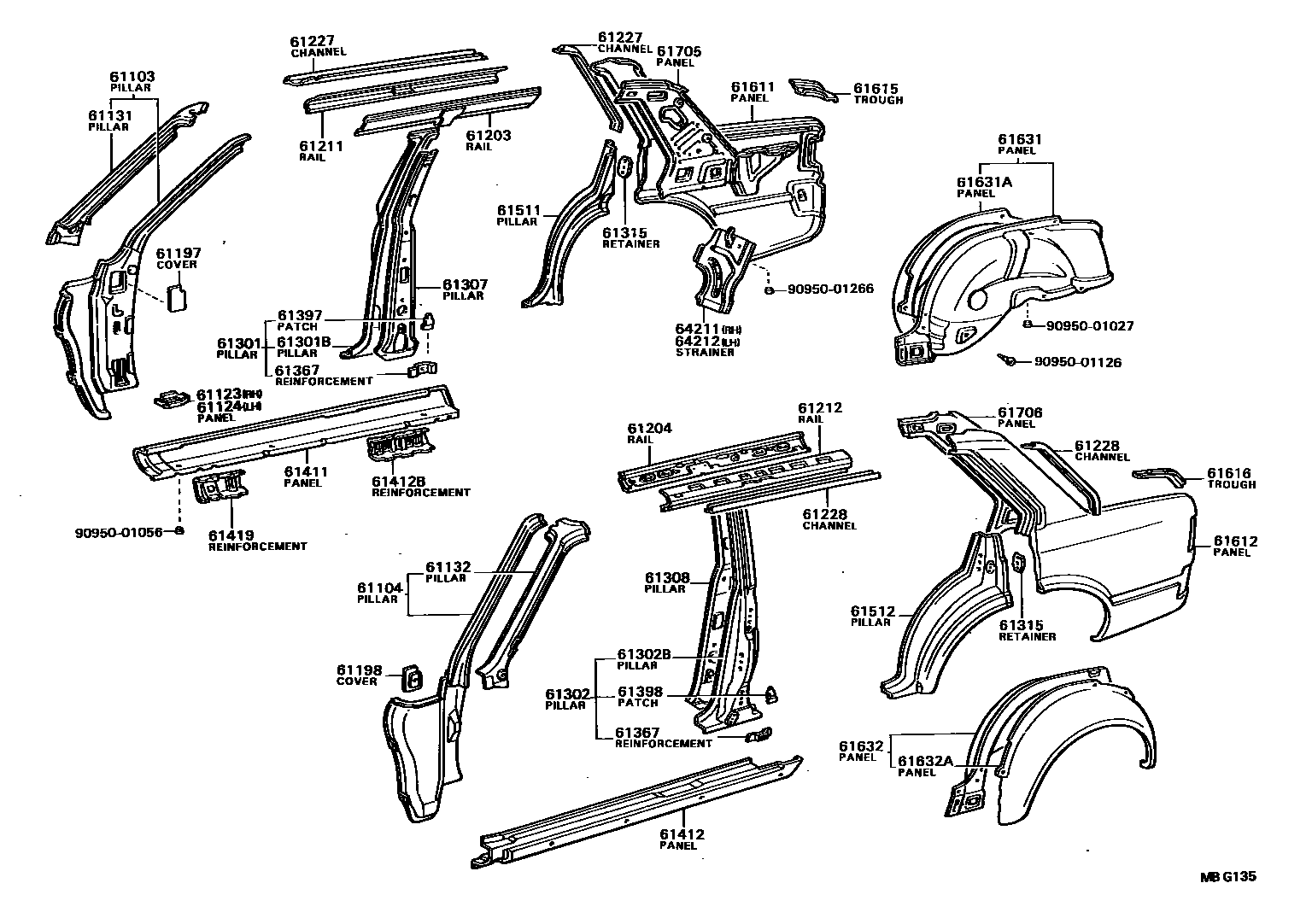

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-20900iRT133..STD;RT130,132,TT13#,XT130..(SED,WG)..RHD¥50,300197809-198301

main61021-20902iRT130,132,TT13#..(SED,WG)..LHD197809-198205

main61021-20904iRT132,133,TT132..LB..RHD197809-198301

main61021-20905iTT132..LB..LHD..GEN197809-198112

main61021-20907iTT132..EUR198008-198108

main61021-95502iRT132,TT132..HT..LHD197809-198112

main61021-95504iTT132..HT..RHD198008-198112

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-20900iRT133..STD;RT130,132,TT13#,XT130..(SED,WG)..RHD197809-198301

main61022-20903iRT130,132,TT13#..(SED,WG)..LHD197809-198205

main61022-20906iRT132,133,TT132..LB..RHD197809-198301

main61022-20907iRT132,TT132..LB..LHD197809-198205

main61022-95504iRT132,TT132..HT..LHD197809-198112

main61022-95506iTT132..HT..RHD198008-198112

61123PANEL, COWL SIDE LOWER, RH

main61123-20030iRT13#,TT13#,XT130..ARL,GEN,PHL¥660197809-198301

sub61123-20040

main61123-20040iTT132..EUR197809-198108

61124PANEL, COWL SIDE LOWER, LH

main61124-20030iRT13#,TT13#,XT130..ARL,GEN,PHL¥660197809-198301

sub61124-20040

main61124-20040iTT132..EUR197809-198108

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-20130iRT13#,TT13#,XT130..SED,WG197809-198301

main61131-20150iRT132,133,TT132..LB197809-198301

main61131-95501iRT132,TT132..HT197809-198112

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-20120iRT13#,TT13#,XT130..SED,WG197809-198301

main61132-20140iRT132,133,TT132..LB197809-198301

main61132-95501iRT132,TT132..HT197809-198112

61197COVER, FRONT PILLAR SERVICE HOLE, NO.1

main61197-20020iRT13#,TT13#,XT130197809-198301

61198COVER, FRONT PILLAR SERVICE HOLE, NO.2

main61198-20020iRT13#,TT13#,XT130197809-198301

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-20060iRT13#,TT13#,XT130..SED197809-198301

main61203-20070iRT132,133,TT132..LB¥5,600197809-198301

sub61203-20090

main61203-20090iTT132..GL198008-198108

W/SUN ROOF

main61203-91259iRT130,132,TT13#,XT130..WG197809-198301

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-20060iRT13#,TT13#,XT130..SED197809-198301

main61204-20070iRT132,133,TT132..LB¥5,600197809-198301

sub61204-20090

main61204-20090iTT132..GL198008-198108

W/SUN ROOF

main61204-91259iRT130,132,TT13#,XT130..WG197809-198301

61211RAIL, ROOF SIDE, OUTER RH

main61211-20090iRT13#,TT13#,XT130..SED197809-198301

main61211-20100iRT132,133,TT132..LB197809-198301

main61211-91257iRT130,132,TT13#,XT130..WG197809-198301

61212RAIL, ROOF SIDE, OUTER LH

main61212-20090iRT13#,TT13#,XT130..SED197809-198301

main61212-20100iRT132,133,TT132..LB197809-198301

main61212-91257iRT130,132,TT13#,XT130..WG197809-198301

61227CHANNEL, ROOF DRIP SIDE, REAR RH

main61207-20020iRT132,133,TT132..LB197809-198301

main61265-20010iRT13#,TT13#,XT130..SED197809-198301

CTR

main61265-91255iRT130,132,TT13#,XT130..WG197809-198301

CTR

main61267-20010iRT130,132,TT13#,XT130..SED..(DLX,STD)197809-198301

RR

main61267-91255iRT130,132,TT13#,XT130..WG197809-198301

RR

61228CHANNEL, ROOF DRIP SIDE, REAR LH

main61208-20030iRT132,133,TT132..LB197809-198301

main61266-20010iRT13#,TT13#,XT130..SED197809-198301

CTR

main61266-91255iRT130,132,TT13#,XT130..WG197809-198301

CTR

main61268-20010iRT130,132,TT13#,XT130..SED..(DLX,STD)197809-198301

RR

main61268-91255iRT130,132,TT13#,XT130..WG197809-198301

RR

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-20101iRT130,132,TT13#..SED,WG198008-198205

main61301-20131iTT132..LB¥36,000198008-198112

sub61301-20171

main61301-20171iRT132,133..GL198008-198301

main61301-20903iRT13#,TT13#,XT130..SED,WG197809-198008

sub61301-20913¥33,100

sub61343-20050

sub61367-20020

sub61397-20010

sub94110-50800¥80

main61301-20905iRT132,TT132..LB197809-198008

sub61301-20914¥33,100

sub61337-20030

sub61343-20060

sub61367-20020

sub61397-20010

sub94110-50800¥80

61301BPILLAR, CENTER BODY, OUTER RH

main61301-20908iRT130,132,TT13#..SED,WG198008-198205

sub61301-20912

sub94110-51000¥130

main61301-20910iTT132..LB¥34,400198008-198112

sub61301-20914¥33,100

sub94110-51000¥130

main61301-20911iRT132,133..GL¥33,000198008-198301

sub61301-20910¥34,400

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-20111iRT130,132,TT13#..SED,WG198008-198205

main61302-20141iTT132..LB¥36,000198008-198112

sub61302-20181

main61302-20181iRT132,133..GL198008-198301

main61302-20903iRT13#,TT13#,XT130..SED,WG197809-198008

sub61302-20913¥33,100

sub61344-20050

sub61368-20010

sub61398-20010

sub94110-50800¥80

main61302-20905iRT132,TT132..LB¥34,400197809-198008

sub61302-20914¥33,100

sub61344-20060

sub61398-20010

61302BPILLAR, CENTER BODY, OUTER LH

main61302-20908iRT130,132,TT13#..SED,WG¥41,500198008-198205

sub61302-20912

sub94110-51000¥130

main61302-20910iTT132..LB¥34,400198008-198112

sub61302-20914¥33,100

sub94110-51000¥130

main61302-20911iRT132,133..GL¥33,000198008-198301

sub61302-20910¥34,400

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61343-20050iRT13#,TT13#,XT130..SED,WG197809-198301

main61343-20060iRT132,133,TT132..LB197809-198301

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61344-20050iRT13#,TT13#,XT130..SED,WG197809-198301

main61344-20060iRT132,133,TT132..LB197809-198301

61315RETAINER, DOOR LOCK STRIKER PLATE

main61503-20030iRT13#,TT132..LB,SED,WG¥680197809-197811

main61623-20020iRT132,TT132..HT¥890197809-198112

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-20020iRT13#,TT13#,XT130..LB,SED,WG197809-198301

RH

main61368-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

LH

61397PATCH, CENTER BODY PILLAR, INNER RH

main61397-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

61398PATCH, CENTER BODY PILLAR, INNER LH

main61398-20010iRT13#,TT13#,XT130..LB,SED,WG197809-198301

61411PANEL, ROCKER, OUTER RH

main61401-95507iRT132,TT132..HT197809-198112

main61411-20180iRT13#,TT13#,XT130..LB,SED,WG¥22,300197809-198301

61412PANEL, ROCKER, OUTER LH

main61402-95507iRT132,TT132..HT197809-198112

main61412-20180iRT13#,TT13#,XT130..LB,SED,WG197809-198301

61412BREINFORCEMENT, ROCKER PANEL, NO.2

main61414-20010iRT13#,TT13#,XT130..LB,SED,WG¥1,350197809-198301

sub61414-20020

61419REINFORCEMENT, ROCKER OUTER PANEL

main61418-20030iRT13#,TT13#,XT130..LB,SED,WG¥1,060197809-198301

RH

sub61418-20040

main61419-20020iRT13#,TT13#,XT130..LB,SED,WG¥1,060197809-198301

LH

sub61419-20030

61511PILLAR, QUARTER LOCK, RH

main61511-20900iRT13#,TT132..LB,SED,WG¥9,400197809-197811

sub61511-20902¥9,400

main61511-20902iRT13#,TT132..LB,SED,WG¥9,400197811-197903

sub61511-20904

main61511-20904iRT13#,TT13#,XT130..LB,SED,WG197903-198008

sub61511-20908¥9,600

sub94110-50800¥80

main61511-20905iRT13#,TT13#,XT130..LB,SED,WG¥9,200198008-198301

sub61511-20908¥9,600

sub94110-51000¥130

61512PILLAR, QUARTER LOCK, LH

main61512-20900iRT13#,TT132..LB,SED,WG¥9,400197809-197811

sub61512-20902¥9,400

main61512-20902iRT13#,TT132..LB,SED,WG¥9,400197811-197903

sub61512-20904¥9,100

main61512-20904iRT13#,TT13#,XT130..LB,SED,WG¥9,100197903-198008

sub61512-20908¥9,600

sub94110-50800¥80

main61512-20905iRT13#,TT13#,XT130..LB,SED,WG¥9,200198008-198301

sub61512-20908¥9,600

sub94110-51000¥130

61611PANEL, QUARTER, RH

main61611-20905iRT132,TT132..HT197809-198112

main61611-20906iRT130,132,TT13#,XT130..SED..(DLX,STD)¥47,200197809-198301

main61611-20907iTT132..SED..GL197809-198112

main61611-20911iRT132,133,TT132..LB..GL197809-198301

main61611-20913iRT132,TT132..LB..DLX197809-198112

main61611-20915iRT130,132,TT13#,XT130..WG¥62,500197809-198301

61612PANEL, QUARTER, LH

main61612-20320iRT13#,TT13#,XT130..SED¥44,800197809-198301

main61612-20370iRT132,TT132..LB¥53,800197809-198112

main61612-91264iRT130,132,TT13#,XT130..WG197809-198301

main61612-95506iRT132,TT132..HT197809-198112

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20020iRT13#,TT13#,XT130..SED¥1,940197809-198301

main61621-20030iRT132,133,TT132..LB197809-198301

main61621-95500iRT132,TT132..HT197809-198112

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20020iRT13#,TT13#,XT130..SED¥1,940197809-198301

main61622-20030iRT132,TT132..LB197809-198112

main61622-95500iRT132,TT132..HT197809-198112

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-20170iRT132,133,TT132..LB197809-198301

main61603-20903iRT13#,TT13#,XT130..SED..LNK197809-198301

main61603-20905iRT130,132,TT133..SED..LEF197809-198205

main61603-91258iRT13#,TT13#,XT130..WG197809-198008

main61603-91259iRT130,132,TT13#,XT130..WG198008-198301

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20901iRT132,TT133..LEF198008-198205

main61631-20902iRT13#,TT13#,XT130..LNK198008-198301

main61631-91259iRT130,132,TT13#,XT130..WG198008-198301

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-20140iRT132,133,TT132..LB197809-198301

main61604-20903iRT13#,TT13#,XT130..SED..LNK197809-198301

main61604-20904iRT130,132,TT133..SED..LEF197809-198205

main61604-91258iRT13#,TT13#,XT130..WG197809-198008

main61604-91259iRT130,132,TT13#,XT130..WG198008-198301

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20070iRT13#,TT13#,XT130..LB,SED,WG198008-198301

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-20070iRT13#,TT13#,XT130..SED197809-198301

main61705-20080iRT132,TT132..LB197809-198005

sub61705-20909

sub61711-20900

main61705-20090iTT132..GL198008-198108

W/SUN ROOF

main61705-20909iRT132,133,TT132..LB198005-198301

main61705-91260iRT130,132,TT13#,XT130..WG197809-198301

main61705-95500iRT132,TT132..HT197809-198112

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-20060iRT13#,TT13#,XT130..SED197809-198301

main61706-20070iRT132,TT132..LB197809-198005

sub61706-20909

sub61712-20900

main61706-20080iTT132..GL198008-198108

W/SUN ROOF

main61706-20909iRT132,133,TT132..LB198005-198301

main61706-91260iRT130,132,TT13#,XT130..WG197809-198301

main61706-95500iRT132,TT132..HT197809-198112

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-20070iRT13#,TT13#,XT130..SED197809-198301

main64211-95501iRT132,TT132..HT197809-198008

main64211-95502iTT132..HT198008-198112

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-20080iRT13#,TT13#,XT130..SED197809-198301

main64212-95501iRT132,TT132..HT197809-198008

main64212-95502iTT132..HT198008-198112

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001126

main90950-01126¥360

9095001266

main90950-01266¥220

46 parts on this diagram · 7 diagrams in section
