MAT & CARPET

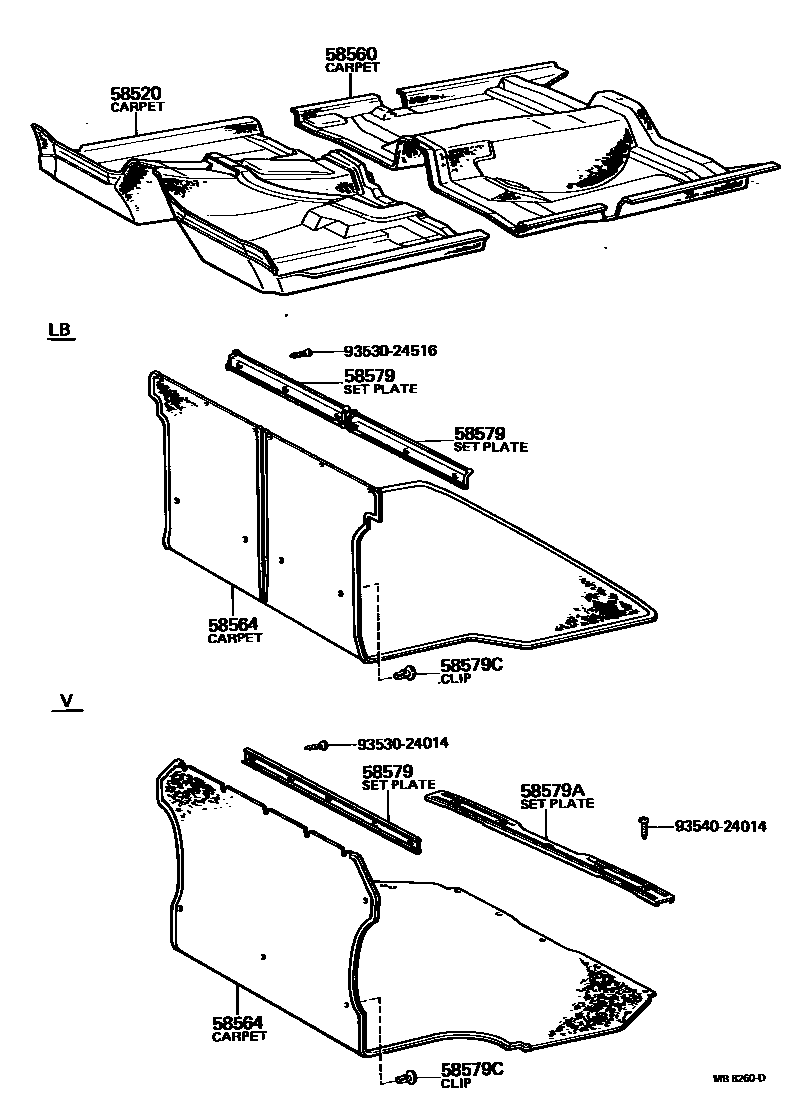

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-20180-01i197809-198008
W/O CONSOLE,BLACK,BLACK,TRIM2#
main58510-20180-02i197809-198008
W/O CONSOLE,DARK WINE,RED/MAROON,TRIM3#
main58510-20180-05i197809-198008
W/O CONSOLE,BEIGE,BEIGE,TRIM4#
main58510-20181-03i198008-198112
GRAY,GRAY,TRIM2#
main58510-20181-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
main58510-20200-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20200-02i197809-198205
DARK WINE,RED/MAROON,TRIM3#
main58510-20200-03i198008-198205
GRAY,GRAY,TRIM2#
main58510-20200-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20200-06i198008-198205
LIGHT BROWN,BROWN,TRIM4#
main58510-20260-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20260-02i197809-198112
DARK WINE,RED/MAROON,TRIM3#
main58510-20260-03i198008-198108
GRAY,GRAY,TRIM2#
main58510-20260-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20260-06i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main58510-20300-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20300-02i197809-198008
DARK WINE,RED/MAROON,TRIM3#
main58510-20300-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20301-02i198008-198108
DARK WINE,RED/MAROON,TRIM3#
main58510-20301-03i198008-198108
GRAY,GRAY,TRIM2#
main58510-20301-06i198008-198108
LIGHT BROWN,BROWN,TRIM4#
main58510-20380-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20380-02i197809-198112
DARK WINE,RED/MAROON,TRIM3#
main58510-20380-03i198008-198112
GRAY,GRAY,TRIM2#
main58510-20380-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20380-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
main58510-20390-01i197809-198008
W/CONSOLE,BLACK,BLACK,TRIM2#
main58510-20390-02i197809-198008
W/CONSOLE,DARK WINE,RED/MAROON,TRIM3#
main58510-20390-05i197809-198008
W/CONSOLE,BEIGE,BEIGE,TRIM4#
main58510-20391-02i198008-198112
W/CONSOLE,DARK WINE,RED/MAROON,TRIM3#
main58510-20391-03i198008-198112
W/CONSOLE,GRAY,GRAY,TRIM2#
main58510-20391-06i198008-198112
W/CONSOLE,LIGHT BROWN,BROWN,TRIM4#
main58510-20400-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20400-02i197809-198008
DARK WINE,RED/MAROON,TRIM3#
main58510-20400-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20410-01i197809-198008
BLACK,BLACK,TRIM2#
main58510-20410-02i197809-198008
DARK WINE,RED/MAROON,TRIM3#
main58510-20410-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58510-20411-02i198008-198301
DARK WINE,RED/MAROON,TRIM3#
main58510-20411-03i198008-198301
GRAY,GRAY,TRIM2#
main58510-20411-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main58510-20600-02i198008-198112
DARK WINE,RED/MAROON,TRIM3#
main58510-20600-03i198008-198112
GRAY,GRAY,TRIM2#
main58510-20600-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
main58510-20620-02i198008-198112
DARK WINE,RED/MAROON,TRIM3#
main58510-20620-03i198008-198112
GRAY,GRAY,TRIM2#
main58510-20620-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
58560CARPET ASSY, FLOOR, REAR
main58540-20300-01i197809-198008
BLACK,BLACK,TRIM2#
main58540-20300-01i198008-198301
CUT PILE,BLACK,BLACK,TRIM2#
main58540-20300-02i198008-198301
CUT PILE,DARK WINE,RED/MAROON,TRIM3#
main58540-20300-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main58540-20300-03i198008-198301
GRAY,GRAY,TRIM2#
main58540-20300-05i198008-198101
CUT PILE,BEIGE,BEIGE,TRIM4#
main58540-20300-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58540-20300-06i198101-198301
CUT PILE,LIGHT BROWN,BROWN,TRIM4#
main58540-20300-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main58540-20330-01i197809-198008
BLACK,BLACK,TRIM2#
main58540-20330-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main58540-20330-03i198008-198301
GRAY,GRAY,TRIM2#
main58540-20330-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58540-20330-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
main58540-20390-02i198008-198108
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-20390-03i198008-198108
W/O SEAT BELT,GRAY,GRAY,TRIM2#
main58540-20390-06i198008-198108
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-91260-01i197809-198008
W/O SEAT BELT,BLACK,BLACK,TRIM2#
main58540-91260-03i198008-198205
W/O SEAT BELT,GRAY,GRAY,TRIM2#
main58540-91260-05i197809-198008
W/O SEAT BELT,BEIGE,BEIGE,TRIM4#
main58540-91260-06i198008-198205
W/O SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
main58540-91261-01i197908-198301
BLACK,BLACK,TRIM2#
sub58540-91260
main58540-91261-05i197908-198008
BEIGE,BEIGE,TRIM4#
sub58540-91260
main58540-91261-06i198111-198301
LIGHT BROWN,BROWN,TRIM4#
sub58540-91260
main58540-91262-01i198008-198301
CUT PILE,BLACK,BLACK,TRIM2#
main58540-91262-05i198008-198101
BEIGE,BEIGE,TRIM4#
main58540-91262-06i198101-198301
CUT PILE,LIGHT BROWN,BROWN,TRIM4#
main58540-91266-03i197809-198205
W/SEAT BELT,GRAY,GRAY,TRIM2#
sub58540-91260
main58540-91266-05i197809-198008
W/SEAT BELT,BEIGE,BEIGE,TRIM4#
sub58540-91260
main58540-91266-06i198008-198205
W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#
sub58540-91260
main58540-95507-01i197809-198008
BLACK,BLACK,TRIM2#
main58540-95507-02i197809-198112
DARK WINE,RED/MAROON,TRIM3#
main58540-95507-03i198008-198112
GRAY,GRAY,TRIM2#
main58540-95507-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58540-95507-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
58564CARPET, REAR FLOOR
main58570-91255-01i197809-198008
BLACK,BLACK,TRIM2#
main58570-91255-03i198008-198112
GRAY,GRAY,TRIM2#
main58570-91255-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58570-91255-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
main58570-91256-01i198008-198301
CUT PILE,BLACK,BLACK,TRIM2#
main58570-91256-05i198008-198101
BEIGE,BEIGE,TRIM4#
main58570-91256-06i198101-198301
CUT PILE,LIGHT BROWN,BROWN,TRIM4#
main58570-91257-01i197908-198301
BLACK,BLACK,TRIM2#
main58570-91257-05i197908-198008
BEIGE,BEIGE,TRIM4#
main58571-20010-01i197809-198008
BLACK,BLACK,TRIM2#
main58571-20010-02i197809-198112
DARK WINE,RED/MAROON,TRIM3#
main58571-20010-03i198008-198112
GRAY,GRAY,TRIM2#
main58571-20010-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58571-20010-06i198008-198112
LIGHT BROWN,BROWN,TRIM4#
main58571-20020-01i197809-198008
BLACK,BLACK,TRIM2#
main58571-20020-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
main58571-20020-03i198008-198301
GRAY,GRAY,TRIM2#
main58571-20020-05i197809-198008
BEIGE,BEIGE,TRIM4#
main58571-20020-06i198008-198301
LIGHT BROWN,BROWN,TRIM4#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58583-20020i197809-198301
main71897-21010i197809-198301
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58573-91257i197809-198301
58579CCLIP, REAR FLOOR CARPET SET
main90467-07162-01i197809-198009
BLACK,BLACK,TRIM2#
sub90467-07162
main90467-07162-02i197809-198301
DARK WINE,RED/MAROON,TRIM3#
sub90467-07162
main90467-07162-05i197809-198101
BEIGE,BEIGE,TRIM4#
sub90467-07162
main90467-07162-26i198008-198301
LIGHT BROWN,BROWN,TRIM4#
sub90467-07162
main90467-07162-33i198008-198301
GRAY,GRAY,TRIM2#
sub90467-07162
9353024014
main93530-24014
9353024516
main93530-24516
9354024014
main93540-24014

9 parts on this diagram · 1 diagram in section
