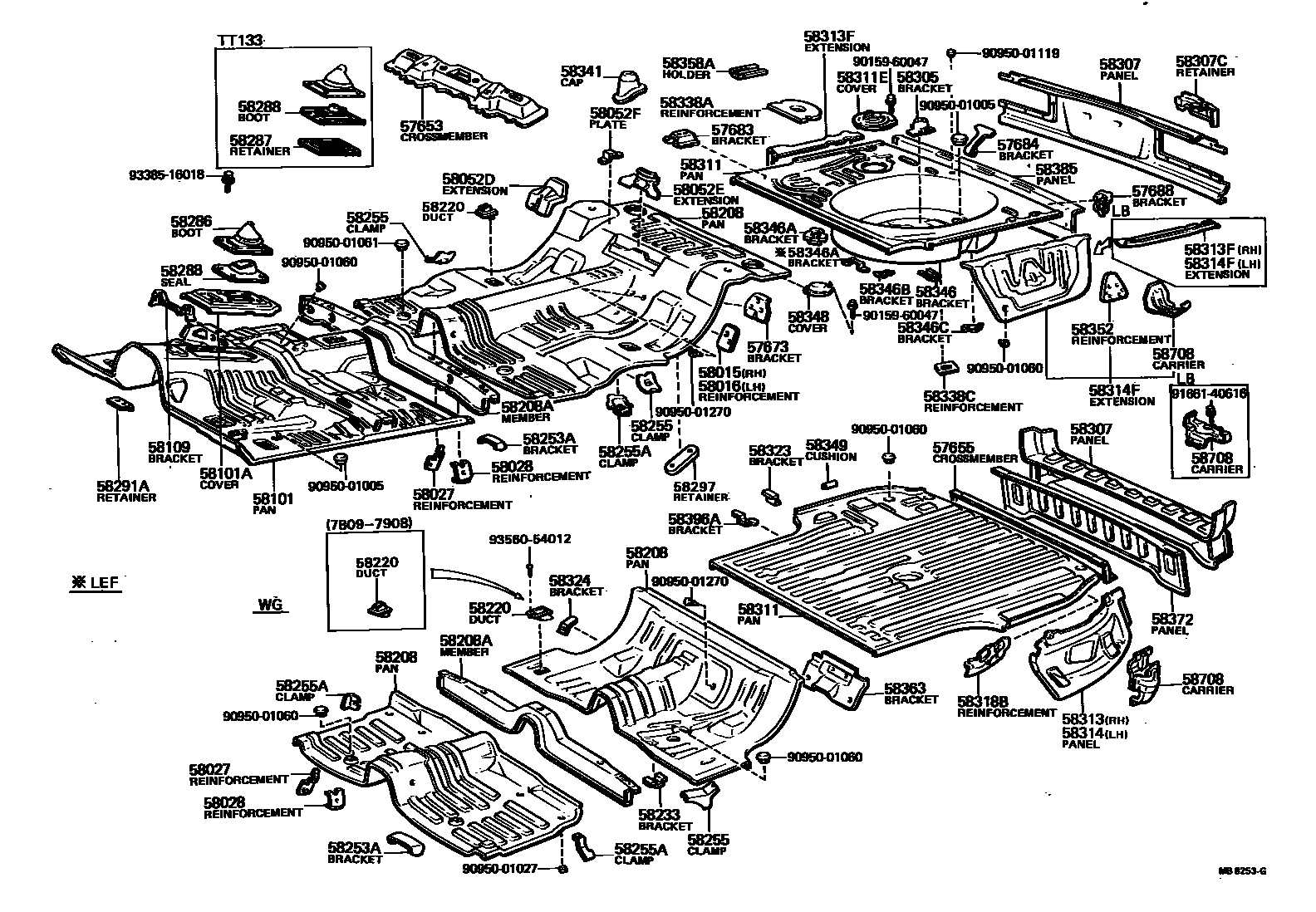

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

57653MEMBER, REAR FLOOR CROSS, NO.3

main57606-20040iRT130,132,TT133..SED..LEF197809-198205

57655MEMBER, REAR FLOOR CROSS, NO.5

main57609-91255iRT130,132,TT13#,XT130..WG197809-198301

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-20030iRT132,133,TT132..LB197809-198301

57683BRACKET, FUEL TANK, FRONT

main58061-20021iRT130,132..SED..LEF197809-198205

RH

main58062-20020iRT130,132..SED..LEF197809-198205

LH

57684BRACKET, FUEL TANK, REAR

main57683-20010iRT13#,TT13#,XT130..LNK197809-198301

main57683-20020iRT130,132,TT133..SED..LEF197809-198205

57688BRACKET, EXHAUST PIPE CLAMP, NO.2

main57656-20040iRT130,132,TT133..SED..LEF197809-198205

FR

main57657-20020iRT13#,TT13#,XT130..HT,LB,SED197809-198301

RR

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-20010iRT13#,TT13#,XT130..LNK197809-198008

sub58015-20011

main58015-20011iRT13#,TT13#,XT130..LNK198008-198301

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58016-20010iRT13#,TT13#,XT130..LNK197809-198008

sub58016-20011

main58016-20011iRT13#,TT13#,XT130..LNK198008-198301

58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1

main58161-20030iRT13#,TT13#,XT130197809-198301

main58273-91255iTT132..RHD..DLX..LEF198008-198301

CTR FLOOR PAN

58028REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-20010iRT130,132,TT13#,XT130..WG197809-198301

main58162-20030iRT130,132,TT133..SED..LEF197809-198205

58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY

main64217-20010iRT13#,TT13#,XT130..SED..LNK197809-198301

RH

main64217-95500iRT132,TT132..HT197809-198112

RH

main64218-20010iRT13#,TT13#,XT130..SED..LNK197809-198301

LH

main64218-95500iRT132,TT132..HT197809-198112

LH

58052EEXTENSION, CENTER FLOOR TO BRACE

main64227-20030iRT13#,TT13#,XT130..SED..LNK197809-198301

58052FPLATE, LUGGAGE HOLD BELT ANCHOR

main58422-14030iRT132,133,TT132..LB197809-198301

58101PAN SUB-ASSY, FRONT FLOOR

main58101-20900iRT13#,TT132197809-197907

sub58101-20902

sub58041-14051

sub58152-14081

main58101-20902iRT13#,TT132197907-197908

sub58101-20904

main58101-20904iRT13#,TT13#,XT130197908-198008

sub58111-14040

sub57257-14040

sub57258-14040

sub57408-14010

sub57417-14021

sub57418-14011

sub58131-12020

sub58132-14050

sub58135-20010

sub58141-14010

sub58171-14021

sub58183-14020

sub58184-14020

sub58266-14040

sub58277-14020

sub58278-14020

sub58294-14030

sub90461-07004

main58111-14040iRT13#,TT13#,XT130198008-198301

SEPARATE SEAT

main58111-20042iTT13#..SED..LHD..STD198008-198112

SPLIT SEAT

58101ACOVER, TRANSMISSION AUXILIARY

main58281-20030iTT133,XT130197908-198301

main58281-20040iRT132,133,TT132..ATM197809-198301

main58281-20050iRT13#,TT132..MTM197809-198301

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-20050iRT13#,TT13#,XT130197809-198301

58208PAN, CENTER FLOOR

main58211-20140iRT13#,TT13#,XT130..(HT,SED)..LNK197809-198301

main58211-20150iRT132,133,TT132..LB197809-198301

main58211-20160iRT130,132,TT133..SED..LEF197809-198205

main58211-91255iRT13#,TT132..WG197809-197908

RR

main58211-91257iRT130,132,TT13#,XT130..WG197908-198301

RR

main58212-91255iRT130,132,TT13#,XT130..WG197809-198301

FR

58208AMEMBER, CENTER FLOOR CROSS, NO.1

main57407-91255iRT130,132,TT13#,XT130..WG197809-198301

main57461-14020iRT13#,TT13#,XT130..HT,LB,SED197809-198301

58220DUCT ASSY, CENTER FLOOR VENT

main62860-20010iRT13#,TT13#,XT130..(LB,SED)..LNK197809-198301

main62860-91255iRT13#..WG197809-197908

main62860-91256iRT13#,XT130..WG197908-198301

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-91255iRT130,132,TT13#,XT130..WG197809-198301

58253ABRACKET, PARKING CABLE CLAMP

main58207-20050iRT13#,TT13#,XT130197809-198301

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58038-91255iRT130,132,TT13#,XT130..WG197809-198301

RH

main58039-91256iRT130,132,TT13#,XT130..WG197809-198301

LH

main58207-14020iRT13#,TT13#,XT130..HT,LB,SED197809-198301

RH

main58208-14020iRT13#,TT13#,XT130..HT,LB,SED197809-198301

LH

58255ACLAMP, PARKING BRAKE CABLE, NO.2

main58253-20020iRT130,132,TT133..SED..LEF197809-198205

RH

main58254-20020iRT130,132,TT133..SED..LEF197809-198205

LH

main58265-91255iRT130,132,TT13#,XT130..WG197809-198301

RH

main58276-91255iRT130,132,TT13#,XT130..WG197809-198301

LH

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-20030iRT13#..MTM197809-198301

W/CONSOLE

main58280-20040iRT130,132..LEF197809-198205

W/O CONSOLE

main58286-20070iTT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F197908-198112

W/CONSOLE

main58286-21010iTT132..STD197908-198112

W/O CONSOLE

58287RETAINER, SHIFT LEVER BOOT

main58287-20050iTT133197908-198112

58288SEAL, SHIFT LEVER BOOT

main58288-14040iTT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F197908-198112

main58288-20050iRT13#..MTM197809-198301

58291ARETAINER, ACCELERATOR PEDAL

main58291-20010iRT130,132,TT13#,XT130197809-198301

RH

main58294-14030iRT130,132,TT13#,XT130198008-198301

LH

58297RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR

main58297-20010iRT13#,TT13#,XT130..LNK197809-198301

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iRT13#,TT13#,XT130..HT,LB,SED197809-198301

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20260iRT13#,TT13#,XT130..SED197809-198111

main58307-20300iRT132,133,TT132..LB197809-198301

main58307-20350iXT130..LNK198008-198301

main58307-91256iRT130,132,TT13#,XT130..WG197809-198301

main58307-91257iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

main58307-95507iRT132,TT132..HT197809-198008

sub58307-95512

main58307-95512iTT132..HT198008-198112

58307CRETAINER, LOWER BACK TRIM

main58377-20010iRT132,133,TT132..LB197809-198301

RH

main58379-20030iRT132,133,TT132..LB197809-198301

LH

58311PAN, REAR FLOOR

main58311-20110iXT130..LNK197809-198111

main58311-20121iTT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK198012-198112

SAUDI ARABIA SPEC

main58311-20130iRT132..HT;RT130..LNK;RT132,TT132..SED..RHD..DLX197912-198301

main58311-20130iTT132..(HT,LB)..5F..GEN197906-198008

W/URETHANE BUMPER

main58311-20150iRT130,132,TT133..SED..LEF197809-198205

main58311-91257iRT130,132,TT13#,XT130..WG197809-198301

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-14020iRT13#,TT13#,XT130..HT,LB,SED197809-198301

58313PANEL, REAR FLOOR SIDE, RH

main58313-91257iRT130,132,TT13#,XT130..WG197809-198301

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20050iRT13#,TT13#,XT130..HT,SED197809-198301

main58313-20060iRT132,133,TT132..LB197809-198301

58314PANEL, REAR FLOOR SIDE, LH

main58314-91256iRT130,132,TT13#,XT130..WG197809-198301

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-20070iRT13#,TT13#,XT130..HT,SED197809-198301

main58314-20060iRT132,133,TT132..LB197809-198301

58318BREINFORCEMENT, WASHER TANK BRACKET

main58318-91255iRT130,132,TT13#,XT130..WG197809-198301

58323BRACKET SUB-ASSY, INLET TUBE PROTECTOR

main57245-21010iRT13#,TT132..WG197809-197907

58324BRACKET, FLEXIBLE HOSE

main58326-91255iRT130,132,TT13#,XT130..WG197809-198301

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58336-20010iRT130,132,TT133..SED..LEF197809-198205

58338CREINFORCEMENT, SPARE WHEEL CLAMP

main58338-20010iRT130,132,TT133..SED..LEF197901-198205

58341CAP, REAR SHOCK ABSORBER

main58341-20040iRT130,132,TT133..SED..LEF197809-198205

RH

main58342-20040iRT130,132,TT133..SED..LEF197809-198205

LH

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58345-14010iRT13#,TT13#,XT130..HT,LB,SED197809-198301

sub58345-14020

58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-14010iRT13#,TT13#,XT130..LNK197809-198301

main58346-20070iRT130,132,TT133..SED..LEF197809-198205

58346BBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-20020iRT130,132,TT133..SED..LEF197809-198205

58346CBRACKET, REAR FLOOR HEAT INSULATOR, NO.4

main58332-20020iRT130,132,TT133..SED..LEF197809-198205

58348COVER, REAR ABSORBER SERVICE HOLE

main58348-14010iRT130,132,TT13#,XT130..LNK197809-198111

RH

main58348-14020iTT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK;RT130,133,TT133,XT130..LNK198111-198301

RH

main58349-14010iRT130,132,TT13#,XT130..LNK197809-198111

LH

58349CUSHION, REAR FLOOR SIDE

main58349-91600iRT130,132,TT13#,XT130..WG197809-198301

58352REINFORCEMENT, JACK CLAMP

main58352-14050iRT13#,TT13#,XT130..HT,SED197809-198301

58358AHOLDER, FUEL TANK CUSHION

main58358-20010iRT130,132,TT133..SED..LEF197809-198205

58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER

main58205-20070iRT130,132,TT133..SED..LEF197809-198205

main58235-91255iRT130,132,TT13#,XT130..WG197809-198301

58372PANEL, BODY LOWER BACK, INNER

main58372-91256iRT130,132,TT13#,XT130..WG197809-198301

58385PANEL, REAR VALANCE

main58381-20030iXT130..LNK197809-198205

main58381-20040iRT132..HT;RT130..LNK;RT132,TT132..SED..RHD..DLX197906-198008

W/URETHANE BUMPER

main58381-20040iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

main58381-20040iRT13#,TT13#..LNK198008-198301

58396ABRACKET, WIRE HARNESS CLAMP

main58396-91255iRT130,132,TT13#,XT130..WG197809-198301

58708CARRIER SUB-ASSY, JACK

main58709-91255iRT130,132,TT13#,XT130..WG197809-198301

main58791-14010iRT13#,TT13#,XT130..HT,SED197809-198301

sub58791-12050

main58791-20020iRT132,133,TT132..LB197809-198301

9015960047

main90159-60047

9095001005

main90950-01005

9095001027

main90950-01027

9095001060

main90950-01060

9095001061

main90950-01061

9095001119

main90950-01119

9095001270

main90950-01270

9166140616

main91661-40616

9338516018

main93385-16018

9356054012

main93560-54012

66 parts on this diagram · 3 diagrams in section
