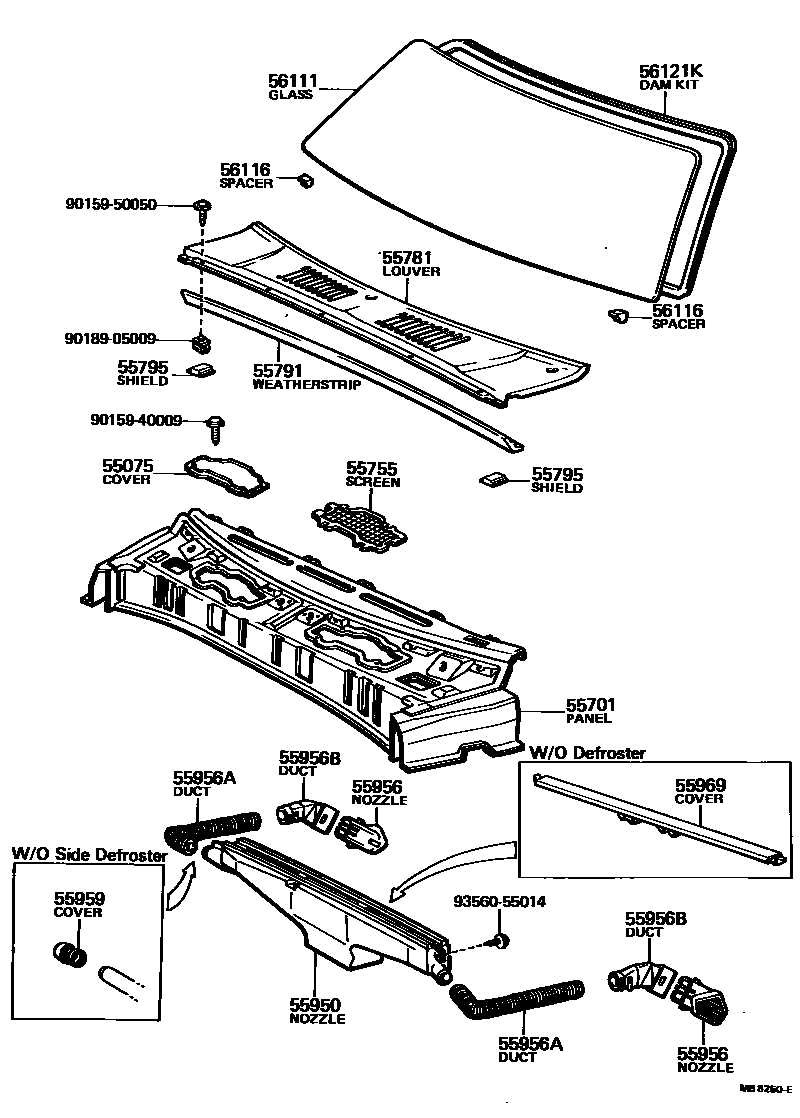

COWL PANEL & WINDSHIELD GLASS

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-20030iRT13#,TT13#,XT130197809-198301

55701PANEL SUB-ASSY, COWL

main55700-20110iRT13#..RHD197809-198008

main55700-20120iTT13#..RHD;RT133,XT130197809-198301

W/HEATER

main55700-20130iRT130,132..RHD197809-198112

W/HEATER

main55700-20160iRT130,132,TT133..LHD197809-198205

main55700-20190iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

W/HEATER

main55700-20230iTT133..RHD197908-198112

55755SCREEN, HEATER AIR DUCT

main55076-20040iRT13#,TT13#,XT130197809-198301

55781LOUVER, COWL VENTILATOR

main55781-20070iRT13#,TT13#,XT130..RHD197809-198111

main55781-20080iRT13#,TT13#..LHD197809-198008

main55781-20081iRT130,132,TT13#..LHD198008-198205

main55781-20090iTT13#..RHD;RT132,133..ARL198008-198301

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-20040iRT13#,TT13#,XT130197809-198301

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55785-20030iRT13#,TT13#,XT130197809-198301

55950NOZZLE ASSY, DEFROSTER

main55950-20020iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55950-20030iRT130,132,TT13#..LHD..(EUR,GEN)197809-198205

55956NOZZLE, SIDE DEFROSTER

main55961-20040-01iRT13#,TT13#,XT130197809-198301

RH,BLACK,BLACK,TRIM2#

sub55961-20040

main55961-20040-02iRT13#,TT13#,XT130..HT,LB,SED197809-198301

RH,DARK WINE,RED/MAROON,TRIM3#

sub55961-20040

main55961-20040-05iRT13#,TT13#,XT130197809-198101

RH,BEIGE,BEIGE,TRIM4#

sub55961-20040

main55961-20040-06iRT13#,TT13#198008-198301

RH,LIGHT BROWN,BROWN,TRIM4#

sub55961-20040

main55962-20040-01iRT13#,TT13#,XT130197809-198301

LH,BLACK,BLACK,TRIM2#

sub55962-20040

main55962-20040-02iRT13#,TT13#,XT130..HT,LB,SED197809-198301

LH,DARK WINE,RED/MAROON,TRIM3#

sub55962-20040

main55962-20040-05iRT13#,TT13#,XT130197809-198101

LH,BEIGE,BEIGE,TRIM4#

sub55962-20040

main55962-20040-06iRT13#,TT13#198008-198301

LH,LIGHT BROWN,BROWN,TRIM4#

sub55962-20040

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-14010iRT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-20030iRT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

RH

main55973-20030iRT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

LH

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iRT13#,TT132..GEN,PHL197809-198205

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55099-20010iRT130,TT133197809-198112

56111GLASS, WINDSHIELD

main56111-20260iRT130,132,TT13#..STD197809-198205

*TEM,T=5.0

sub56111-20280

main56111-20270iRT13#,TT13#..(SED,WG)..(EUR,GEN)197809-198205

*TT,T=5.0

sub56111-20290

main56111-20280iRT13#,TT13#,XT130..STD..(ARL,GEN)197809-198301

*LAM,T=5.3

sub56111-20290

main56111-20290iRT13#,TT13#..(SED,WG)..(EUR,GEN)197809-198205

*TL,T=5.3

main56111-20300iRT132,TT132..(HT,LB)..(EUR,GEN)197809-198112

*TT,T=5.0

sub56111-20310

main56111-20310iRT132,TT132..(HT,LB)..(EUR,GEN)197809-198112

*TL,T=5.3

main56111-20320iRT132..ARL197908-198008

SUN SHADE,*LAM,T=5.3

sub56111-20321

main56111-20321iRT132,133..ARL198008-198301

SUN SHADE,*LAM,T=5.3

sub56111-20340

56116SPACER, WINDSHIELD GLASS

main56116-20030iRT13#,TT13#..LB,SED,WG197809-198301

main56116-20040iRT132,TT132..HT197809-198112

56121KDAM KIT, WINDSHIELD GLASS

main04562-14010iRT13#,TT13#197809-198301

sub04562-30040

9015940009

main90159-40009

9015950050

main90159-50050

9018905009

main90189-05009

9356055014

main93560-55014

19 parts on this diagram · 1 diagram in section
