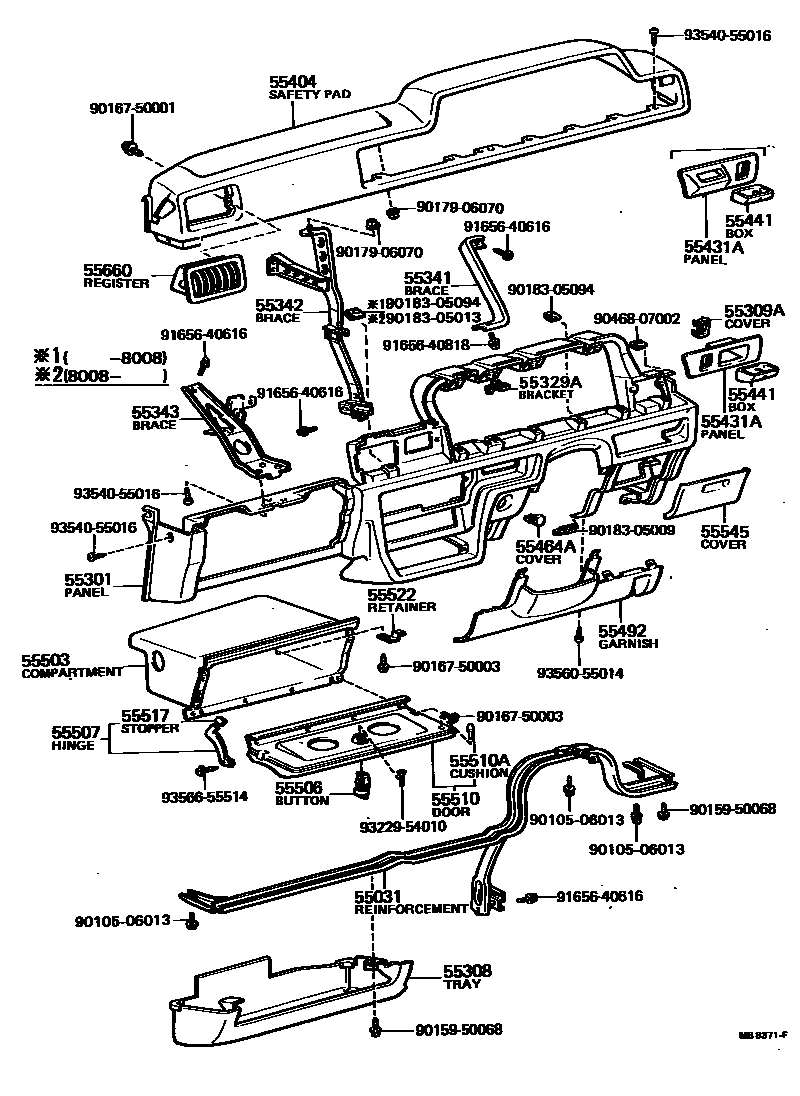

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-20070iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55305-20080iRT130,132,TT13#..LHD197809-198301

55301PANEL SUB-ASSY, INSTRUMENT

main55311-20100-01iRT13#,TT13#,XT130..RHD197809-198007

BLACK,BLACK,TRIM2#

sub55311-20101¥19,400

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20100-02iRT13#,TT13#,XT130..(LB,SED)..RHD197809-198007

DARK WINE,RED/MAROON,TRIM3#

sub55311-20101¥19,400

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20100-05iRT13#,TT13#,XT130..RHD197809-198007

BEIGE,BEIGE,TRIM4#

sub55311-20101¥19,400

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20101-01iRT133;RT132,TT13#,XT130..RHD198007-198301

BLACK,BLACK,TRIM2#

sub55311-20101¥19,400

main55311-20101-02iRT133;RT132,TT13#,XT130..(HT,LB,SED)..RHD198007-198301

DARK WINE,RED/MAROON,TRIM3#

sub55311-20101¥19,400

main55311-20101-05iRT132,TT13#,XT130..RHD198007-198101

BEIGE,BEIGE,TRIM4#

sub55311-20101¥19,400

main55311-20101-06iTT13#..RHD;RT132,133,XT130..ARL198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55311-20101¥19,400

main55311-20110-01iRT13#,TT13#..LHD197809-198007

BLACK,BLACK,TRIM2#

sub55311-20111¥20,800

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20110-02iRT13#,TT13#..(HT,LB,SED)..LHD197809-198007

DARK WINE,RED/MAROON,TRIM3#

sub55311-20111¥20,800

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20110-05iRT13#,TT13#..LHD197809-198007

BEIGE,BEIGE,TRIM4#

sub55311-20111¥20,800

sub55329-20020

sub86211-20090

sub86212-20080

main55311-20111-01iRT130,132,TT13#..LHD198007-198205

BLACK,BLACK,TRIM2#

sub55311-20111¥20,800

main55311-20111-02iRT130,132,TT13#..(HT,LB,SED)..LHD198007-198205

DARK WINE,RED/MAROON,TRIM3#

sub55311-20111¥20,800

main55311-20111-05iRT13#,TT13#..LHD198007-198008

BEIGE,BEIGE,TRIM4#

sub55311-20111¥20,800

main55311-20111-06iRT130,132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub55311-20111¥20,800

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-20010-01iRT133;RT130,132,TT13#,XT130..RHD197809-198301

BLACK,BLACK,TRIM2#

sub55601-20010¥2,200

main55601-20010-02iRT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub55601-20010¥2,200

main55601-20010-05iRT13#,TT13#,XT130..RHD197809-198101

BEIGE,BEIGE,TRIM4#

sub55601-20010¥2,200

main55601-20010-06iTT13#..RHD;RT132,133,XT130..ARL198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55601-20010¥2,200

main55601-20020-01iRT132,TT13#..LHD197809-198205

BLACK,BLACK,TRIM2#

sub55601-20020¥2,300

main55601-20020-02iRT130,132,TT13#..(HT,LB,SED)..LHD..(EUR,GEN)197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub55601-20020¥2,300

main55601-20020-05iTT132..LHD..(DLX,GL);TT132..LHD..STD..LNK;RT13#,TT133..LHD..GEN197809-198008

BEIGE,BEIGE,TRIM4#

sub55601-20020¥2,300

main55601-20020-06iRT132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub55601-20020¥2,300

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011iRT13#,TT13#,XT130¥440197809-198301

55329ABRACKET, INSTRUMENT PANEL METER

main55329-20020iXT130198007-198101

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-20050iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55341-20060iRT130,132,TT13#..LHD197809-198205

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-20030iRT13#,TT13#,XT130..RHD¥2,470197809-198007

sub55307-20031

main55307-20031iRT133;RT132,TT13#,XT130..RHD198007-198301

main55307-20040iRT130,132,TT13#..LHD197809-198205

55343BRACE, INSTRUMENT PANEL, NO.3

main55308-20100iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55308-20110iRT130,132,TT13#..LHD197809-198205

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20360-01iXT130197809-198010

BLACK,BLACK,TRIM2#

sub55401-20380¥44,800

main55401-20360-02iXT130..LNK197809-198010

DARK WINE,RED/MAROON,TRIM3#

sub55401-20380¥44,800

main55401-20360-05iXT130197809-198010

BEIGE,BEIGE,TRIM4#

sub55401-20380¥44,800

main55401-20370-01iRT13#,TT13#..LHD197809-198008

BLACK,BLACK,TRIM2#

sub55401-20390¥46,800

main55401-20370-02iRT13#,TT13#..(HT,LB,SED)..LHD197809-198008

DARK WINE,RED/MAROON,TRIM3#

sub55401-20390¥46,800

main55401-20370-05iRT13#,TT13#..LHD197809-198008

BEIGE,BEIGE,TRIM4#

sub55401-20390¥46,800

main55401-20380-01iTT13#..RHD;RT132,133..ARL198008-198301

BLACK,BLACK,TRIM2#

sub55401-20380¥44,800

main55401-20380-02iXT130..LNK198008-198301

DARK WINE,RED/MAROON,TRIM3#

sub55401-20380¥44,800

main55401-20380-06iTT13#..RHD;RT132,133..ARL198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55401-20380¥44,800

main55401-20390-01iRT130,132,TT13#..LHD198008-198205

BLACK,BLACK,TRIM2#

sub55401-20390¥46,800

main55401-20390-02iRT130,132,TT13#..LHD198008-198205

DARK WINE,RED/MAROON,TRIM3#

sub55401-20390¥46,800

main55401-20390-06iRT130,132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub55401-20390¥46,800

55431APANEL, INSTRUMENT PANEL FINISH

main55431-20060iXT130197809-198101

main55431-20070iRT13#,TT13#..LHD..(DLX,STD)197809-198008

main55431-20080iRT132..ARL197908-198008

sub55431-20060

main55431-20090iTT132..LHD..GL197809-198008

main55431-20100iTT132..RHD..DLX..EUR197809-197909

main55431-20110iTT132..RHD..GL197809-197909

sub55431-20100

main55431-20120iTT132..RHD..DLX..EUR197909-198008

main55431-20130iTT132..RHD..GL197909-198008

sub55431-20120

main55431-20140-01iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

BLACK,BLACK,TRIM2#

sub55431-20140¥3,130

main55431-20140-02iRT130,132,TT13#..(HT,LB,SED)..LHD..(DLX,STD)198008-198205

DARK WINE,RED/MAROON,TRIM3#

sub55431-20140¥3,130

main55431-20140-06iRT130,132,TT13#..LHD..(DLX,STD)198008-198205

DARK BROWN,BROWN,TRIM4#

sub55431-20140¥3,130

main55431-20150iTT132..GL198008-198112

sub55431-20140¥3,130

main55431-20160-01iTT13#..RHD;RT132,133..ARL198008-198301

BLACK,BLACK,TRIM2#

sub55431-20060

main55431-20160-02iXT130..LNK198008-198301

DARK WINE,RED/MAROON,TRIM3#

sub55431-20060

main55431-20160-06iXT130198008-198301

DARK BROWN,BROWN,TRIM4#

sub55431-20060

55441BOX, INSTRUMENT PANEL

main55441-20120iRT13#,TT13#,XT130¥880197809-198301

55464ACOVER, CHOKE KNOB HOLE

main55464-14010-01iRT132,TT13#..DLX,STD197809-198205

BLACK,BLACK,TRIM2#

sub55464-14010¥260

main55464-14010-02iRT132,TT13#..(HT,LB,SED)..(DLX,STD)197809-198205

DARK WINE,RED/MAROON,TRIM3#

sub55464-14010¥260

main55464-14010-06iRT132,TT13#..DLX,STD197809-198008

LIGHT BROWN,BROWN,TRIM4#

sub55464-14010¥260

main55464-14010-16iRT132,TT13#..DLX,STD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub55464-14010¥260

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-20080-01iRT133;RT130,132,TT13#,XT130..RHD197809-198301

BLACK,BLACK,TRIM2#

sub55432-20080¥2,230

main55432-20080-02iRT133;RT130,132,TT13#,XT130..(HT,LB,SED)..RHD197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub55432-20080¥2,230

main55432-20080-05iRT13#,TT13#,XT130..RHD197809-198101

BEIGE,BEIGE,TRIM4#

sub55432-20080¥2,230

main55432-20080-06iTT13#..RHD;RT132,133,XT130..ARL198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55432-20080¥2,230

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-20030iRT133;RT130,132,TT13#,XT130..RHD¥2,840197809-198301

main55581-20040iRT130,132,TT13#..LHD197809-198205

55506BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55560-12020iRT130,132,TT13#..STD¥2,530197809-198205

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-20030iRT13#,TT13#,XT130¥990197809-198301

main55556-20040iTT132..LHD..EUR197809-198008

WEST GERMANY SPEC

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20040-01iRT13#,TT13#,XT130197809-198301

BLACK,BLACK,TRIM2#

sub55550-20040¥3,810

main55550-20040-02iRT13#,TT13#,XT130..HT,LB,SED197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub55550-20040¥3,810

main55550-20040-05iRT13#,TT13#,XT130197809-198101

BEIGE,BEIGE,TRIM4#

sub55550-20040¥3,810

main55550-20040-06iRT13#,TT13#,XT130198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55550-20040¥3,810

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iRT13#,TT13#,XT130¥110197809-198301

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iRT13#,TT13#,XT130¥230197809-198301

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-12010iRT13#,TT13#,XT130¥320197809-198301

55545COVER, FUSE BOX OPENING

main55540-20010-01iRT133,XT130..STD197809-198301

BLACK,BLACK,TRIM2#

sub55540-20010¥2,650

main55540-20010-02iRT133,XT130..STD..LNK197809-198301

DARK WINE,RED/MAROON,TRIM3#

sub55540-20010¥2,650

main55540-20010-05iRT133,XT130..STD197809-198301

BEIGE,BEIGE,TRIM4#

sub55540-20010¥2,650

main55540-20020-01iRT13#,TT132..LHD197809-197904

BLACK,BLACK,TRIM2#

sub55540-20020¥2,650

main55540-20020-02iRT13#,TT132..(HT,LB,SED)..LHD197809-197904

DARK WINE,RED/MAROON,TRIM3#

sub55540-20020¥2,650

main55540-20020-05iRT13#,TT132..LHD197809-197904

BEIGE,BEIGE,TRIM4#

sub55540-20020¥2,650

main55540-20021-01iRT13#,TT13#..LHD197904-198008

BLACK,BLACK,TRIM2#

sub55540-20021¥2,650

main55540-20021-02iRT13#,TT13#..(HT,LB,SED)..LHD197904-198008

DARK WINE,RED/MAROON,TRIM3#

sub55540-20021¥2,650

main55540-20021-05iRT13#,TT13#..LHD197904-198008

BEIGE,BEIGE,TRIM4#

sub55540-20021¥2,650

main55540-20040-01iRT132,133,TT13#..RHD198008-198301

BLACK,BLACK,TRIM2#

sub55540-20040¥2,890

main55540-20040-02iRT132,133,TT13#..(HT,LB,SED)..RHD198008-198301

DARK WINE,RED/MAROON,TRIM3#

sub55540-20040¥2,890

main55540-20040-06iRT132,133,TT13#..RHD198008-198301

LIGHT BROWN,BROWN,TRIM4#

sub55540-20040¥2,890

main55540-20050-01iRT130,132,TT13#..LHD198008-198205

BLACK,BLACK,TRIM2#

sub55540-20050¥2,890

main55540-20050-02iRT130,132,TT13#..(HT,LB,SED)..LHD198008-198205

DARK WINE,RED/MAROON,TRIM3#

sub55540-20050¥2,890

main55540-20050-06iRT130,132,TT13#..LHD198008-198205

LIGHT BROWN,BROWN,TRIM4#

sub55540-20050¥2,890

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-20010iRT13#,TT13#..(DLX,STD)..(EUR,GEN)197809-198008

W/HEATER & *BV

main55650-20010iXT130198008-198101

main55650-20020iRT132,TT132..GL197809-198008

sub55650-20010

main55650-20040iRT130¥4,670197809-197903

sub55650-20041

main55650-20041iRT130,TT133197903-198008

sub55650-20010

main55650-20050-01iRT130,TT133198008-198112

BLACK,BLACK,TRIM2#

sub55650-20010

main55650-20050-02iRT130,TT133..SED198008-198112

DARK WINE,RED/MAROON,TRIM3#

sub55650-20010

main55650-20050-06iRT130,TT133198008-198112

DARK BROWN,BROWN,TRIM4#

sub55650-20010

main55650-20060-01iXT130198101-198301

BLACK,BLACK,TRIM2#

sub55650-20010

main55650-20060-01iRT132,133,TT13#198008-198301

W/HEATER & *BV,BLACK,BLACK,TRIM2#

sub55650-20010

main55650-20060-02iRT132,133,TT13#..HT,LB,SED198008-198301

W/HEATER & *BV,DARK WINE,RED/MAROON,TRIM3#

sub55650-20010

main55650-20060-02iXT130..LNK198101-198301

DARK WINE,RED/MAROON,TRIM3#

sub55650-20010

main55650-20060-06iXT130198101-198301

DARK BROWN,BROWN,TRIM4#

sub55650-20010

main55650-20060-06iRT132,133,TT13#198008-198301

W/HEATER & *BV,DARK BROWN,BROWN,TRIM4#

sub55650-20010

9010506013

main90105-06013¥190

9015950068

main90159-50068¥70

9016750001

main90167-50001¥110

9016750003

main90167-50003¥130

9017906070

main90179-06070¥180

9018305009

main90183-05009¥90

9018305013

main90183-05013¥140

9018305094

main90183-05094¥90

9046807002

main90468-07002¥140

9165640616

main91656-40616¥100

9165640818

main91656-40818¥140

9322954010

main93229-54010¥110

9354055016

main93540-55016¥70

9356655514

main93566-55514¥130

36 parts on this diagram · 6 diagrams in section
