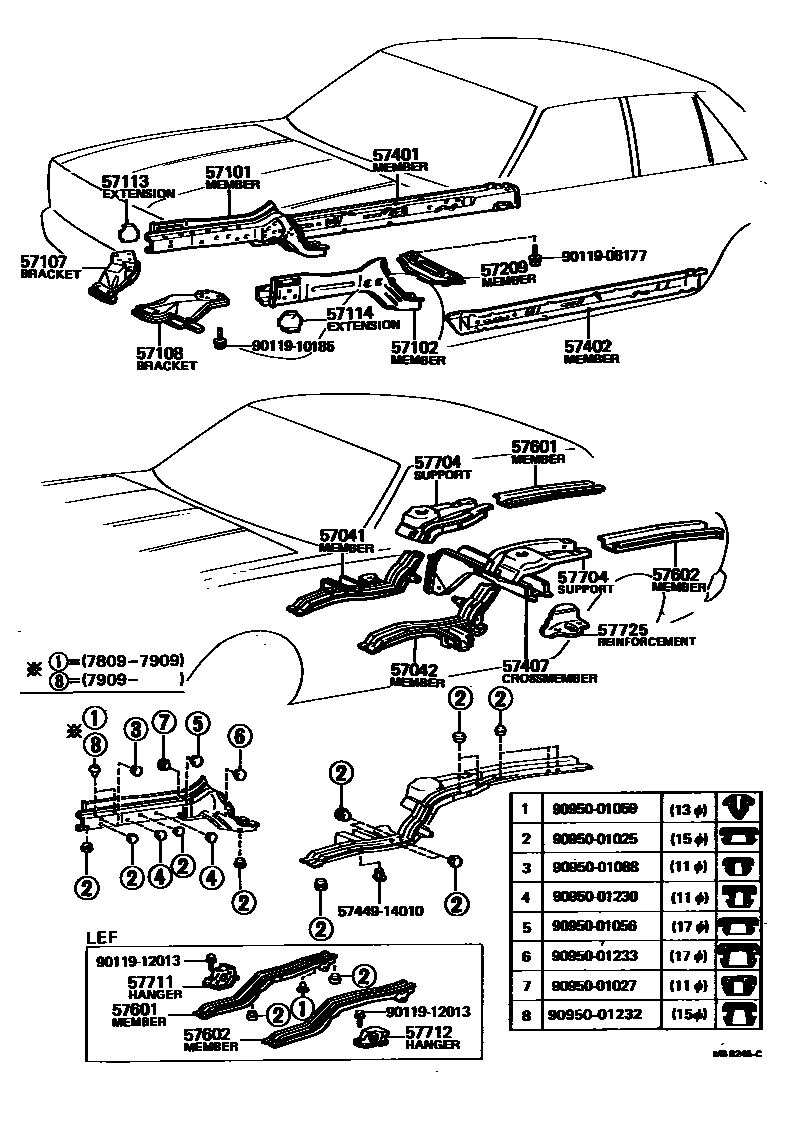

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-14070iRT132,133..ARL¥8,300198011-198301

sub57041-14060

main57041-20011iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

main57041-20020iRT13#,TT13#,XT130..LNK197809-198301

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-14060iRT132,133..ARL¥8,300198011-198301

sub57042-14050

main57042-20011iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

main57042-20020iRT132..GEN197809-198301

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20220iXT130197809-198111

main57101-20240iRT132..HT;RT130..LNK;RT132,TT132..SED..RHD..DLX¥28,900197906-198008

W/URETHANE BUMPER

main57101-20240iRT13#,TT13#¥28,900198008-198301

main57101-20260iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN¥30,000198012-198112

SAUDI ARABIA SPEC

sub57101-20240¥28,900

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20200iRT13#,TT13#,XT130197809-198111

main57102-20230iRT13#,TT13#198008-198301

main57102-20230iTT132..(HT,LB)..5F..GEN197906-198008

W/URETHANE BUMPER

main57102-20260iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14012iRT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN¥4,460197809-198301

sub57107-14040¥4,050

main57107-14040iTT132..EUR¥4,050198008-198301

main57107-14040iTT133..SED..LEF¥4,050197809-198112

TAXI SPEC

main57107-14040iRT133¥4,050198108-198301

W/POWER STEERING

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14012iRT13#,TT13#..ARL,GEN,PHL¥4,460197809-198301

sub57108-14040¥4,050

main57108-14040iTT132..EUR¥4,050197809-198108

TAXI SPEC

main57108-14040iRT133¥4,050198108-198301

W/POWER STEERING

main57108-14040iXT130..LNK¥4,050198008-198301

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14050iRT13#,TT132,XT130¥260197809-198301

57114EXTENSION, FRONT SIDE MEMBER, LH

main57113-14050iRT13#,TT132,XT130¥260197809-198301

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14061iTT132..3FC..EUR¥2,750197809-198301

sub57209-20100

main57209-14150iTT132..MTM..EUR¥4,270198008-198301

sub57209-14160

main57209-15010iTT133¥3,290197908-197911

sub57209-15011¥3,440

main57209-15011iTT132..MTM¥3,440197911-198112

sub57209-20091

main57209-20080iRT133..4FC198108-198301

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20150iRT13#,TT13#,XT130..SED..LNK¥10,500197809-198301

sub57401-20160

main57401-20160iRT130,132,TT133..SED..LEF197809-198205

main57401-95502iRT132,TT132..HT197809-198112

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20150iRT13#,TT13#,XT130..LB,WG¥10,500197809-198301

sub57402-20160

main57402-20160iRT130,132,TT133..SED..LEF197809-198205

main57402-95502iRT132,TT132..HT197809-198112

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57405-14021iRT13#,TT132..LNK197809-197901

sub57405-14040

main57405-14040iRT13#,TT13#,XT130..LNK197901-198301

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20080iXT130..LNK197809-198301

main57601-20090iTT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK198012-198112

SAUDI ARABIA SPEC

main57601-20100iTT132..LB..5F..GEN197906-198008

W/URETHANE BUMPER

main57601-20100iRT13#,TT13#..LNK198008-198301

main57601-20110iRT130,132,TT133..SED..LEF197809-198205

main57601-91255iRT13#,TT13#..WG¥47,100197809-198003

sub57601-91260

main57601-91259iXT130..LEF¥47,700197908-198003

sub57601-91262

main57601-91261iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

main57601-91262iXT130..LEF198003-198301

main57601-91263iRT130,132,TT13#..WG198003-198205

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20080iXT130..LNK197809-198301

main57602-20090iTT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK198012-198112

SAUDI ARABIA SPEC

main57602-20100iTT132..LB..5F..GEN197906-198008

W/URETHANE BUMPER

main57602-20100iRT13#,TT13#..LNK198008-198301

main57602-20110iRT130,132,TT133..SED..LEF197809-198205

main57602-91255iRT13#,TT13#..WG¥45,100197809-198003

sub57602-91260

main57602-91259iXT130..LEF¥47,700197908-198003

sub57602-91262

main57602-91260iRT130,132,TT13#..WG198003-198205

main57602-91262iXT130..LEF198003-198301

main57602-91263iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iRT13#,TT13#,XT130..LNK¥16,300197809-198301

RH

main57704-14010iRT13#,TT13#,XT130..LNK¥16,300197809-198301

LH

57711HANGER, REAR SPRING, FRONT RH

main57711-20050iRT130,132,TT133..SED..LEF¥4,160197809-198205

57712HANGER, REAR SPRING, FRONT LH

main57712-20040iRT130,132,TT133..SED..LEF¥4,160197809-198205

57725REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main57725-14010iRT13#,TT13#,XT130..LNK197809-198301

RH

main57726-14010iRT13#,TT13#,XT130..LNK197809-198301

LH

5744914010GROMMET, CENTER FLOOR SIDE MEMBER

main57449-14010

9005001025

main90050-01025

9011908177

main90119-08177¥140

9011910185

main90119-10185¥240

9011912013

main90119-12013¥250

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001059

main90950-01059¥230

9095001088

main90950-01088¥110

9095001230

main90950-01230¥190

9095001232

main90950-01232¥220

9095001233

main90950-01233¥180

30 parts on this diagram · 4 diagrams in section
