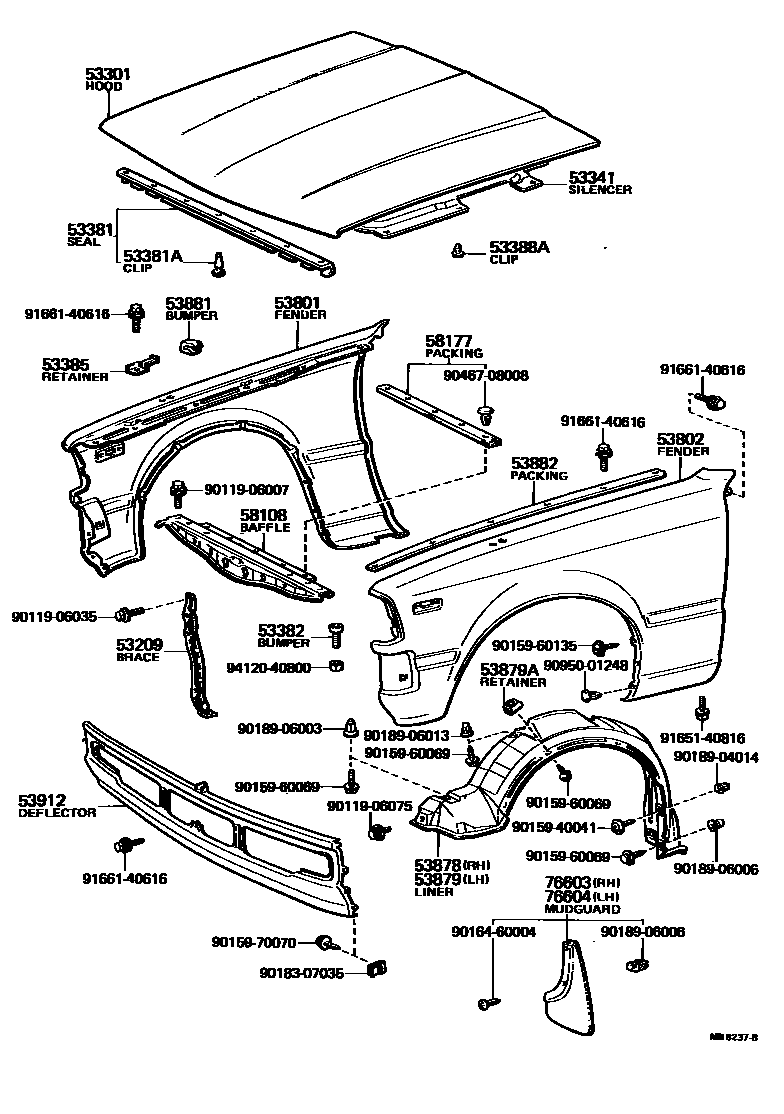

HOOD & FRONT FENDER

0001 1 0003 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-20020iRT13#,TT13#198008-198301

sub53208-20030

main53215-20030iRT13#,TT13#,XT130197809-198111

main53216-20030iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

53301HOOD SUB-ASSY

main53301-20100iRT13#,TT13#,XT130197809-198111

sub53301-20110

main53301-20130iRT13#,TT13#198008-198301

53341SILENCER, HOOD, NO.1

main53341-20030iTT132..EUR197809-198008

main53341-20031iTT132..EUR198008-198108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14050iXT130197809-198111

main53381-20060iRT13#,TT13#198008-198301

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008iRT13#,TT132197809-197908

main90467-08011iRT13#,TT13#,XT130197908-198301

53382BUMPER, HOOD, FRONT

main53382-20011iRT13#,TT13#,XT130197809-198301

sub53382-90A00

53385RETAINER, HOOD, BUMPER

main53385-14010iRT13#,TT13#,XT130197809-198301

RH

main53386-14010iRT13#,TT13#,XT130197809-198301

LH

53388ACLIP(FOR HOOD REAR)

main90467-09008iTT132..EUR197809-198108

53801FENDER SUB-ASSY, FRONT RH

main53801-20340iRT13#,TT13#..GEN197809-198008

W/MIRROR HOLE

main53801-20341iRT130,132,TT13#..GEN,PHL198008-198205

W/MIRROR HOLE

main53801-20370iRT13#,TT13#,XT130197809-198111

W/O MIRROR HOLE

main53801-20390iRT132,TT132..ARL,EUR197809-197912

sub53801-20370

main53801-20391iRT132,133,TT132..LB..(ARL,EUR)198008-198301

main53801-20391iTT132..RHD..DLX;RT130,TT133..DLX;TT132..LHD..(3FC,4F)..DLX;TT132..(HT,LB)..LHD..5F..GEN198106-198112

*GIS,W/O MIRROR HOLE

main53801-20410iRT133,XT130..STD198111-198301

main53801-20410iRT130,132,TT13#..GEN,PHL198008-198205

W/O MIRROR HOLE

53802FENDER SUB-ASSY, FRONT LH

main53802-20360iRT13#,TT13#..GEN197809-198008

W/MIRROR HOLE

main53802-20361iRT130,132,TT13#..GEN,PHL198008-198205

W/MIRROR HOLE

main53802-20390iRT13#,TT13#,XT130..ARL,GEN197809-198111

W/O MIRROR HOLE

main53802-20410iTT132..DLX..LEF197809-198008

sub53802-20390

main53802-20411iTT132..RHD..DLX;RT130,TT133..DLX;TT132..LHD..(3FC,4F)..DLX;TT132..(HT,LB)..LHD..5F..GEN198106-198112

*GIS,W/O MIRROR HOLE

main53802-20411iRT132,133,TT132..LB..(ARL,EUR)198008-198301

main53802-20430iRT130,132,TT13#..GEN,PHL198008-198205

W/O MIRROR HOLE

main53802-20430iRT133,XT130..STD198111-198301

53878LINER, FRONT FENDER, RH

main53875-20020iRT13#,TT13#,XT130197809-198301

53879LINER, FRONT FENDER, LH

main53876-20030iRT13#,TT13#,XT130197809-198301

53879ARETAINER, FRONT FENDER LINER

main53879-22010iRT13#,TT13#,XT130197809-198301

53881BUMPER, FENDER TO HOOD

main53384-14030iRT13#,TT13#,XT130197809-198301

53882PACKING, FRONT FENDER MAIN

main53882-14050iRT13#,TT13#,XT130197809-198301

53912DEFLECTOR, FRONT BUMPER STONE

main53901-20030iXT130197809-198111

main53911-20070iRT13#,TT13#198008-198301

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53216-20010iXT130197809-198111

main53216-20020iTT132..LHD..4F..DLX..LEF198012-198112

SAUDI ARABIA SPEC

sub53216-20030

main53216-20020iRT13#,TT13#198008-198301

sub53216-20030

main53216-20030iTT132..LB..LHD..4F..GEN;TT13#..SED..LHD..(3FC,4F)..LNK198012-198112

SAUDI ARABIA SPEC

58177PACKING, RADIATOR BAFFLE

main53293-14020iRT13#,TT13#,XT130197809-198301

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29015iRT132,133..ARL197908-198301

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29015iRT132,133..ARL197908-198301

9011906007

main90119-06007

9011906035

main90119-06035

9011906075

main90119-06075

9015940041

main90159-40041

9015960069

main90159-60069

9015960135

main90159-60135

9015970070

main90159-70070

9016460004

main90164-60004

9018307035

main90183-07035

9018904014

main90189-04014

9018906003

main90189-06003

9018906006

main90189-06006

9018906013

main90189-06013

9046708008

main90467-08008

9095001248

main90950-01248

9165140816

main91651-40816

9166140616

main91661-40616

9412040800

main94120-40800

38 parts on this diagram · 2 diagrams in section
