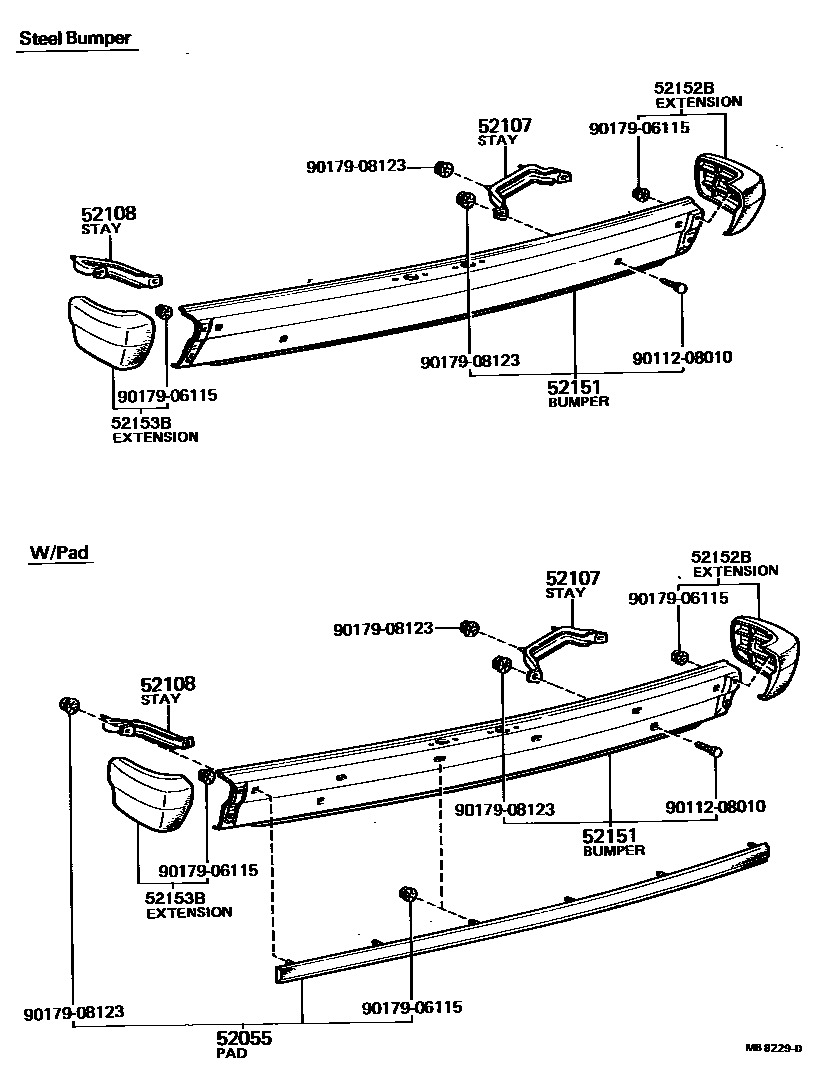

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29045iRT13#,TT13#,XT130..ARL,EUR,GEN¥11,600197809-198205

main52055-29085iRT13#,TT13#..LB,SED¥27,600198008-198301

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-20030iRT13#,TT13#..(LB,SED)..LNK¥4,040198008-198301

main52015-91255iRT130,132,TT13#,XT130..WG¥5,200197809-198205

main52181-20070iRT13#,TT13#,XT130..LNK¥2,800197809-198301

main52181-20080iRT13#,TT133..SED..LEF197809-198008

main52181-20081iRT132,TT133..SED..LEF198008-198205

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-20030iRT13#,TT13#..(LB,SED)..LNK¥4,040198008-198301

main52016-91255iRT130,132,TT13#..WG¥5,200197809-198205

main52182-20070iXT130..LNK¥2,800197809-198111

main52182-20080iRT13#,TT133..SED..LEF197809-198008

main52182-20081iRT132,TT133..SED..LEF198008-198205

52151BUMPER ASSY, REAR

main52151-29315iXT130..LNK¥29,300197809-198111

sub52151-29475¥29,200

main52151-29325iXT130..LNK¥32,800197809-198111

W/PAD

sub52151-29485¥33,000

main52151-29335iRT13#,TT13#,XT130..HT,WG¥29,100197809-198205

sub52151-91258

main52151-29345iRT13#,TT13#..(HT,WG)..GEN¥29,100197809-198205

W/PAD

sub52151-91259¥28,300

main52151-29405iRT132,TT13#..SED..STD¥29,100198008-198205

sub52151-20190

main52151-29425iRT13#,TT13#..LB,SED¥27,400198008-198301

W/PAD

sub52151-20210¥29,700

52152BEXTENSION, REAR BUMPER, RH

52153BEXTENSION, REAR BUMPER, LH

9011208010

main90112-08010¥220

9017906115

main90179-06115¥120

9017908123

main90179-08123¥160

9 parts on this diagram · 6 diagrams in section
