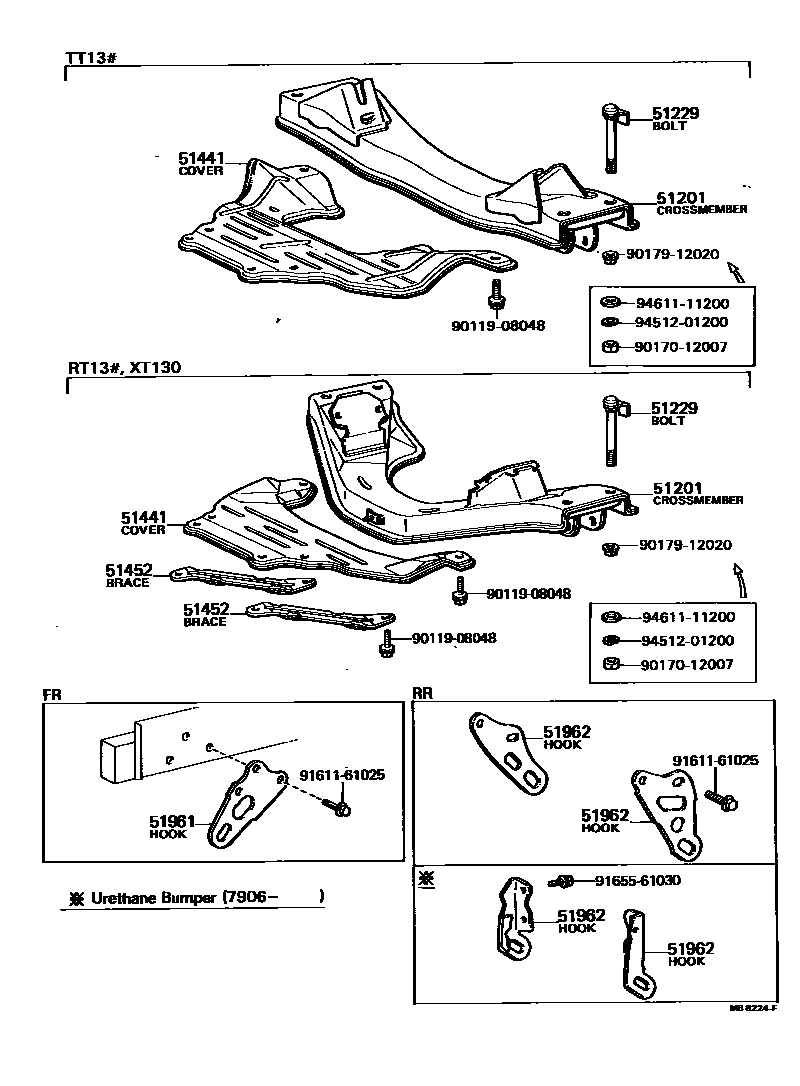

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20120iRT130197809-198112

main51201-20130iRT132,133,XT130197809-198301

main51201-20140iTT13#197809-198112

sub51201-20141

51229BOLT, SUSPENSION MEMBER SET

main51296-14010iRT13#,TT132197809-197905

main51296-14011iRT13#,TT13#,XT130197905-198301

51441COVER, ENGINE UNDER, NO.1

main51441-14021iRT13#,XT130197809-198301

main51441-20060iTT13#197809-198112

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-14011iRT13#,XT130197809-198301

51961HOOK, NO.1

main51963-14030iRT13#,TT13#198008-198301

main51963-20050iRT13#,TT13#,XT130197809-198111

51962HOOK, NO.2

main51095-20020iRT132..HT;RT130..LNK;RT132,TT132..SED..RHD..DLX197906-198008

W/URETHANE BUMPER,RH

sub51095-20021

main51095-20021iTT132..4F..STD..LNK198012-198108

W/URETHANE BUMPER,RH,*SAA

main51095-20021iRT130,TT13#..DLX..LNK..(GEN,PHL)198008-198112

W/URETHANE BUMPER,RH

main51967-20010iXT130..LNK197809-198301

RH

sub51967-20040

main51967-20040iTT132..RHD..EUR197809-198008

RH

main51968-20010iRT13#,TT13#,XT130..LNK197809-198301

LH

main51968-20020iRT132..HT;RT130..LNK;RT132,TT132..SED..RHD..DLX197906-198301

W/URETHANE BUMPER,LH

main51968-20020iTT132..4F..STD..LNK198012-198108

W/URETHANE BUMPER,LH,*SAA

9011908048

main90119-08048

9017012007

main90170-12007

9017912020

main90179-12020

9161161025

main91611-61025

9165561030

main91655-61030

9451201200

main94512-01200

9461111200

main94611-11200

13 parts on this diagram · 1 diagram in section
