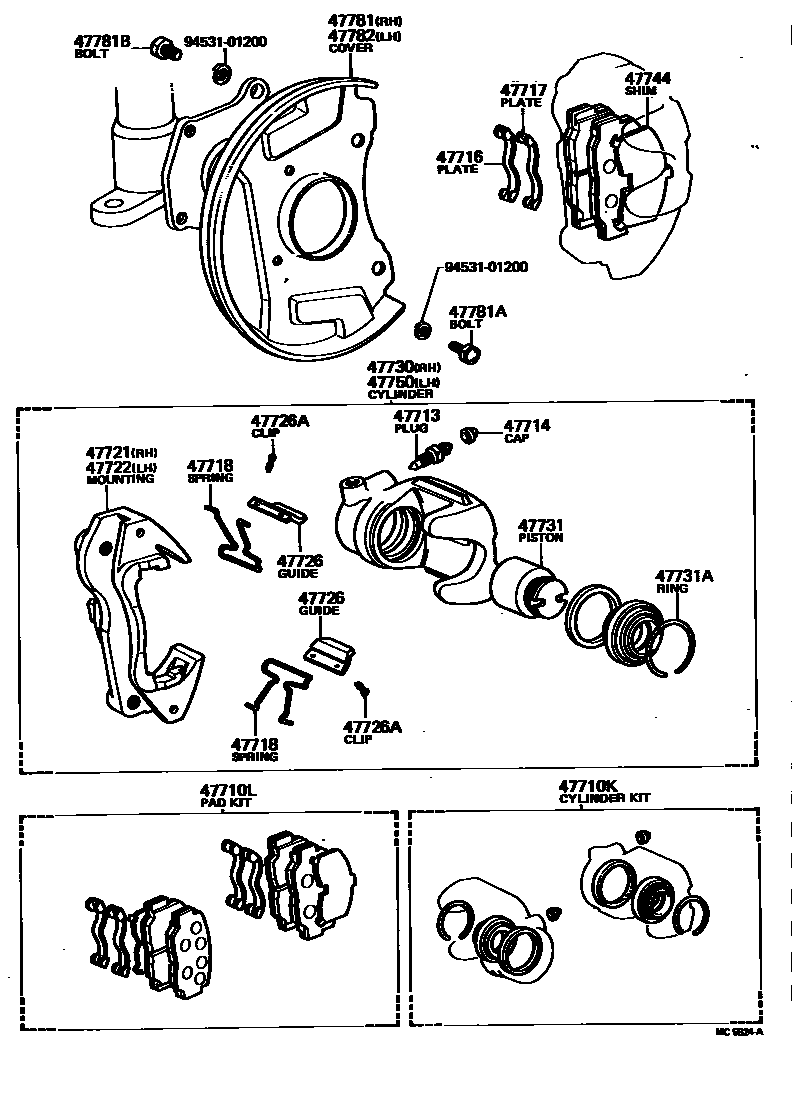

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0006 1 0007 1

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥1,310197809-198112

main04479-20050iRT132..LEF¥2,680197909-198205

sub04479-20051

main04479-30021iXT130¥2,680197809-198301

sub04479-30022

47710LPAD KIT, DISC BRAKE, FRONT

main04491-20051iRT130¥5,300197809-198112

sub04465-28250¥8,100

main04491-20140iRT132..LEF¥5,900197909-198205

sub04465-20330¥7,900

main04491-22070iRT132,TT132..ARL,EUR¥6,800197809-197910

sub04491-22071¥6,900

main04491-22071iRT133..GL¥6,900197910-198301

sub04465-22170¥9,100

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRT130¥410197809-198112

main47547-12030iRT132..LEF¥400197909-198205

main47547-20030iXT130¥230197809-198301

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRT13#,TT13#¥160197809-198301

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥400197809-198112

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥400197809-198112

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥330197809-198112

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20050iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-198112

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20050iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-198112

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14010iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥770197809-198112

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥170197809-198112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20060iRT132,TT132..ARL,EUR¥37,700197809-198011

sub47730-20130¥34,400

main47730-20100iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥36,300197809-198112

main47730-20120iRT132..LEF197909-198205

main47730-20130iRT132,TT132..ARL,EUR¥34,400198011-198301

47731PISTON, FRONT DISC BRAKE

main47731-20030iRT130..WG;RT13#..(3FC,4F)..LNK¥1,550197809-198112

main47731-20040iXT130¥2,220197809-198301

main47731-20050iRT132..LEF197909-198205

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53018iRT132..LEF197909-198205

main90522-54038iRT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL¥320197809-198112

sub90522-58001¥330

main90522-58026iRT133..GL¥250197809-198301

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14011iTT13#..GEN¥250197809-198112

main47744-22030iRT132..LEF197909-198205

main47744-30012iRT132,TT132..ARL,EUR¥250197809-198301

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20050iRT132,TT132..ARL,EUR¥37,700197809-198011

sub47750-20120¥34,400

main47750-20090iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥36,300197809-198112

main47750-20110iRT132..LEF197909-198205

main47750-20120iXT130¥34,400198011-198301

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20070iRT130197809-198112

main47781-20080iRT132,TT132..ARL,EUR¥1,970197809-198301

main47781-20120iRT132..LEF197909-198205

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iRT133,XT130¥180197809-198301

47781BBOLT(FOR DUST COVER SETTING)

main90101-12018iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL¥250197809-198105

sub90119-12068¥240

main90101-12047iRT132,XT130..STD197908-198205

main90101-12067iTT133;TT132..RHD;TT132..LHD..(3FC,4F)..GEN;TT132..(HT,LB)..LHD..5F..GEN¥240198105-198112

main90101-12379iXT130¥540197809-198301

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20070iRT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL197809-198112

main47782-20080iXT130¥1,970197809-198301

main47782-20120iRT132..LEF197909-198205

9453101200

main94531-01200¥80

21 parts on this diagram · 4 diagrams in section
