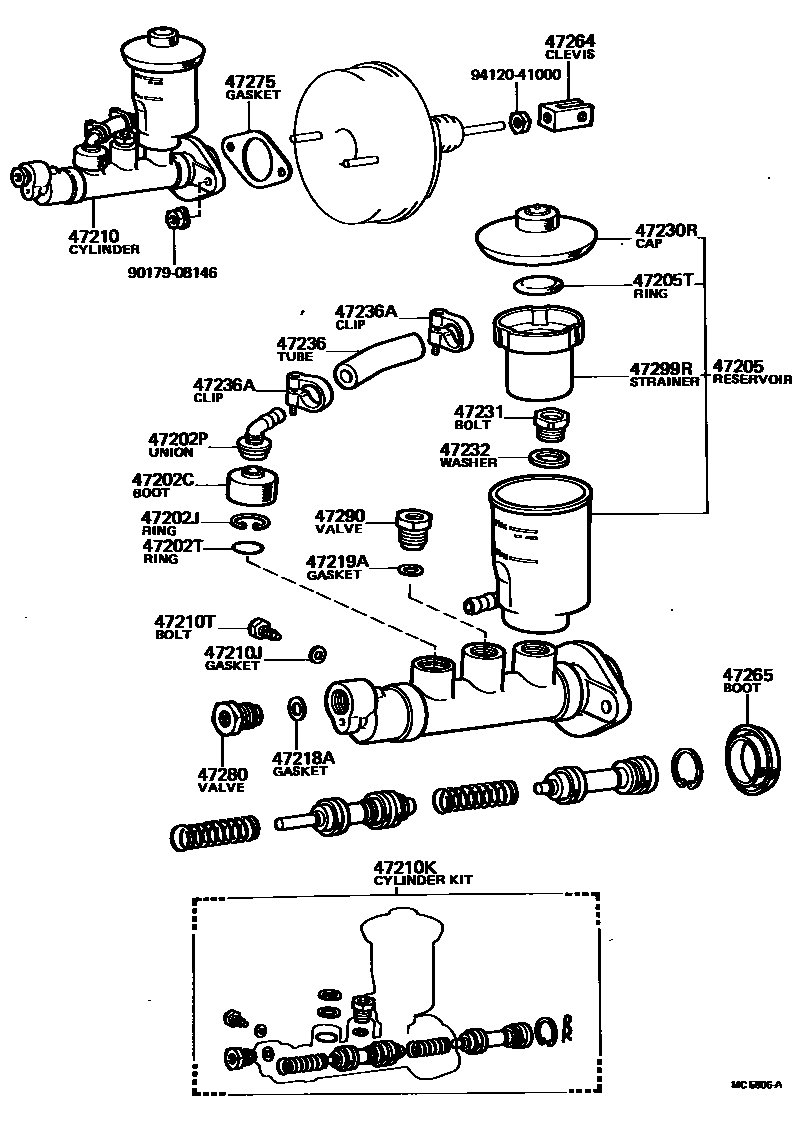

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iRT133;RT130,132,TT13#..RHD197809-198301

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iRT133;RT130,132,TT13#..RHD197809-198301

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iRT130,132,TT13#..LHD197809-198205

main90407-10003iRT133;RT130,132,TT13#..RHD197809-198301

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iRT133;RT130,132,TT13#..RHD197809-198301

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-20240iRT133197809-198301

sub47202-14270

main47202-20240iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

sub47202-14270

main47202-35050iRT130,132,TT13#..GEN,PHL197809-198205

47205TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)

main31426-20010iRT130,132,TT13#..GEN,PHL197809-198205

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-20250iRT130,132,TT13#..RHD..GEN197809-198112

sub47207-20080

sub31426-20010

sub47230-20030

main47201-20290iTT132..RHD..EUR197809-198301

main47201-20300iRT130,132,TT13#..LHD..(GEN,PHL)197809-198205

sub47207-20070

sub31426-20010

sub47230-20030

main47201-20310iTT132..LHD..EUR197809-198108

main47201-20330iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

sub47207-20070

sub84460-20051

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iRT13#,TT13#197809-198301

47210KCYLINDER KIT, BRAKE MASTER

main04493-20100iRT130,132,TT13#..GEN,PHL197809-198205

main04493-20110iRT132,133,TT132..ARL,EUR197809-198301

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iRT13#,TT13#197809-198301

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iRT13#,TT13#197809-198301

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iRT13#,TT13#197809-198301

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iRT130,132,TT13#..GEN,PHL197809-198205

main84460-20051iTT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN198012-198112

SAUDI ARABIA SPEC

sub84460-12011

main84460-20051iRT132,TT132..ARL,EUR197809-198301

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iRT13#,TT13#197809-198301

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iRT13#,TT13#197809-198301

47236TUBE, RESERVOIR BRAKE

main47234-14010iRT13#,TT13#197809-198301

47236ACLIP(FOR RESERVOIR TUBE)

main90460-16069iRT13#,TT13#197809-198301

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20020iRT13#,TT13#197809-198301

47265BOOT, MASTER CYLINDER

main47265-20050iRT13#,TT13#197809-198301

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iRT130,132,TT13#..GEN,PHL197809-198205

sub47275-26010

main47275-22010iRT133197809-198301

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iRT13#,TT13#197809-198301

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iRT13#,TT13#197809-198301

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iTT132..RHD;RT13#,TT133;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198108-198301

main47299-20010iRT13#,TT13#197809-198108

9017908146

main90179-08146

9412041000

main94120-41000

25 parts on this diagram · 4 diagrams in section
