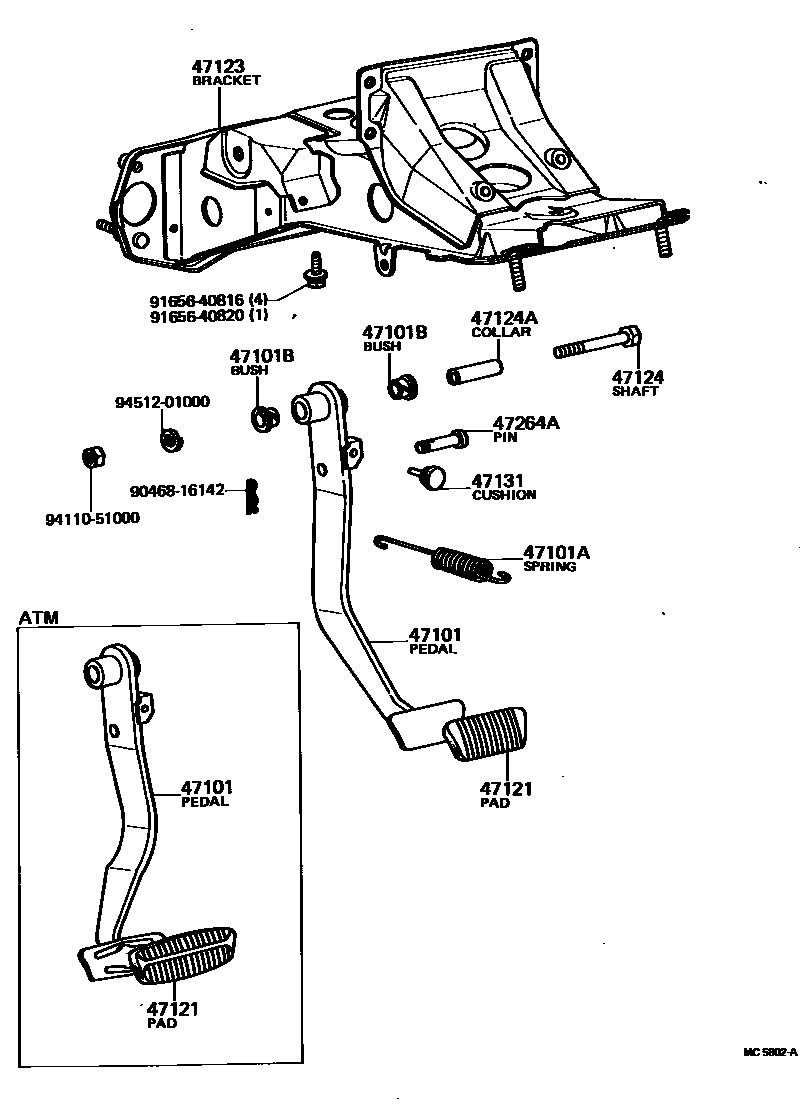

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-20210iRT133..5F;RT130,132,TT13#,XT130..RHD..MTM197809-198301

main47101-20220iRT13#,TT132..LHD..MTM197809-197905

sub47101-20221

main47101-20221iRT13#,TT132..LHD..MTM197905-197908

main47101-20222iRT130,132,TT13#..LHD..MTM197908-198205

main47101-20230iRT132,133,TT132,XT130..RHD..ATM197809-198301

main47101-20240iTT132..LHD..3FC197809-198112

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14004iRT13#,TT132197809-197810

sub90507-14002

main90507-14002iRT13#,TT13#,XT130197810-198301

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iRT13#,TT13#,XT130197809-198301

47121PAD, BRAKE PEDAL

main31321-14010iRT130,132,TT13#..LHD..MTM197809-198205

main31321-20020iRT133..5F;RT130,132,TT13#,XT130..RHD..MTM197809-198301

main47121-30010iRT132,133,TT132,XT130..RHD..ATM198008-198301

main47121-30050iRT132,TT132,XT130..3FC197809-198112

47123BRACKET, BRAKE PEDAL

main55106-20140iRT133;RT130,132,TT13#,XT130..RHD197809-198301

main55106-20160iRT13#,TT132..LHD197809-198112

main55106-20170iRT130,132,TT13#..LHD..MTM197908-198205

47124SHAFT, BRAKE PEDAL

main90101-10039iRT13#,TT132197809-198301

main90101-10043iRT130,132,TT13#..LHD..MTM197908-198205

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iRT130,132,TT13#..LHD..MTM197908-198205

main90387-10003iRT13#,TT132197809-198301

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRT13#,TT13#,XT130197809-198301

47264APIN(FOR PUSH ROD)

main90249-10064iRT13#,TT13#,XT130197809-198301

9046816142

main90468-16142

9165640816

main91656-40816

9165640820

main91656-40820

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
