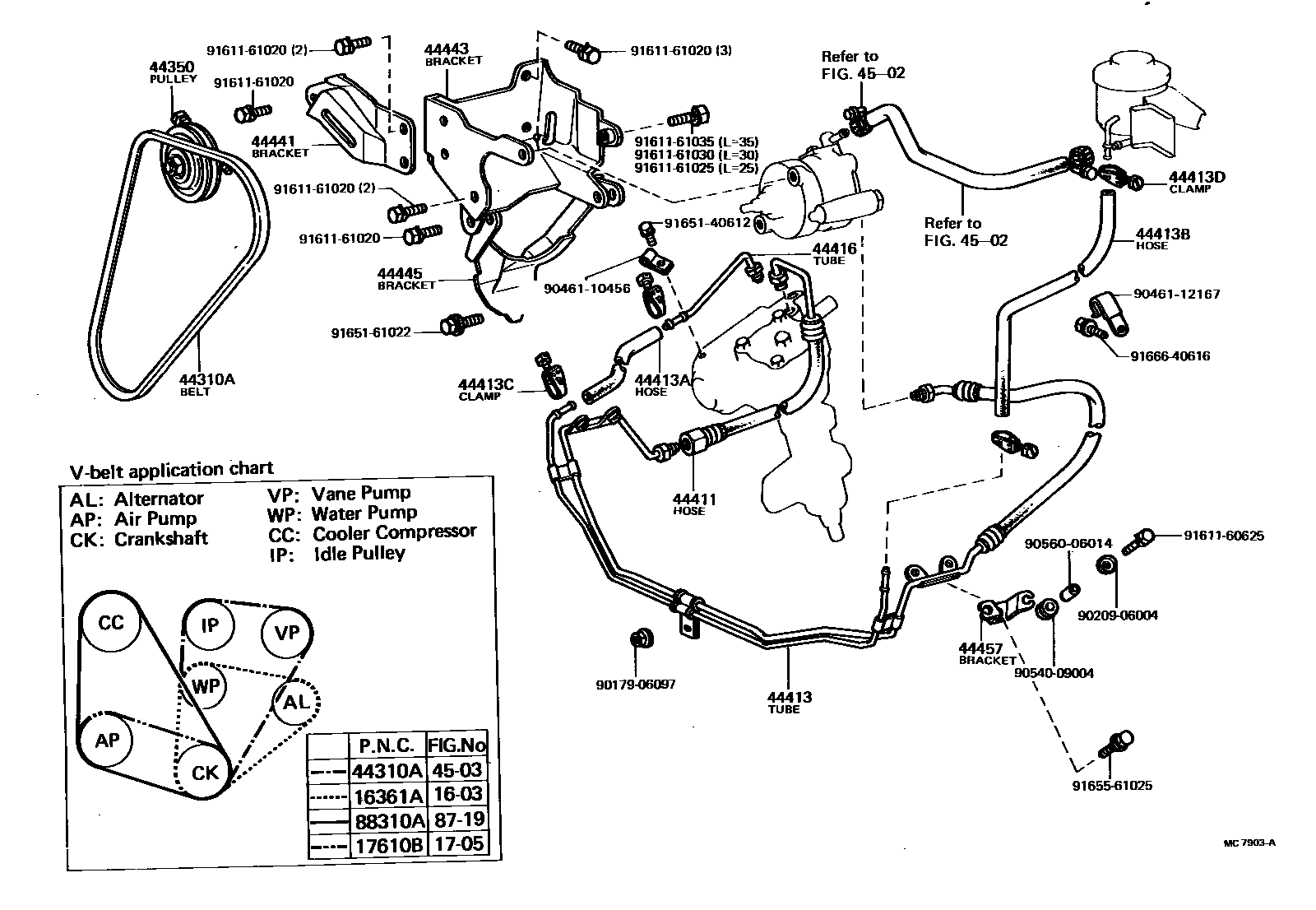

POWER STEERING TUBE
1603
16361ABELT, V(FOR FAN & ALTERNATOR)
L=840
L=885
L=880
L=900
L=840
1705
17610BBELT, V(FOR AIR PUMP)
L=855
L=780
L=820
44310ABELT, V(FOR VANE PUMP)
44350PULLEY ASSY, POWER STEERING IDLE
sub44350-60020
44411HOSE, PRESSURE FEED
44413TUBE, PRESSURE FEED, NO.1
44413AHOSE(FOR RETURN TUBE OUTLET)
44413BHOSE(FOR RESERVOIR TANK INLET)
44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)
44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44441BRACKET, PUMP, FRONT
44443BRACKET, PUMP
44445BRACKET, PUMP, LOWER
44457BRACKET, TUBE SUPPORT, NO.1
4502
4503
8719
9017906097
main90179-06097
9020906004
main90209-06004
9046110456
main90461-10456
9046112167
main90461-12167
9054009004
main90540-09004
9056006014
main90560-06014
9161160625
main91611-60625
9161161020
main91611-61020
9161161025
main91611-61025
9161161030
main91611-61030
9161161035
main91611-61035
9165140612
main91651-40612
9165161022
main91651-61022
9165561025
main91655-61025
9166640616
main91666-40616
36 parts on this diagram · 1 diagram in section
