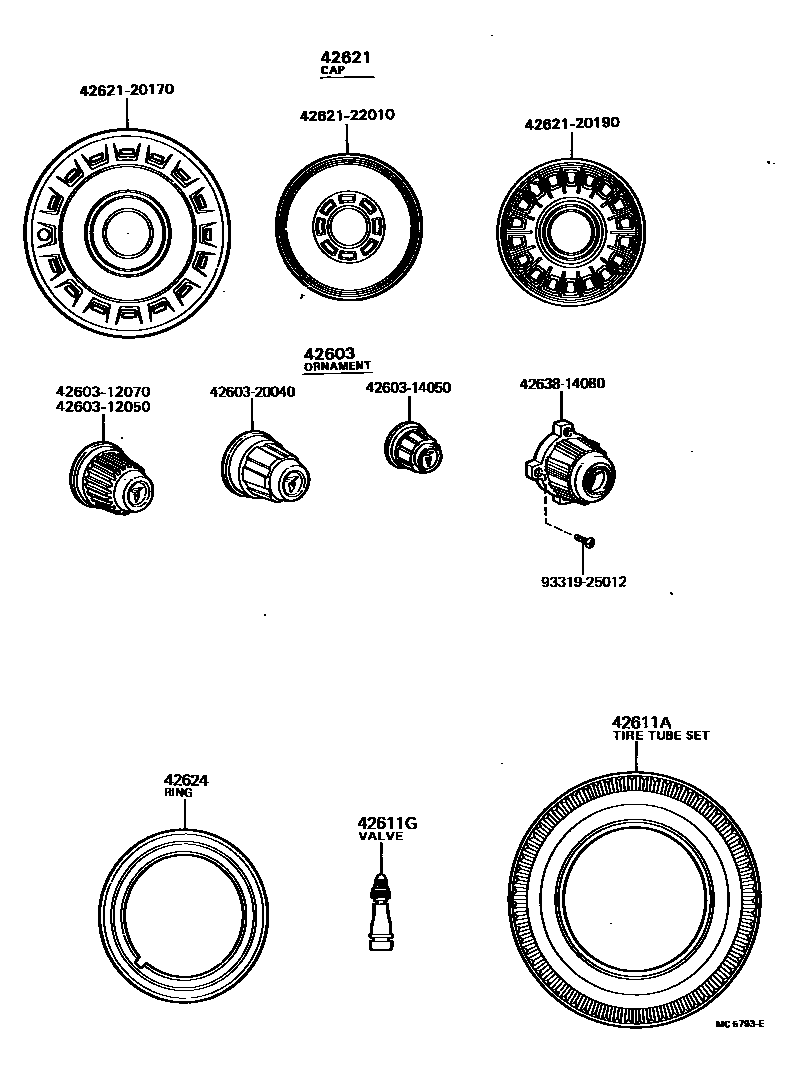

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050iTT132..LEF¥2,360198008-198112

sub42603-12070¥2,530

main42603-12070iRT132,TT13#..(HT,LB,SED)..GEN¥2,530197809-198205

main42603-14050iRT133,XT130¥2,650198202-198301

sub42603-22100¥3,640

main42603-20040iRT133..GL¥2,830197809-198112

sub42603-22100¥3,640

main42638-14080iRT133,XT130..STD¥3,270198111-198301

W/ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-14100iRT132197908-198005

175SR 14,T/L

main42652-14110iTT132197809-198112

165SR14,T/L,STEEL

main42652-20130iRT132198005-198112

175SR 14,T/L

main42652-22090iRT130,132,TT13#197809-198205

6.45-13-4,BLACK,T/L

main42652-22240iTT132197809-198112

175SR14,T/L,STEEL

main42652-22280iRT133198008-198112

185/70SR14

main98011-56132iTT133197809-198112

5.60-13-4,BLACK,W/T

main98011-56133iTT133197809-198112

5.60-13-6,BLACK,W/T

main98021-64133iRT130,132,TT13#197809-198205

6.45-13-6,BLACK,W/T

main98511-56132iTT133197809-198112

5.60-13-4,BLACK,T/L

main98511-56133iRT130,TT132197809-198008

5.60-13-6,BLACK,T/L

main98511-64133iRT130,132,TT13#197809-198205

6.45-13-6,BLACK,T/L

main98921-64132iRT130,132,TT13#197809-198205

6.45-13-4,BLACK,W/T

main98938-65130iRT130,132,TT13#197809-198205

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iRT13#,TT13#¥390197809-198205

42621CAP, WHEEL

main42621-20170iTT133;RT130..PHL¥5,800197809-198008

main42621-20190iRT130,132,TT13#..GEN,PHL¥5,400198008-198205

main42621-22010iRT130,TT133..STD..GEN¥2,960197809-198112

W/4J-13

sub42621-22011¥2,960

42624RING, WHEEL CAP

main42624-14030iRT132..ARL¥13,300197908-198112

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050¥2,360

4260312070ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070¥2,530

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050¥2,650

4260320040ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20040¥2,830

4262120170CAP, WHEEL

main42621-20170¥5,800

4262120190CAP, WHEEL

main42621-20190¥5,400

4262122010CAP, WHEEL

main42621-22010¥2,960

4263814080

main42638-14080¥3,270

9331925012

main93319-25012¥130

14 parts on this diagram · 2 diagrams in section
