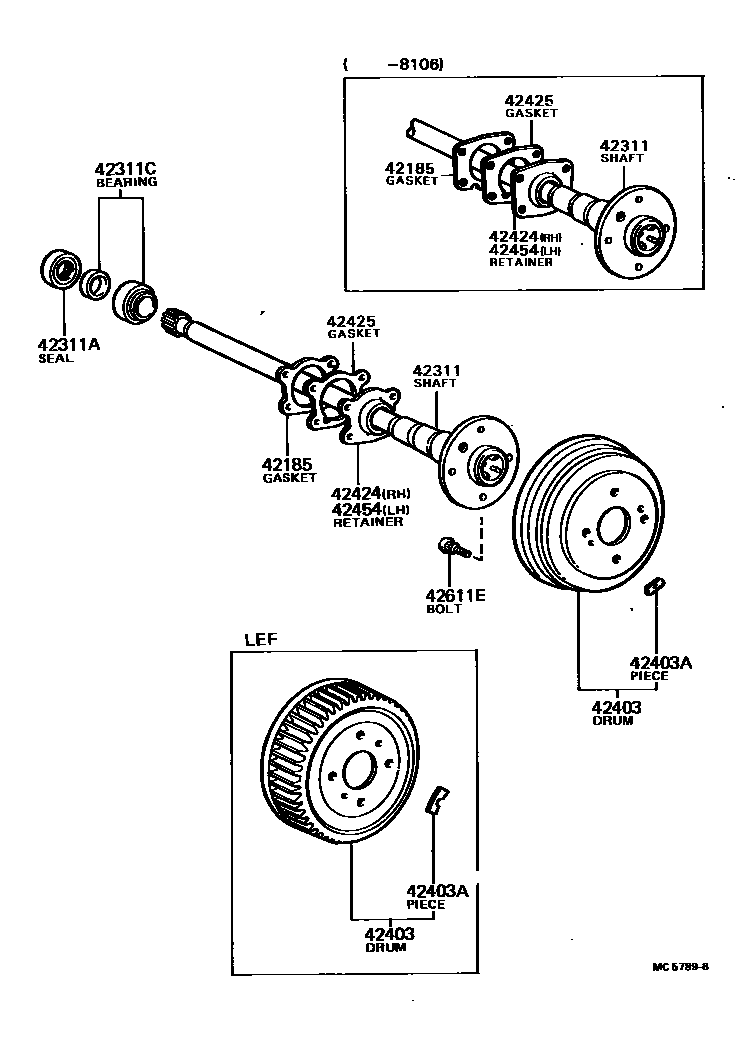

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-14020iRT130,132,TT133;RT133,TT132..RHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198106-198205

main42185-22020iRT13#,TT13#197809-198106

42311SHAFT, REAR AXLE

main42311-14080iRT13#,TT13#..HT,LB,SED197809-198106

sub42311-14140

main42311-14130iTT133..LHD..LEF198008-198108

TAXI SPEC,DIFF R=4,300

main42311-14140iRT133,TT132..RHD..LNK;RT130,132,TT133..LB,SED;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK198106-198205

main42311-22100iRT130,132,TT13#..WG197809-198205

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iRT133..GL;RT130,132,TT13#197809-198205

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iRT133..GL;RT130,132,TT13#197809-198205

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-198301

sub42431-14061

main42431-20060iRT132..LEF;RT130..SED..LEF..PHL197809-198008

sub42431-20031

main42431-20060iRT130,TT133..SED..LEF..GEN197809-198112

TAXI SPEC,DRUM W/COOLING FIN

sub42431-20031

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01045iRT132..LEF;RT130..SED..LEF..PHL197809-198008

10G,10G

main90937-01045iRT130,TT133..SED..LEF..GEN197809-198112

10G,10G,TAXI SPEC,W/COOLING PIN

main90937-01046iRT130..SED..LEF..PHL197809-198008

25G,25G

main90937-01046iRT130,TT133..SED..LEF..GEN197809-198112

25G,25G,TAXI SPEC,W/COOLING PIN

main90937-01047iRT130..SED..LEF..PHL197809-198008

40G,40G

main90937-01047iRT130,TT133..SED..LEF..GEN197809-198112

40G,40G,TAXI SPEC,W/COOLING PIN

main90937-01065iRT130..SED..LEF..GEN197809-197902

55G

main90937-01065iRT132..LEF;RT130..SED..LEF..PHL197809-197902

55G,TAXI SPEC,W/COOLING FIN

main90937-01117iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-198301

10G,10G

main90937-01118iRT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

20G,20G

main90937-01119iRT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN197809-198301

30G,30G

main90937-01195iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-198301

40G,40G

main90937-01196iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-198301

50G,50G

main90937-01197iRT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN197809-198301

60G,60G

main90937-01217iRT132..LEF;RT130..SED..LEF..PHL197902-198008

55G,55G

main90937-01217iRT130,TT133..SED..LEF..GEN197902-198112

55G,55G,TAXI SPEC,W/COOLING PIN

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iRT130,132,TT133;RT133,TT132..RHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198106-198205

main42424-21010iRT13#,TT13#197809-198106

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iRT130,132,TT133;RT133,TT132..RHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198106-198205

main42425-22020iRT13#,TT13#197809-198106

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iRT130,132,TT133;RT133,TT132..RHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F198106-198205

main42454-21010iRT13#,TT13#197809-198106

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iRT133..GL;RT130,132,TT13#197809-198205

*12-1.5PX36-23.5

sub90942-02047

10 parts on this diagram · 1 diagram in section
