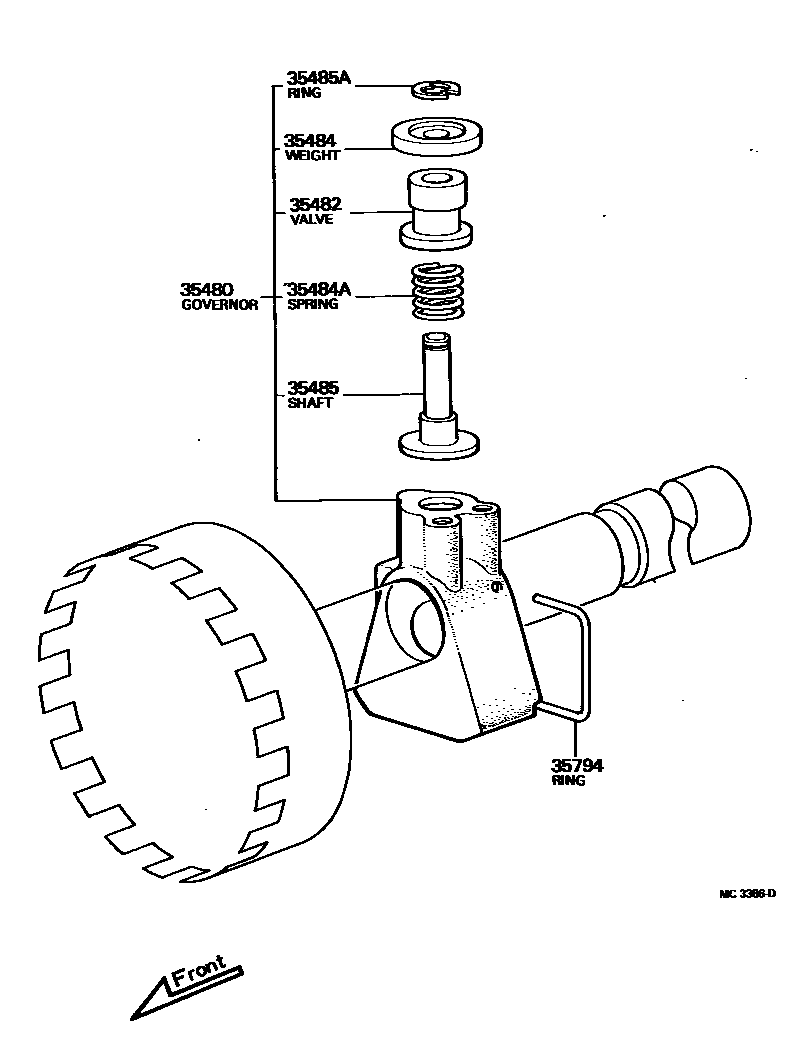

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-22020iRT132,TT132..3FC¥12,600197809-198112

sub35480-30040¥12,600

main35480-30040iRT133..4FC¥12,600198108-198112

sub35480-30060¥11,500

35482VALVE, GOVERNOR

main35482-22010iRT132,133,TT132..ATM¥1,950197809-198112

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iRT132,133,TT132..ATM¥750197809-198112

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iRT132,133,TT132..ATM¥200197809-198112

35485SHAFT, GOVERNOR VALVE

main35485-22010iRT132,133,TT132..ATM¥1,220197809-198112

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iRT132,133,TT132..ATM¥190197809-198112

35794RING, GOVERNOR RETAINING

main35794-22010iRT132,133,TT132..ATM¥550197809-198112

7 parts on this diagram · 1 diagram in section
