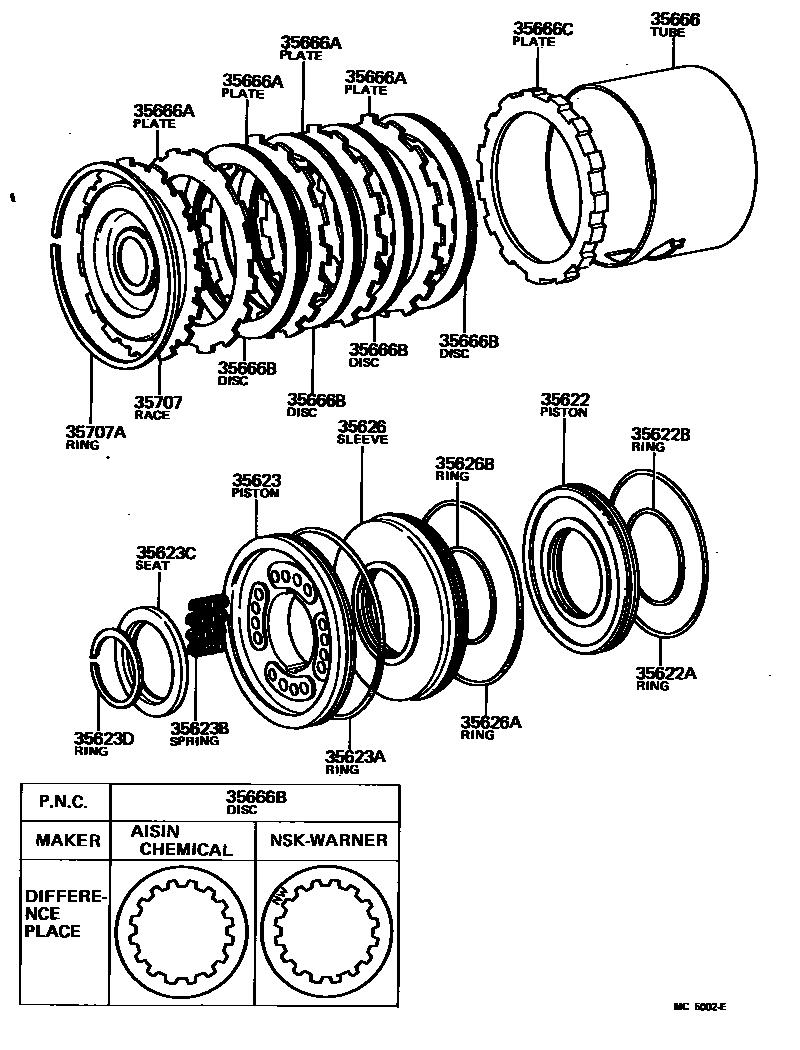

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35622PISTON, BRAKE, NO.2

main35622-22010iRT132,133,TT132..ATM197809-198112

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iRT132,133,TT132..ATM197809-198112

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iRT132,133,TT132..ATM197809-198112

35623PISTON, BRAKE, NO.3

main35623-22010iRT132,133,TT132..ATM197809-198112

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iRT132,133,TT132..ATM197809-198112

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671×16iRT132,133,TT132..ATM197809-198112

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iRT132,133,TT132..ATM197809-198112

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iRT132,133,TT132..ATM197809-198112

35626SLEEVE, BRAKE REACTION

main35626-22010iRT132,133,TT132..ATM197809-198112

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iRT132,133,TT132..ATM197809-198112

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iRT132,133,TT132..ATM197809-198112

sub90301-67005

35666TUBE, BRAKE APPLY

main35666-22010iRT132,133,TT132..ATM197809-198112

sub35666-26010

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22050×4iRT132,133,TT132..ATM197809-198112

sub35634-22080

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22030×4iRT132,TT132..3FC197809-198008

NSK-WARNER

sub35633-30030

main35633-22050×4iRT132,TT132..3FC197911-198112

AISIN CHEMICAL

sub35633-30030

main35633-30020×4iRT133..4FC198108-198112

sub35633-30030

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iRT132,133,TT132..ATM197809-198112

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-22010iRT132,TT132..3FC197809-198009

main35707-30010iRT132,133,TT132..ATM198009-198112

sub35707-30020

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iRT132,133,TT132..ATM197809-198112

17 parts on this diagram · 1 diagram in section
