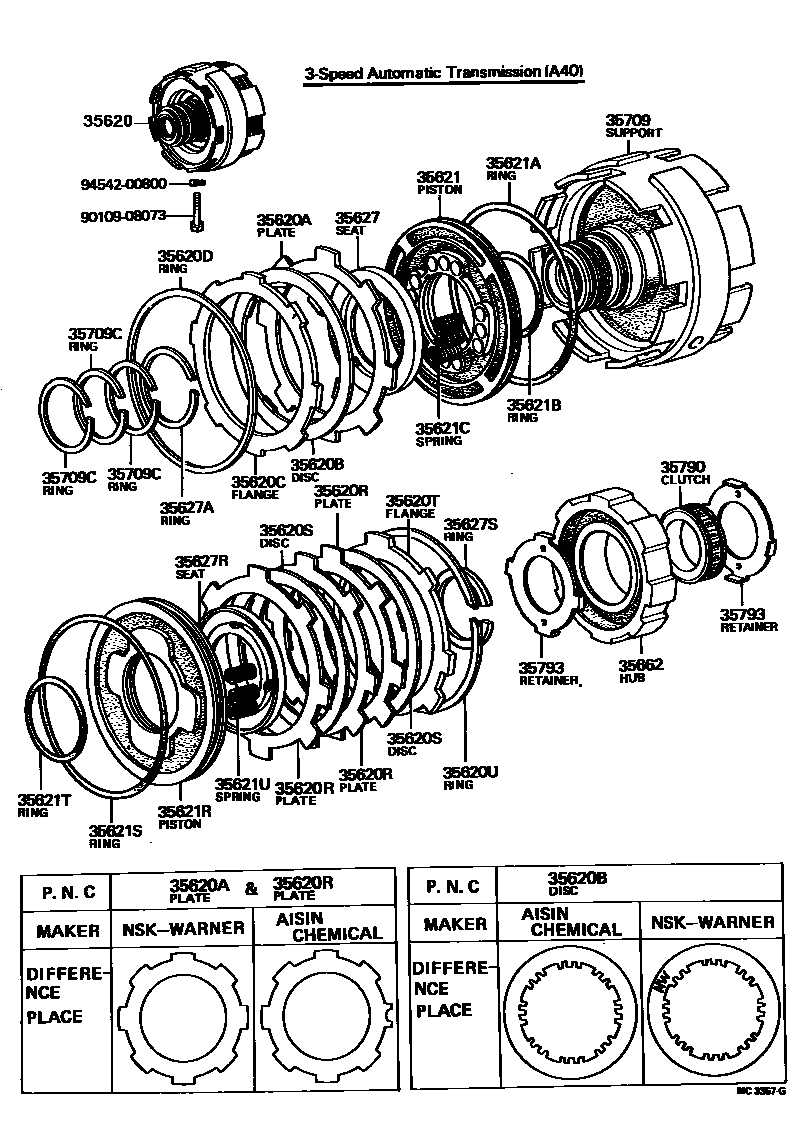

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35620SUPPORT ASSY, CENTER
main35648-30010
main35675-22010
main35677-22020
main35677-22030
main35677-22040
main35634-22060
main35634-22090
main90521-99139
35620APLATE, CLUTCH (FOR BRAKE)
NSK-WARNER,T=1.8
T=2.0
35620BDISC, CLUTCH (FOR BRAKE)
35620CFLANGE, CLUTCH (FOR BRAKE)
sub35675-22140
35620DRING (FOR BRAKE)
35620RPLATE, CLUTCH (FOR REAR BRAKE)
NSK-WARNER
35620SDISC, CLUTCH (FOR REAR BRAKE)
sub35677-30020
35620TFLANGE, CLUTCH (FOR REAR BRAKE)
sub35675-22140
35620URING (FOR REAR BRAKE)
35621BRING, O (FOR BRAKE PISTON INNER)
35621CSPRING (FOR BRAKE PISTON RETURN)
35621RPISTON, BRAKE (FOR REAR BRAKE)
sub35624-22010
35621SRING (FOR REAR BRAKE PISTON OUTER)
35621TRING (FOR REAR BRAKE PISTON INNER)
35621USPRING (FOR REAR BRAKE PISTON RETURN)
35627SEAT, BRAKE RETURN SPRING
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)
35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
35662HUB, BRAKE
sub35662-30010
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35790CLUTCH ASSY, 1 WAY
sub35791-30020
35793RETAINER, 1 WAY CLUTCH
9010908073
main90109-08073
9454200800
main94542-00800
28 parts on this diagram · 2 diagrams in section
