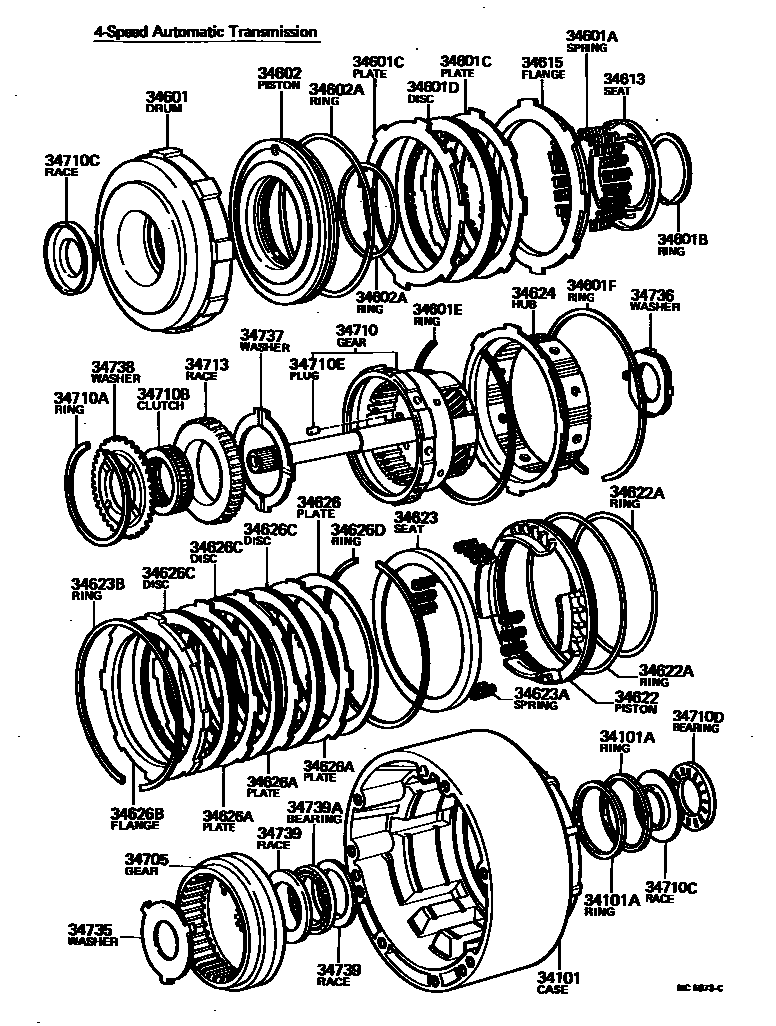

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
sub34101-30042
34101ARING, OIL SEAL (FOR OVERDRIVE CASE)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)
34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)
34601CPLATE, CLUTCH (FOR OVERDRIVE)
34601DDISC, CLUTCH (FOR OVERDRIVE)
sub35677-30030
34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)
34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
ID=56
ID=117
34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING
34615FLANGE, OVERDRIVE CLUTCH
T=4.0
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
OD=108.5,ID=106
OD=125,ID=122.5
34623SEAT, OVERDRIVE BRAKE RETURN SPRING
34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)
34624HUB, OVERDRIVE BRAKE
34626PLATE, OVERDRIVE BRAKE CUSHION
34626APLATE, CLUTCH (FOR OVERDRIVE)
34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)
sub35675-22140
34626CDISC, CLUTCH (FOR OVERDRIVE)
sub35677-30030
34626DRING, HOLE SNAP (FOR OVERDRIVE)
34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING
sub34705-14010
34710GEAR ASSY, OVERDRIVE PLANETARY
34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)
34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
RR
FR
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3
34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4
34739RACE, THRUST BEARING(FOR OVERDRIVE)
FR
RR
34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)
38 parts on this diagram · 1 diagram in section
