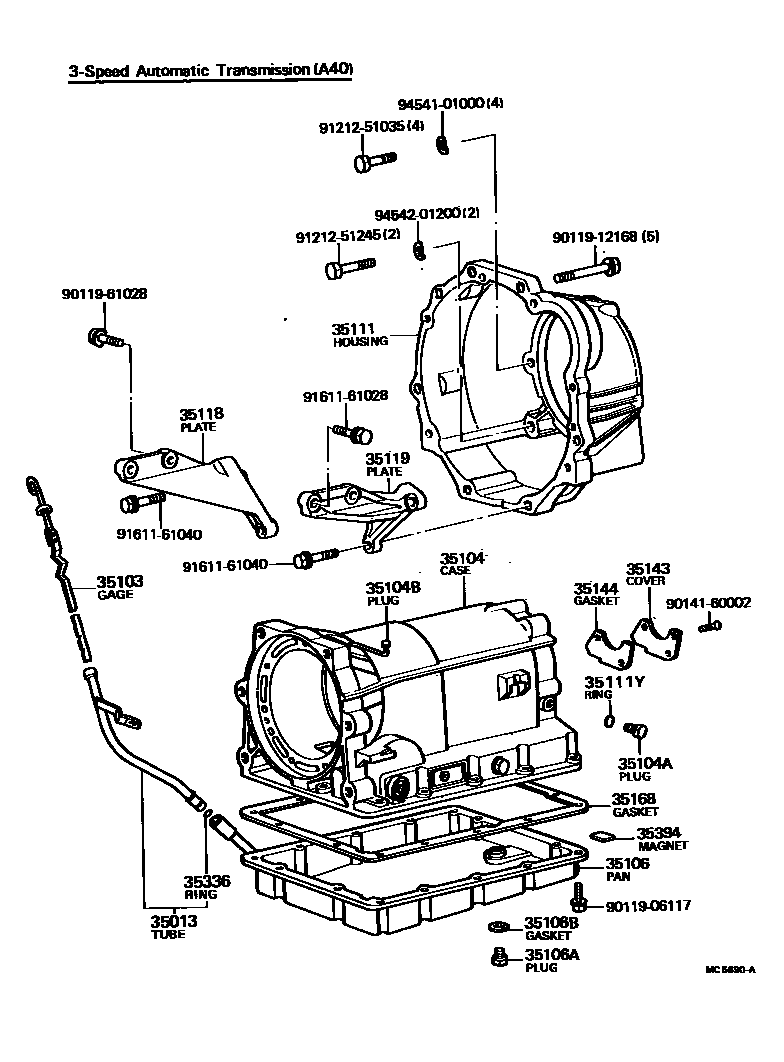

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14071iTT132..3FC¥4,090197809-198009

sub35013-20110¥3,710

main35013-14091iRT132..3FC¥1,880198003-198112

main35013-20110iTT132..3FC¥3,710198009-198112

sub35013-14110

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iRT132..3FC¥1,320198003-198108

sub35103-14023¥1,180

main35103-20040iTT132..3FC¥1,190197809-198112

main35103-20080iRT133..4FC¥1,590198108-198112

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22022iTT132..3FC¥76,000197809-197907

sub35104-22023¥72,500

main35104-22023iRT132,TT132..3FC¥72,500197907-198012

sub35104-22024¥72,700

main35104-22024iRT132,TT132..3FC¥72,700198012-198106

sub35104-22025¥84,100

main35104-22025iRT132,TT132..3FC¥84,100198106-198112

sub35104-22050

main35104-30082iRT133..4FC¥79,400198108-198112

sub35104-30140¥72,000

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iRT132,133,TT132..ATM¥120198106-198112

main90341-08079iRT132,TT132..3FC197809-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iRT132,TT132..3FC¥530197809-198112

sub90930-03069¥540

main90930-03069iRT133..4FC¥540198108-198112

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iRT132,TT132..3FC¥5,000197809-198112

sub35106-22021¥4,950

main35106-22031iRT133..4FC¥7,100198108-198112

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iRT132,133,TT132..ATM¥260197811-198112

L=8.3-9.0

sub90341-10011¥100

main90341-10078iTT132..3FC¥240197809-197811

L=8.0

sub90341-10003¥260

sub35178-30010¥190

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iRT132,133,TT132..ATM¥190197811-198112

T=2.0,OD=16.7

main90202-10110iTT132..3FC¥210197809-197811

T=0.8,OD=22.0

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12020iTT132..3FC¥36,700197809-198008

sub35111-14050

main35111-14050iTT132..3FC198008-198112

main35111-20070iRT133..4FC¥44,600198108-198112

sub35111-20071¥46,700

main35111-22031iRT132..3FC198003-198108

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iRT132,133,TT132..ATM¥170197809-198112

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTT132..3FC¥3,640197809-198112

main33118-22030iRT132..3FC¥2,650198003-198112

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTT132..3FC¥3,640197809-198112

main33119-22021iRT132..3FC¥2,550198003-198112

sub33119-22022¥2,520

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRT132,133,TT132..ATM¥520197809-198112

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iRT132,133,TT132..ATM¥330197809-198112

sub35144-28010¥220

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iRT132,TT132..3FC¥680197809-198008

sub35168-22011¥520

main35168-22011iRT132,133,TT132..ATM¥520198008-198112

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iRT132,133,TT132..ATM¥140197809-198112

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iRT132,133,TT132..ATM¥360197809-198112

9011906117

main90119-06117¥220

9011912168

main90119-12168¥170

9011961028

main90119-61028

9014160002

main90141-60002¥160

9121251035

main91212-51035¥170

9121251245

main91212-51245¥240

9161161028

main91611-61028¥140

9161161040

main91611-61040¥130

9454101000

main94541-01000¥170

9454201200

main94542-01200¥70

27 parts on this diagram · 3 diagrams in section
