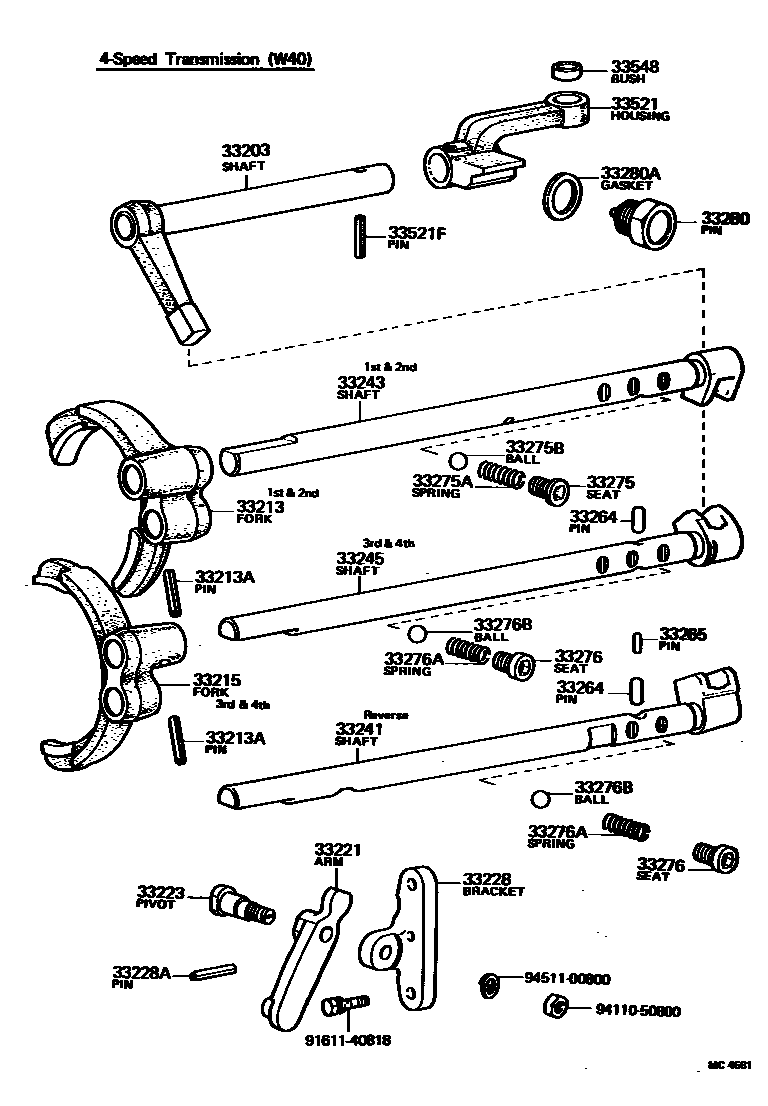

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0003 1 0004 1 0006 1 0008 1 0010 1

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20080iRT13#,TT132..4F¥4,370197809-198108

main33203-20092iRT132,TT132..5F¥3,900197809-198105

sub33251-20040¥4,730

main33251-20040iRT132,TT132..RHD..5F;TT132..(HT,LB)..LHD..5F..GEN¥4,730198105-198108

33213FORK, 1ST & 2ND SHIFT

main33212-14010iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥3,940197908-198112

main33212-22020iRT133..5F¥3,200198008-198301

sub33212-30050¥2,500

main33212-31010iRT130,132¥4,790197809-198205

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iRT13#,TT13#..MTM..(ARL,GEN,PHL)¥110197809-198205

main90254-05016iRT133..5F¥140198008-198301

33215FORK, 3RD & 4TH SHIFT

main33213-14010iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥3,940197908-198112

main33213-22030iTT132..MTM..EUR¥3,200198008-198301

sub33213-22040¥3,200

main33213-31010iRT130,132¥4,330197809-198205

33221ARM, REVERSE SHIFT

main33221-22010iTT132..MTM..EUR¥2,800198008-198301

main33221-31010iRT13#,TT132..4F..(GEN,PHL)197809-198108

33223PIVOT, SHIFT ARM

main33223-31010iRT13#,TT132..4F..(GEN,PHL)197809-198108

33228BRACKET, REVERSE SHIFT ARM

main33228-31010iRT13#,TT132..4F197809-198108

33228APIN, REVERSE SHIFT ARM BRACKET

main90254-05001iRT13#,TT132..4F¥110197809-198108

33241SHAFT, REVERSE SHIFT FORK

main33241-22010iTT132..DLX..EUR¥3,790198008-198108

main33241-31010iRT13#,TT132..4F..(GEN,PHL)197809-198108

main33244-14050iTT133¥2,000197908-198112

main33244-14060iTT133..4F¥2,620198106-198112

main33244-20011iTT132..5F197809-197905

sub33244-20902¥4,840

main33244-20902iRT132,TT132..5F¥4,840197905-198108

main33244-22020iRT133..5F¥2,710198008-198301

main33244-30030iRT130,132198108-198205

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-14030iTT133¥3,540197908-198112

main33242-20042iRT132,TT132..5F¥4,460197809-198205

main33242-22020iTT132..MTM..EUR¥3,830198008-198301

main33242-31012iRT13#,TT132..4F..(GEN,PHL)¥3,720197809-198108

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-14030iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥3,890197908-198112

main33243-20031iRT130,132¥3,780197809-198205

main33243-22030iRT133..5F198008-198301

sub33240-22020¥6,400

sub33214-22030¥5,100

main33243-31011iRT13#,TT132..4F¥3,720197809-198108

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRT133..5F¥230198008-198301

main33264-31010iRT13#,TT132..MTM¥200197809-198205

main90250-06188iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥210197908-198112

L=10.8,OD=6

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iRT133..5F¥200198008-198301

L=11.2,OD=4,L=11.2

main33265-31010iRT13#,TT132..4F..(GEN,PHL)¥230197809-198108

main33266-22010iTT132..MTM..EUR¥220198008-198301

L=13.6,OD=6,L=13.6

main90250-06007iRT133..5F¥110198008-198301

L=8.6,OD=6,L=8.6

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12010iTT133¥190197908-198112

main90341-10004iRT130,132¥330197809-198205

main90341-12004iRT133..5F¥140198008-198301

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13001iRT130,132¥160197809-198205

L=16.5

main90501-13004iRT133..5F¥180198008-198301

L=20.65

sub90501-14123¥60

main90501-14237iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥190197908-198112

L=16.1

33275BBALL, SHAFT DETENT

main90360-08009iRT13#,TT132..MTM..(ARL,GEN,PHL)¥160197809-198205

main90360-10003iTT132..MTM..EUR¥100197908-198301

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10064iRT13#,TT132..MTM¥370197809-198205

main90341-12005iRT133..5F¥370198008-198301

sub90341-12018¥250

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001iRT13#,TT132..MTM..(ARL,GEN,PHL)¥160197809-198205

main90501-13004iTT132..MTM..EUR¥180198008-198301

sub90501-14123¥60

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iRT130,132¥160197809-198205

main90360-10003iRT133..5F¥100198008-198301

33280PIN ASSY, REVERSE RESTRICT

main33280-12040iTT133¥1,680198106-198112

RH

main33280-12050iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥1,680198106-198112

LH

main33280-20010iTT133¥1,520197908-198106

RH

main33280-20020iTT133¥1,520197908-198106

LH

sub33280-12050¥1,680

main33280-22020iRT133..5F¥1,970198008-198301

RH

main33280-22030iTT132..5F..EUR¥1,970198008-198301

LH

main33280-31010iRT13#,TT132..4F..(GEN,PHL)¥1,270197809-198108

main90341-18009iTT132..DLX..EUR¥930198008-198108

LH

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007iTT132..MTM..EUR¥210198008-198301

sub90430-18008¥110

main90430-18165iRT13#,TT132..4F¥260197809-198108

main90430-22002iTT133¥280197908-198112

33521HOUSING, SHIFT LEVER

main33502-22180iRT133..5F¥5,400198102-198301

main33502-22190iTT132..DLX..EUR¥5,400198102-198108

main33521-14060iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥2,230197908-198112

main33521-20120iRT13#,TT132..4F¥2,370197809-198108

main33521-20140iRT130,132¥3,020197809-198205

sub33521-20141¥3,000

main33521-22100iTT132..5F..EUR¥5,800198008-198102

sub33502-22180¥5,400

main33521-22110iTT132..DLX..EUR¥6,100198008-198102

sub33502-22190¥5,400

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90113-08001iRT133..5F¥260198008-198301

main90254-05001iTT133¥110197908-198112

main90254-05016iRT13#,TT132..MTM¥140197809-198205

33548BUSH, SHIFT LEVER

main33548-14010iTT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F¥330198008-198112

main33548-31010iRT13#,TT13#..MTM¥270197809-198301

9161140818

main91611-40818¥130

9411050800

main94110-50800¥80

9451100800

main94511-00800¥100

27 parts on this diagram · 6 diagrams in section
