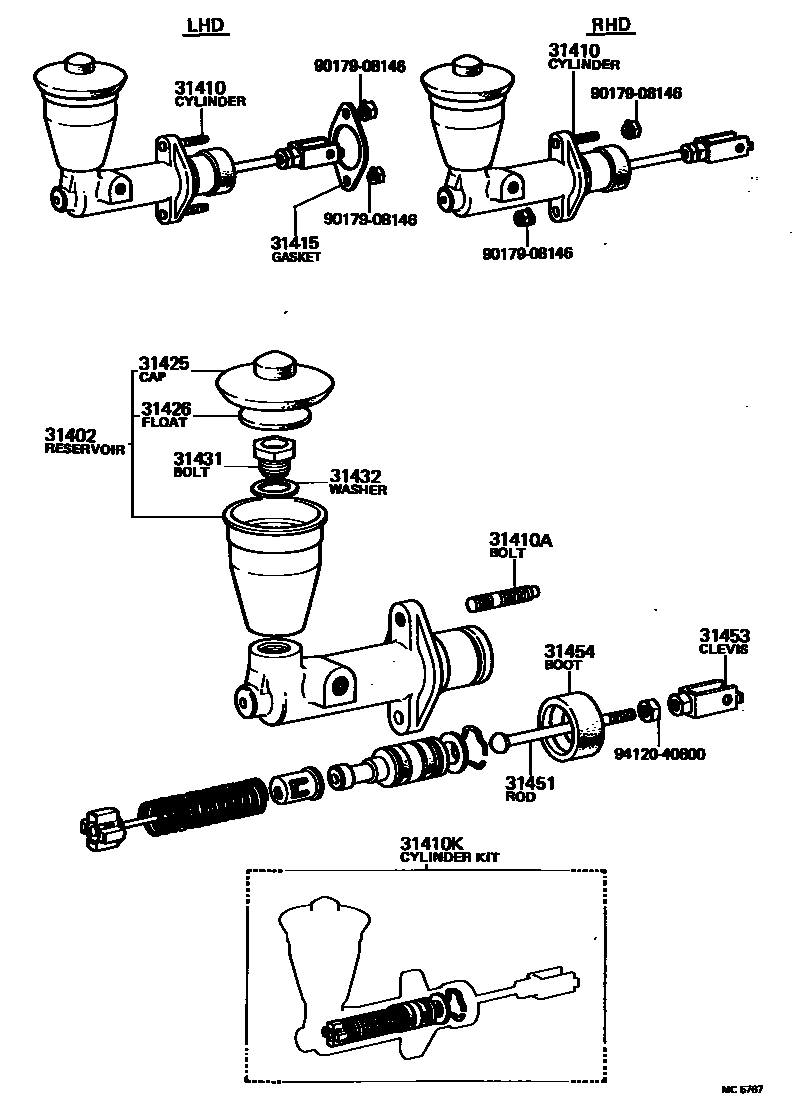

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20020iRT13#,TT13#..MTM197809-198301

sub31402-30030

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20140iRT132,TT13#..RHD..MTM197809-198301

sub31410-20141

main31410-20150iRT130,132,TT13#..LHD..MTM197809-198205

sub31410-20151

main31410-20180iRT130..RHD197809-197908

sub31410-20181

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08018iRT13#,TT132..MTM197809-197810

main90116-08079iRT13#,TT13#..MTM197810-198301

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iRT13#,TT13#..MTM197809-198301

sub04311-12021

31415GASKET, CLUTCH MASTER CYLINDER

main31415-14010iRT130,132,TT13#..LHD..MTM197809-198205

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12030iRT13#,TT132..MTM197809-197904

sub47230-20040

main47230-20040iRT13#,TT13#..MTM197904-198301

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRT13#,TT13#..MTM197809-198301

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iRT13#,TT13#..MTM197809-198301

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRT13#,TT13#..MTM197809-198301

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iRT13#,TT13#..MTM197809-198301

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iRT13#,TT13#..MTM197809-198301

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRT13#,TT13#..MTM197809-198301

9017908146

main90179-08146

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
