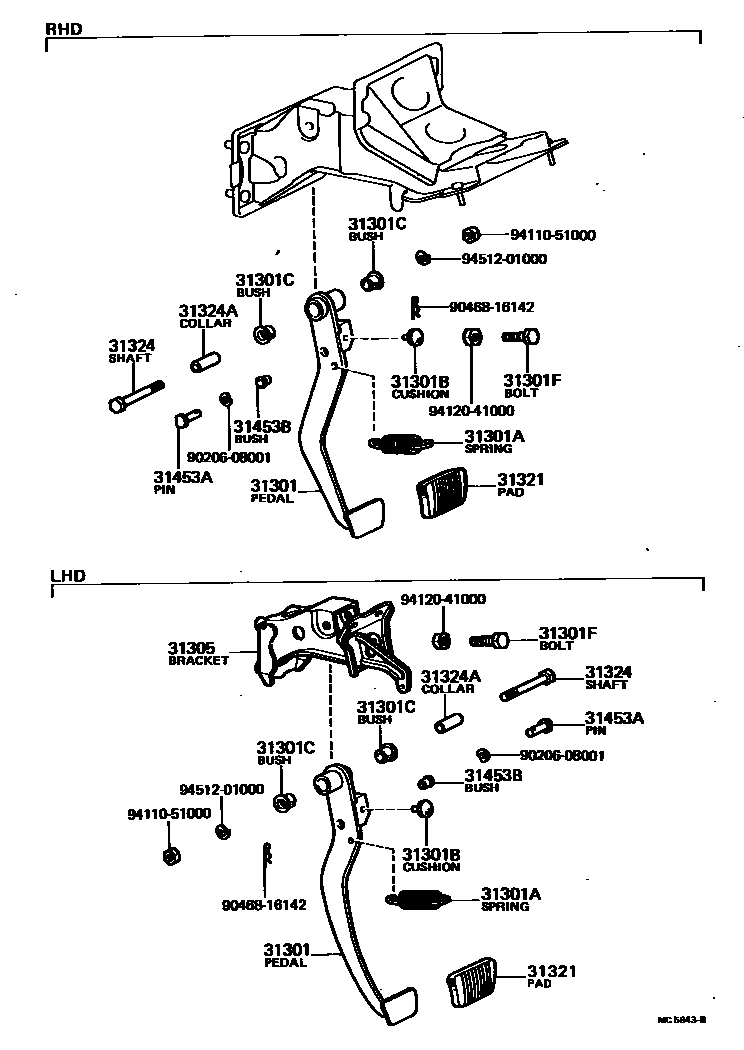

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20140iRT13#,TT132..LHD..MTM197809-197908

main31301-20141iRT130,132,TT13#..LHD..MTM197908-198205

main31301-20150iRT133..5F;RT130,132,TT13#,XT130..RHD..MTM197809-198301

31301ASPRING(FOR CLUTCH PEDAL)

main90506-16022iRT13#,TT132..MTM197809-197810

main90507-16002iRT13#,TT13#,XT130..MTM197810-198301

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iRT13#,TT13#,XT130..MTM197809-198301

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192iRT13#,TT13#,XT130..MTM197809-198301

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRT13#,TT13#,XT130..MTM197809-198301

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-20040iRT13#,TT13#..LHD..MTM197809-198008

sub55107-20041

main55107-20041iRT130,132,TT13#..LHD..MTM198008-198205

31321PAD, CLUTCH PEDAL

main31321-14010iRT130,132,TT13#..LHD..MTM197809-198205

main31321-20020iRT133..5F;RT130,132,TT13#,XT130..RHD..MTM197809-198301

31324SHAFT, CLUTCH PEDAL

main90101-10039iRT13#,TT13#,XT130..MTM197809-198301

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iRT13#,TT13#,XT130..MTM197809-198301

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iTT132..LHD..4F;TT132..RHD..MTM;RT13#,TT133,XT130..MTM;TT132..(HT,LB)..LHD..5F197809-198301

L=23.5

main90240-08041iRT13#,TT13#,XT130..MTM198008-198108

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iRT13#,TT13#,XT130..MTM197809-198301

9020608001

main90206-08001

9046816142

main90468-16142

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
