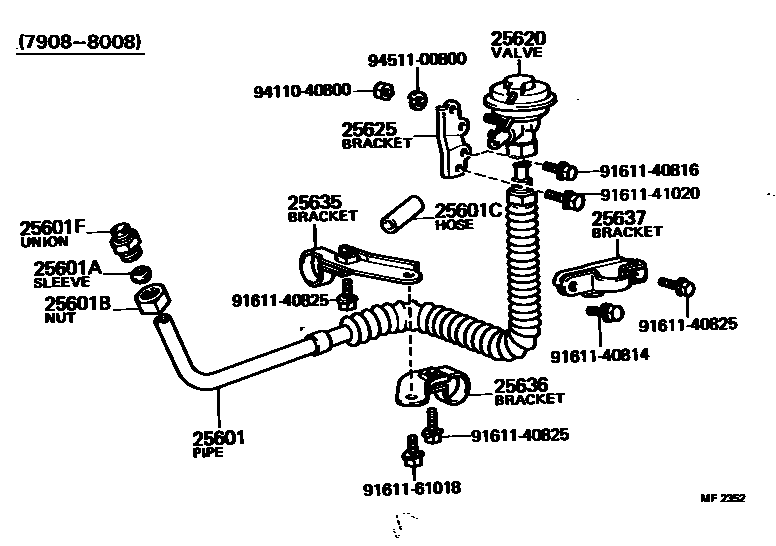

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-34020i18RC..RT132198008-198104

sub25601-34021

main25601-34021i18RC..RT132198104-198108

main25601-34040i18RC..RT132197908-198008

sub25601-34041

main25601-38010i21RC..RT133198108-198301

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16044i21RC..RT133198108-198301

main90410-18038i18RC..RT132197908-198108

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22081i21RC..RT133198108-198301

main90402-26074i18RC..RT132197908-198108

sub90402-26002

25601CHOSE(FOR EGR PIPE, NO.1)

main90445-20016i18RC..RT132197908-198108

25601FUNION(FOR EGR PIPE, NO.1)

main90404-26284i18RC..RT132197908-198108

25620VALVE ASSY, EGR

main25620-32011i1X..XT130..MTM198101-198301

main25620-32021i1X..XT130..3FC198101-198301

main25620-34150i18RC..RT132..3FC198003-198108

main25620-34170i18RC..RT132..5F197908-198108

main25620-37040i21RC..RT133198108-198301

sub25620-37050

25625BRACKET, EGR VALVE

main25625-34012i18RC..RT132197908-198108

25635BRACKET, EGR PIPE, NO.1

main25635-34010i18RC..RT132198008-198108

main25635-34021i18RC..RT132197908-198008

25636BRACKET, EGR PIPE, NO.2

main25636-34010i18RC..RT132198008-198108

main25636-34020i18RC..RT132197908-198008

25637BRACKET, EGR PIPE, NO.3

main25637-34010i18RC..RT132198008-198108

main25637-34021i18RC..RT132197908-198008

9161140814

main91611-40814

9161140816

main91611-40816

9161140825

main91611-40825

9161141020

main91611-41020

9161161018

main91611-61018

9411040800

main94110-40800

9451100800

main94511-00800

17 parts on this diagram · 4 diagrams in section
