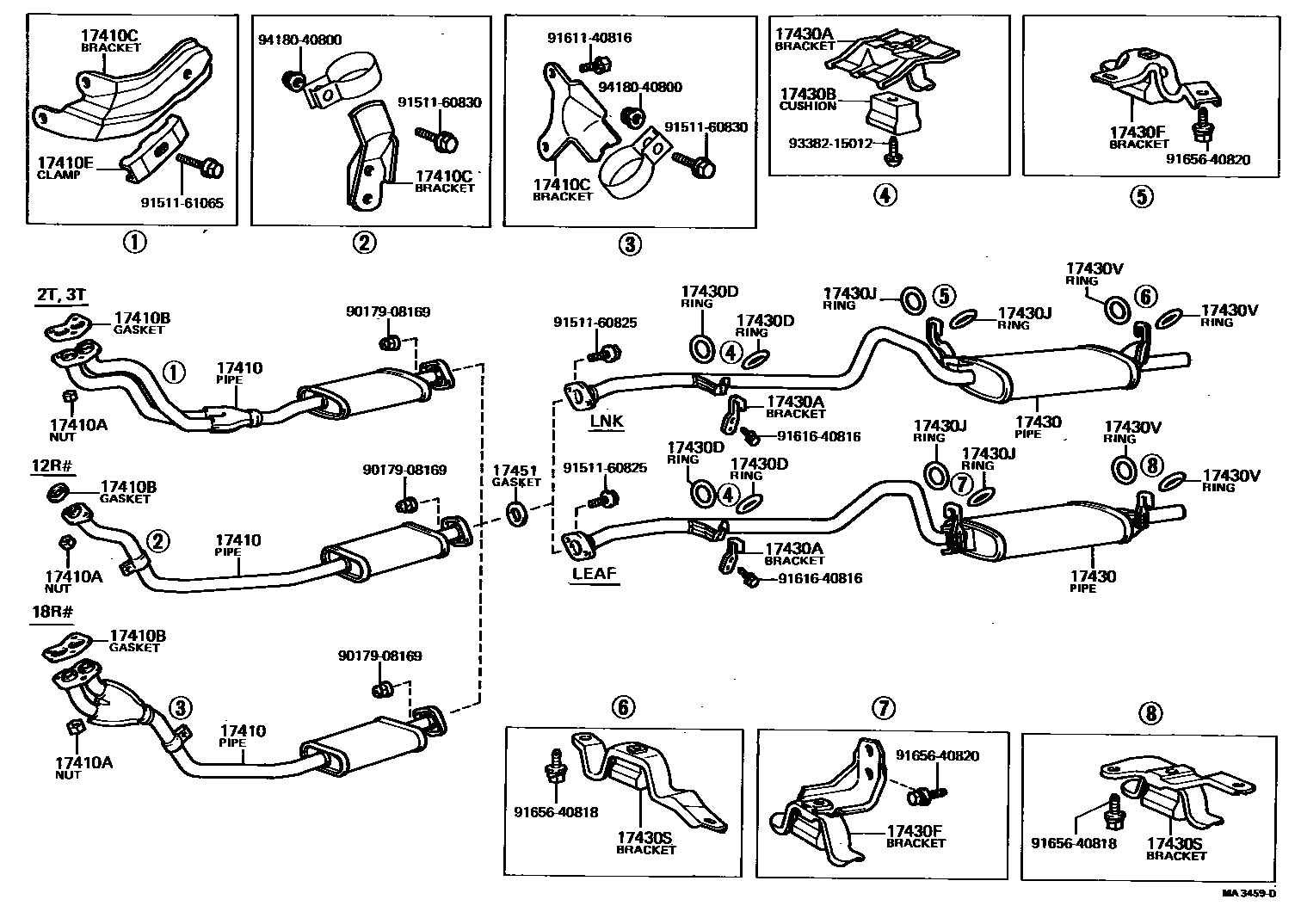

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-26230i3T..TT132..(HT,LB)..5F198008-198112

TYPE 1

main17410-26230i2T,3T..TT13#197809-198008

main17410-28100i3T..TT132..LB,SED;3T..TT132..(HT,WG)..LHD;3T..TT132..RHD..3FC..LEF;3T..TT132..RHD..STD..LEF198008-198112

TYPE 2

main17410-31270i12R#..RT130197809-198112

main17410-34350i18R..RT132197809-197908

sub17410-34370

main17410-34370i18R..RT132197908-198205

main17410-34440i18RC..RT132198008-198108

main17410-37100i21RC..RT133198108-198301

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010i18R,3T..RT132,TT132197809-197811

main90179-10028i12R#..RT130197811-198301

17410BGASKET, EXHAUST PIPE

main17451-41020i18R,2T,3T..RT132,TT13#197809-198205

sub17451-28010

main90917-06004i12R#..RT130197809-198112

sub90917-06039

main90917-06005i18RC..RT132198008-198108

sub90917-06042

main90917-06012i21RC..RT133198108-198301

sub90917-06045

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17570-28020i3T..TT132..RHD..STD..LEF;3T..TT132..(HT,WG)..LHD..MTM;3T..TT132..(LB,SED)..MTM..GEN198008-198108

main17570-28030i3T..TT132..MTM..EUR198008-198108

main17571-26010i3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F;3T..TT132..(LB,SED,WG)..RHD..DLX198108-198112

TYPE 2

main17571-26010i3T..TT132..3FC198008-198108

main17571-26110i3T..TT132..(SED,WG)..RHD..DLX198008-198112

TYPE 1

main17571-26110i2T,3T..TT13#197809-198008

main17571-31080i12R#..RT130197809-198112

main17571-34031i18RC..RT132198008-198108

main17571-34060i18R#..RT132197809-198205

main17571-38041i21RC..RT133198108-198301

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i2T,3T..TT13#197809-198112

17430PIPE ASSY, EXHAUST, TAIL

main17430-26410i12R#,18R,2T,3T..RT13#,TT13#..WG197809-197911

main17430-26411i12RM,18R,2T,3T..RT130,132,TT13#..WG197911-198205

main17430-26620i2T..TT133..4F..DLX;2T..TT133..LHD..5F198008-198112

sub17430-28120

main17430-26630i2T..TT133..SED..LEF198008-198108

main17430-28020i3T..TT132..LB,SED197809-198008

main17430-28120i3T..TT132..HT..LHD;18RC,3T..RT132,TT132..LB,SED198008-198301

main17430-31190i12R#,18R,2T..RT13#,TT133..SED..LEF197809-198205

main17430-34370i12R#,2T..RT130,TT133..LNK197809-198008

sub17430-26620

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-26050i21RC,12R#,18R,3T..RT13#,TT132..HT,LB,SED197809-198301

FLOOR PAN SIDE

main17506-38050i12R#,18R,2T,3T..RT130,132,TT13#..WG197809-198205

FLOOR PAN SIDE

main17561-26080i12R#,18R#,2T,3T..RT13#,TT13#197809-198301

PIPE SIDE

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i21RC,12R#,18R#,2T,3T..RT13#,TT13#..HT,LB,SED197809-198301

sub17591-36011

sub90159-50207

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-26050i3T..TT132..LNK197809-198301

main17507-26060i12R#,18R,2T,3T..RT130,132,TT13#..WG197809-198205

main17507-44010i12R#,18R,2T..RT130,132,TT133..SED..LEF197809-198205

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-34030i3T..TT132..LNK197809-198301

main17508-36021i12R#,18R,2T,3T..RT13#,TT13#..WG197809-197911

main17508-38050i12RM,18R,2T,3T..RT130,132,TT13#..WG197911-198205

main17508-44010i12R#,18R,2T..RT130,132,TT133..SED..LEF197809-198205

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

17451GASKET, EXHAUST PIPE

main90917-06004i21RC,12R#,18R#,2T,3T..RT13#,TT13#197809-198301

sub90917-06039

9017908169

main90179-08169

9151160825

main91511-60825

9151160830

main91511-60830

9151161065

main91511-61065

9161140816

main91611-40816

9161640816

main91616-40816

9165640818

main91656-40818

9165640820

main91656-40820

9338215012

main93382-15012

9418040800

main94180-40800

9418048800

main94180-48800

25 parts on this diagram · 5 diagrams in section
