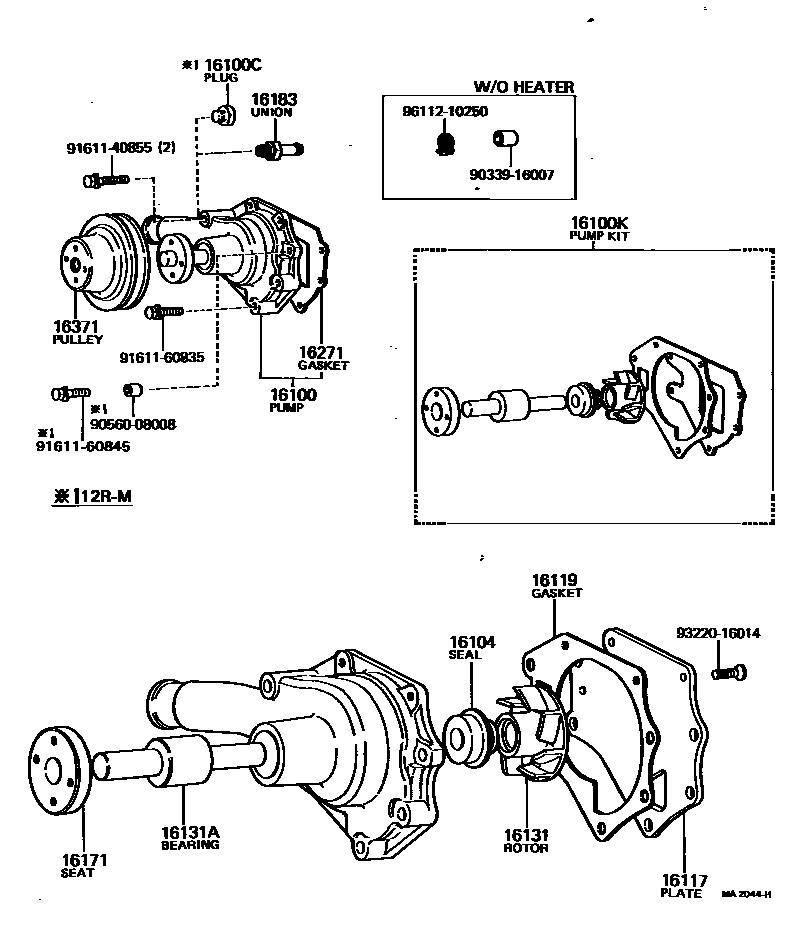

WATER PUMP

0001 1 0002 1 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-28020i2T,3T..TT13#197809-198112

main16100-39116i12R#..RT130197809-198112

main16100-39236i18R#..RT132197809-198205

sub16100-39237

16100CPLUG, W/HEAD TAPER SCREW

main90345-54002i12RM..RT130197809-197901

main90345-54004i12RM..RT130197901-198101

sub90345-54005

main90345-54005i12RM..RT130198101-198112

16100KPUMP KIT, WATER

main04161-28010i2T,3T..TT13#197809-198112

sub04161-28011

main04161-31023i12R#..RT130197809-198112

main04161-35020i21RC..RT133198108-198301

sub04161-35021

16104SEAL SET, WATER PUMP

main16104-41110i18R#..RT132197809-197911

sub16104-41111

main16104-41111i21RC,12R#..RT130,133197809-198301

sub16104-15020

16117PLATE, WATER PUMP

main16117-31031i12R#..RT130197809-198112

16119GASKET, WATER PUMP BODY

main16124-31031i12R#..RT130197809-198112

sub16124-31032

16131ROTOR, WATER PUMP

main16131-26010i2T,3T..TT13#197809-198112

main16131-31031i12R#..RT130197809-198112

main16131-35010i21RC..RT133198108-198301

main16131-41110i18R#..RT132197809-198205

sub16131-41130

16131ABEARING, WATER PUMP

main16140-38011i2T,3T..TT13#197809-198112

sub90369-30066

main90369-30003i12R#..RT130197809-198112

WPB,16124 BR-1-R

sub90369-30022

main90369-30005i18R#..RT132197809-198205

WPB 16112R-4RS

sub90029-36837

main90369-30011i21RC..RT133198108-198301

sub90029-36816

16171SEAT, WATER PUMP PULLEY

main16171-24030i18R#..RT132197809-198205

main16171-24031i12R#..RT130197809-198112

main16171-26021i2T,3T..TT13#197809-198112

main16171-38022i21RC..RT133198108-198301

16183UNION, WATER PUMP

main87251-30200i12R..RT130197809-197908

16271GASKET, WATER PUMP

main16129-25010i3T..TT132197809-197904

sub16129-25011

main16129-25011i2T,3T..TT13#197904-198112

sub16129-25012

main16271-31010i12R#..RT130197809-198112

main16271-33010i18R#..RT132197809-198205

sub16271-33011

16371PULLEY, FAN

main16173-28010i2T,3T..TT13#197809-198112

main16173-34100i18R#..RT132197809-198205

main16173-38011i21RC..RT133198108-198301

main16371-31022i12R#..RT130197809-198112

main16371-32011i1X..XT130198101-198301

9033916007

main90339-16007

9056008008

main90560-08008

9161140855

main91611-40855

9161160835

main91611-60835

9161160845

main91611-60845

9322016014

main93220-16014

9611210250

main96112-10250

19 parts on this diagram · 4 diagrams in section
