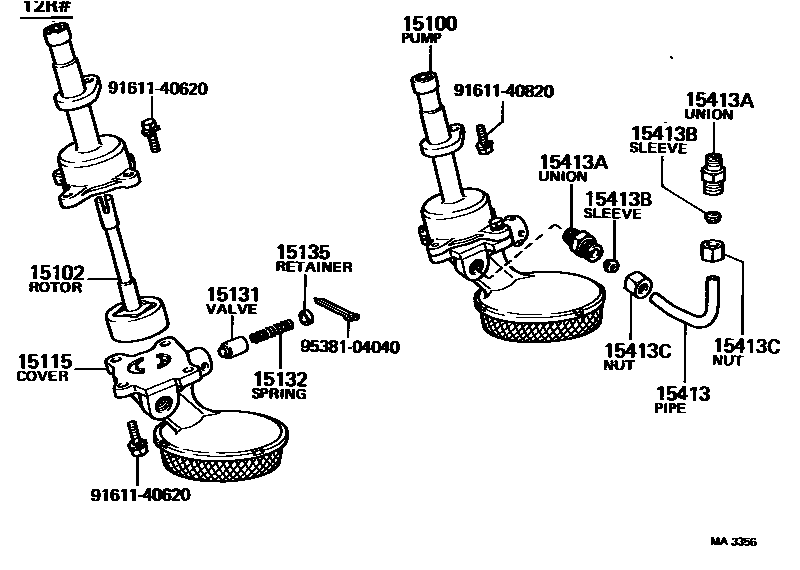

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-25020i2T,3T..TT13#197809-198112

main15100-31040i12R#..RT130197809-198112

main15100-33011i18R#..RT132197809-198108

sub15100-33012

main15100-33012i18R..RT132198108-198205

main15100-38021i21RC..RT133198108-198301

sub15100-35010

15102ROTOR SET, OIL PUMP

main15101-31010i12R#..RT130197809-198112

main15102-25010i2T,3T..TT13#197809-198112

main15102-36010i18R#..RT132197809-198108

main15102-36011i18R..RT132198108-198205

15115COVER, OIL PUMP

main15012-25020i2T,3T..TT13#197809-198112

main15012-31040i12R#..RT130197809-198112

main15115-38022i21RC..RT133198108-198301

sub15115-35010

15131VALVE, OIL PUMP RELIEF

main15131-22010i3T..TT132197809-197901

main15131-24010i12R#..RT130197809-198112

main15131-25010i2T,3T..TT13#197901-198112

sub15131-22010

main15131-38030i21RC..RT133198108-198301

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i12R#..RT130197809-198205

main15132-46010i21RC..RT133198108-198301

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-13010i12R#..RT130197809-198112

15413PIPE, OIL PUMP OUTLET

main15413-31010i12R#..RT130197809-198112

15413AUNION(FOR OIL PUMP OUTLET PIPE)

main90404-16008i12R#..RT130197809-198112

15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)

main90410-11005i12R#..RT130197809-198112

15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)

main90402-16042i12R#..RT130197809-198112

9161140620

main91611-40620

9161140820

main91611-40820

9538104040

main95381-04040

13 parts on this diagram · 4 diagrams in section
