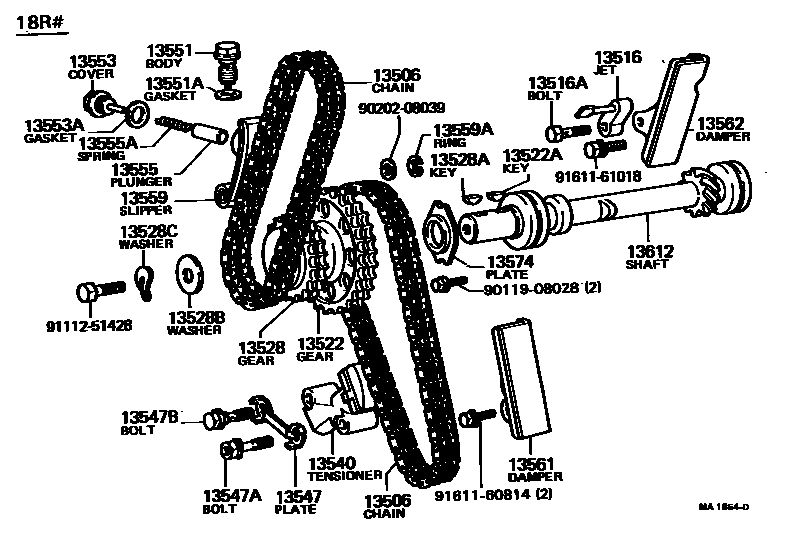

TIMING CHAIN
13516JET, OIL
13516ABOLT UNION(FOR OIL JET)
13522GEAR, PUMP DRIVE SHAFT
N=36
13522AKEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
13528GEAR, CAMSHAFT DRIVE
N=24
13528AKEY, WOODRUFF(FOR CAMSHAFT DRIVE GEAR)
13528BWASHER, PLATE(FOR CAMSHAFT DRIVE GEAR SET)
13528CWASHER, WAVE(FOR CAMSHAFT DRIVE GEAR SET)
13547PLATE, TENSIONER BOLT LOCK, NO.1
13547ABOLT(FOR TENSIONER LOCK PLATE SET)
13547BBOLT, UNION(FOR TENSIONER LOCK PLATE)
13551BODY, CHAIN TENSIONER, NO.2
13551AGASKET(FOR CHAIN TENSIONER BODY)
13553COVER, CHAIN TENSIONER DUST
13553AGASKET(FOR CHAIN TENSIONER DUST COVER)
13555ASPRING(FOR CHAIN TENSIONER PLUNGER)
13559SLIPPER, CHAIN TENSIONER
13559ARING, E(FOR CHAIN TENSIONER SLIPPER)
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13574PLATE, PUMP DRIVE SHAFT
13612SHAFT, PUMP DRIVE
9011908028
main90119-08028
9020208039
main90202-08039
9111251428
main91112-51428
9161160814
main91611-60814
9161161018
main91611-61018
30 parts on this diagram · 3 diagrams in section
