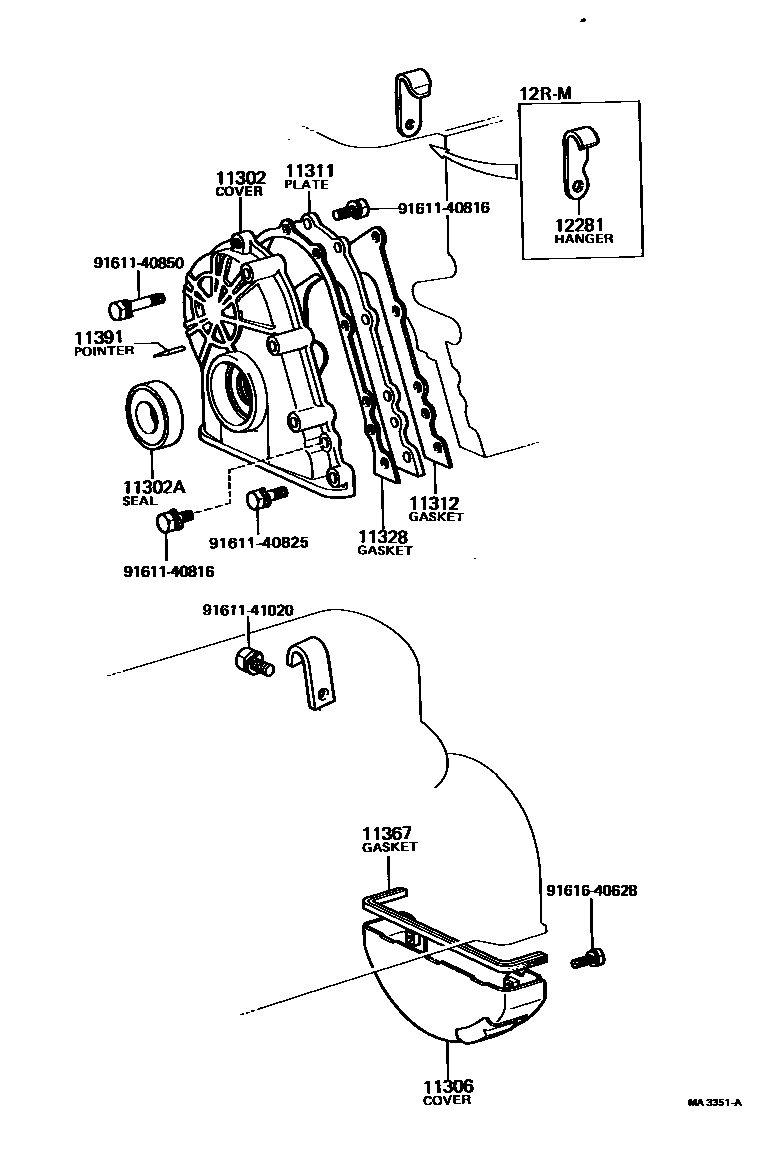

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-38010i21RC..RT133198108-198301

main11321-28010i2T,3T..TT13#197809-198112

main11321-31040i12R#..RT130197809-198112

main11321-34010i18R#..RT132197809-198205

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38013i2T,3T..TT13#197809-198112

main90311-45002i21RC..RT133198108-198301

main90311-45069i18R#..RT132197809-198205

sub90311-45002

11306COVER SUB-ASSY, FLYWHEEL HOUSING UNDER

main11306-31021i12R#..RT130197809-198112

11311PLATE, FRONT END

main11311-31010i12R#..RT130197809-198112

main11311-33011i18R#..RT132197809-198205

11312GASKET, FRONT END PLATE

main11312-31010i12R#..RT130197809-198112

main11312-33012i18R#..RT132197809-197912

sub11312-33014

main11312-33014i18R#..RT132197912-198205

sub11312-33015

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-25010i3T..TT132197809-197904

sub11328-25011

main11328-25011i2T,3T..TT13#197904-198112

sub11328-25012

main11328-31010i12R#..RT130197809-198112

main11328-33014i18R#..RT132197809-197912

sub11328-33016

main11328-33016i18R#..RT132197912-198205

sub11328-33017

main11328-35010i21RC..RT133198209-198301

sub11328-35011

main11328-38020i21RC..RT133198108-198209

sub11328-35011

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-31020i12R#..RT130197809-198112

11391POINTER, TIMING

main11391-31021i12R#..RT130197809-198112

main11391-40010i18R#..RT132197809-198205

12281HANGER, ENGINE, NO.1

main12281-26010i2T,3T..TT13#197809-198112

main12281-31020i12RM..RT130197809-198112

sub12281-54010

main12281-38020i21RC..RT133198108-198301

main12281-42010i12R..RT130197809-197908

sub12281-31040

main12282-36010i18R#..RT132197809-198205

9161140816

main91611-40816

9161140825

main91611-40825

9161140850

main91611-40850

9161141020

main91611-41020

9161640628

main91616-40628

14 parts on this diagram · 4 diagrams in section
